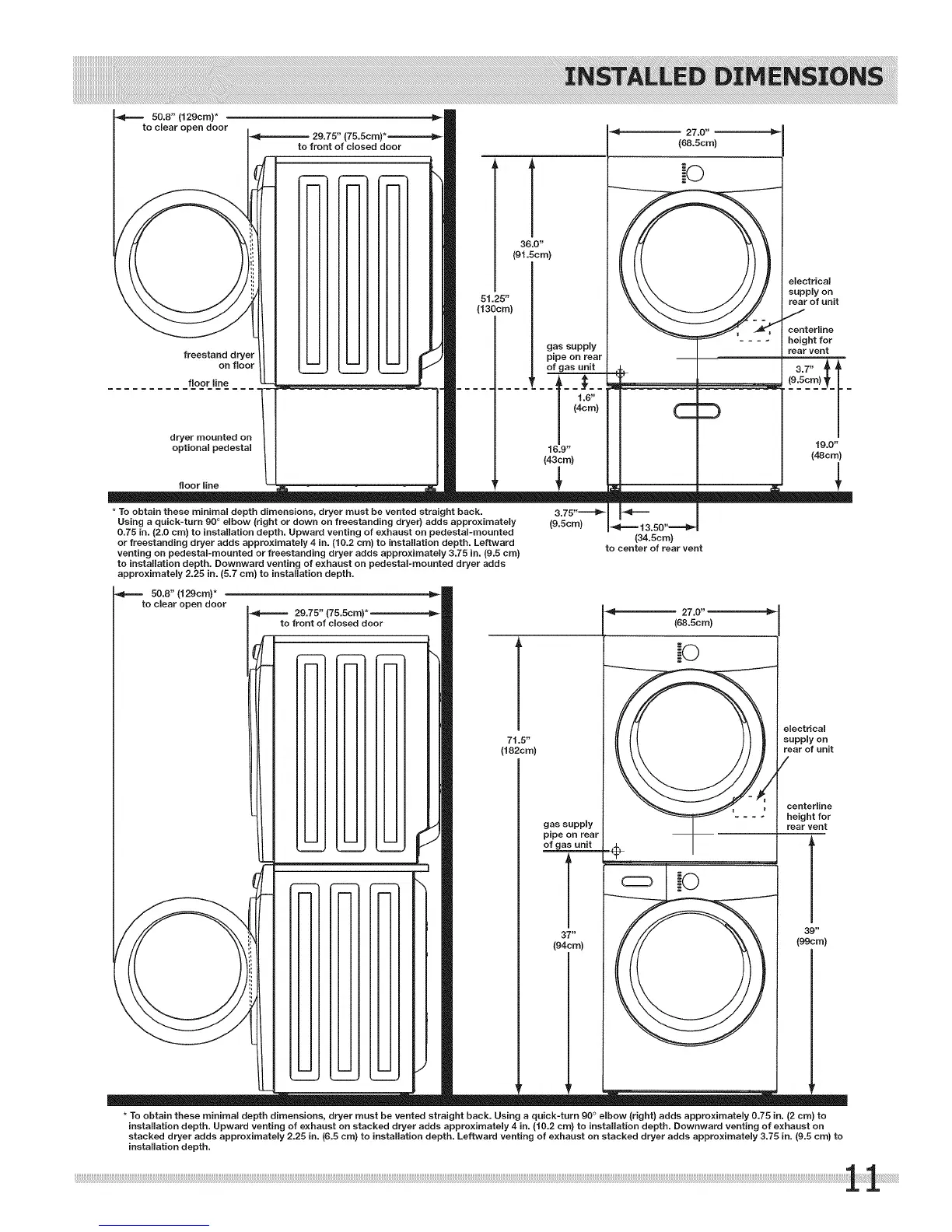

50.8" (129cm)*

to clear open door

freeatand dryer

on floor

dryer mounted on

optional pedestal

(75.5cm)* ========_

to front of closed door

51.25"

(130cm)

35.0"

(91.5cm)

* To obtain these minimal depth dimensions, dryer must be vented straight back.

Using a quick-turn 90 ° elbow (right or down on freestanding dryer} adds approximately

0.75 in. (2.0 cm} to installation depth. Upward venting of exhaust on pedestal-mounted

or freestanding dryer adds approximately 4 in. (10.2 cm) to installation depth. Leftward

venting on pedestal-mounted or freestanding dryer adds approximately 3.75 in. (9.5 cm}

to installation depth. Downward venting of exhaust on pedestal-mounted dryer adds

approximately 2.25 in. (5.7 cm) to installation depth.

50.8" (129cm} *

to clear open door

_q_===== 29.75" (75.5cm)*_

to front of closed door

71.5"

(182cm)

27.0"

(68.5cm)

gas supply

pipe on rear

of gas unit

'==i ='

16,9"

(43cm)

3.75"_ _l====

(9.5cm}

(34.5cm)

to center of rear vent

electrical

supply on

rear of unit

height for

rear vent

19.0"

(48cm)

gas supply

pipe on

of gas unit

37"

(g4cm)

27.0'

(Sa.5cm)

e_ectrical

supply on

rear of unit

centerline

.... height for

rear vent

(99cm)

* To obtain these minimal depth dimensions, dryer must be vented straight back. Using a quick-turn 90 ° elbow (right) adds approximately 0.75 in. (2 cm) to

installation depth. Upward venting of exhaust on stacked dryer adds approximately 4 in. (10.2 cm} to installation depth. Downward venting of exhaust on

stacked dryer adds approximately 2.25 in. (6.5 cm} to installation depth. Leftward venting of exhaust on stacked dryer adds approximately 3.75 in. (9.5 cm) to

installation depth.
