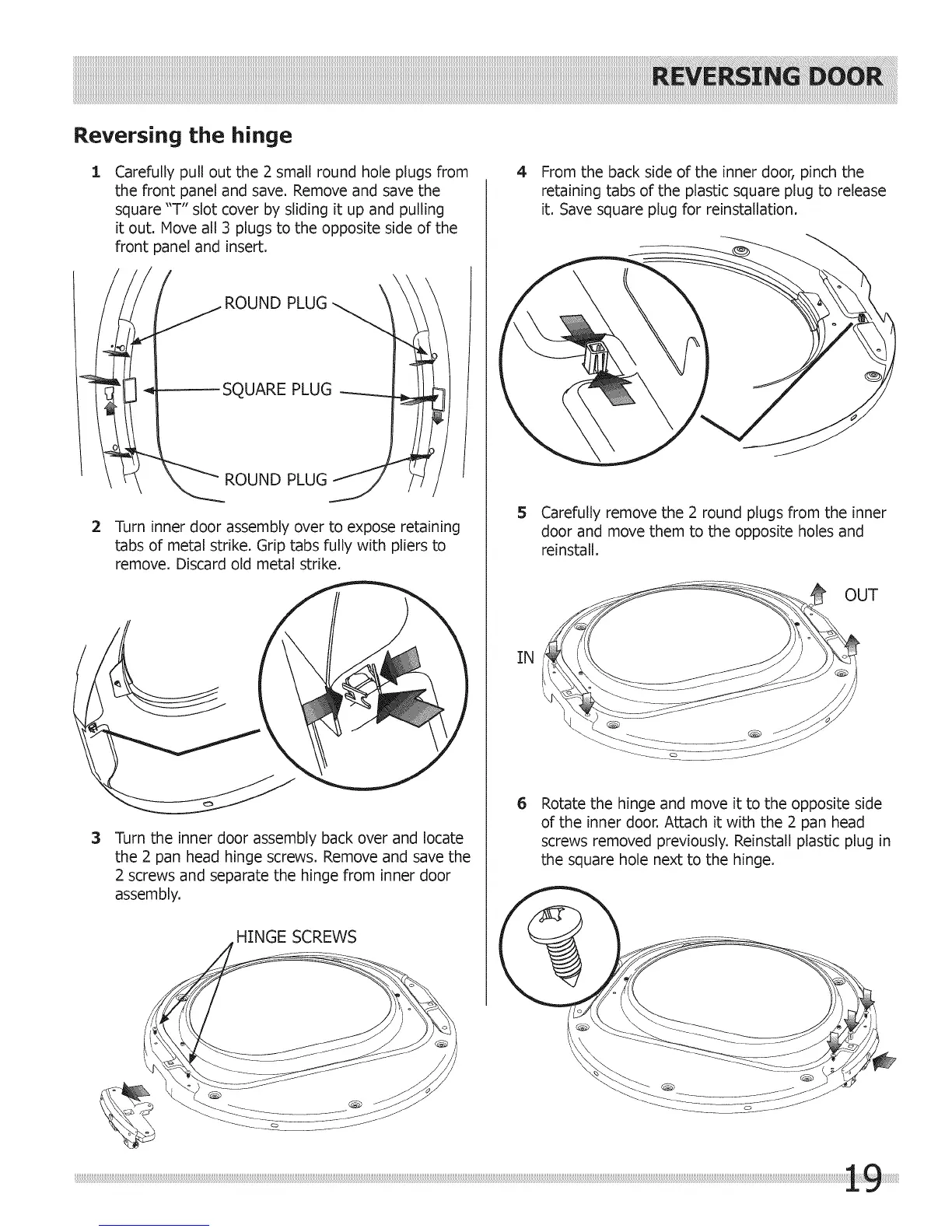

Reversing the hinge
1
Carefully pull out the 2 small round hole plugs from
the front panel and save, Remove and save the
square "T" slot cover by sliding it up and pulling
it out. Move all 3 plugs to the opposite side of the
front panel and insert.
\
ROUND PLUG
ROUND PLUG_
1
2 Turn tuner door assembly over to expose retaining
tabs of metal strike. Grip tabs fully with pliers to
remove. Discard old metal strike.
3
Turn the inner door assembly back over and locate
the 2 pan head hinge screws. Remove and save the
2 screws and separate the hinge from inner door
assembly.
4
IN
From the back side of the inner door, pinch the
retaining tabs of the plastic square plug to release
it. Save square plug for reinstallation.
Carefully remove the 2 round plugs from the inner
door and move them to the opposite holes and
reinstall.
OUT
Rotate the hinge and move it to the opposite side
of the inner door. Attach it with the 2 pan head
screws removed previously. Reinstall plastic plug in
the square hole next to the hinge.
