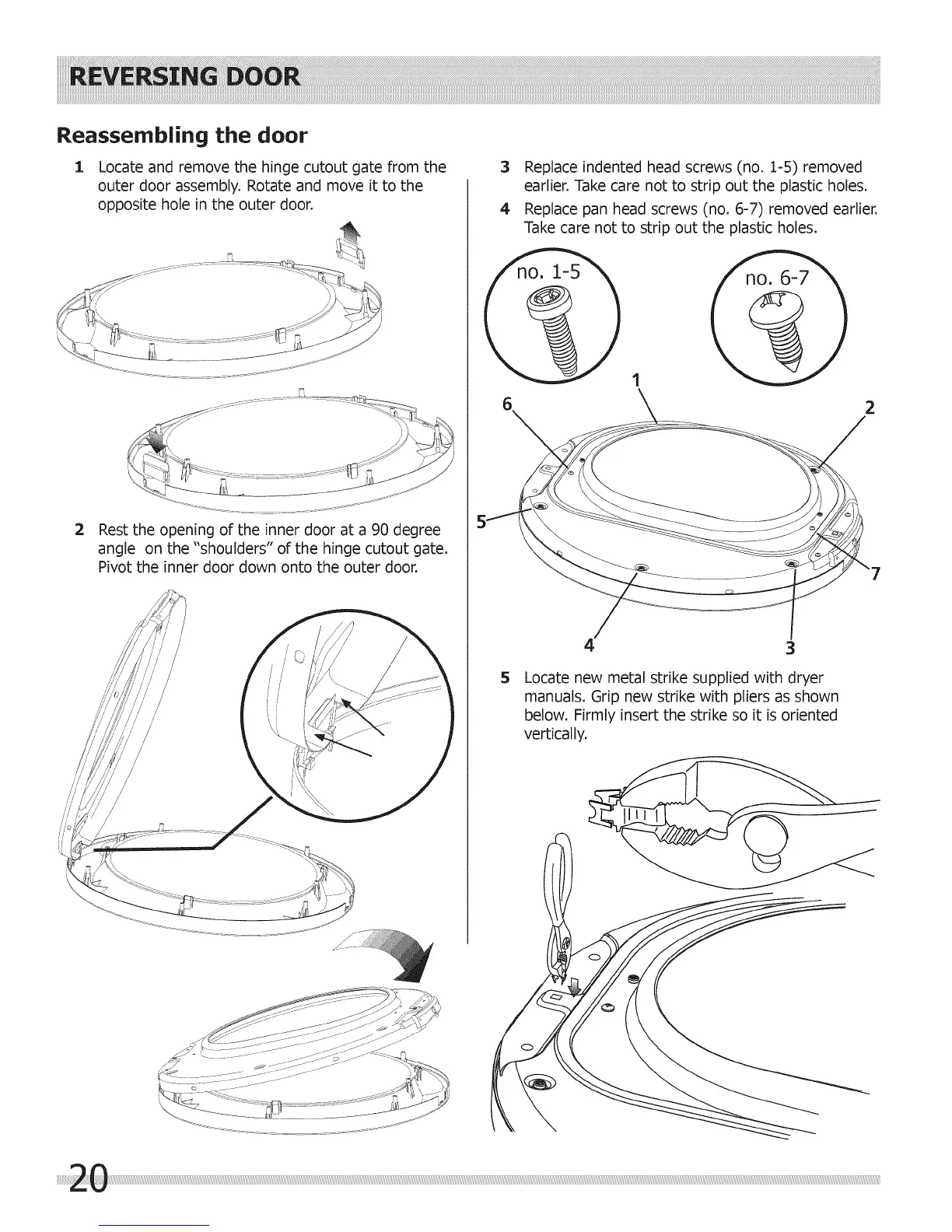

Reassembling the door
:[ Locate and remove the hinge cutout gate from the
outer door assembly. Rotate and move it to the
opposite hole in the outer door.
2 Rest the opening of the inner door at a 90 degree
angle on the "shoulders" of the hinge cutout gate.
Pivot the inner door down onto the outer door.
3 Replace indented head screws (no. 1-5)removed
earlier. Take care not to strip out the plastic holes.
4 Replace pan head screws (no. 6-7) removed earlier.
Take care not to strip out the plastic holes.
5
2
Locate new metal strike supplied with dryer
manuals. Grip new strike with pliers as shown
below. Firmly insert the strike so it is oriented
vertically.
