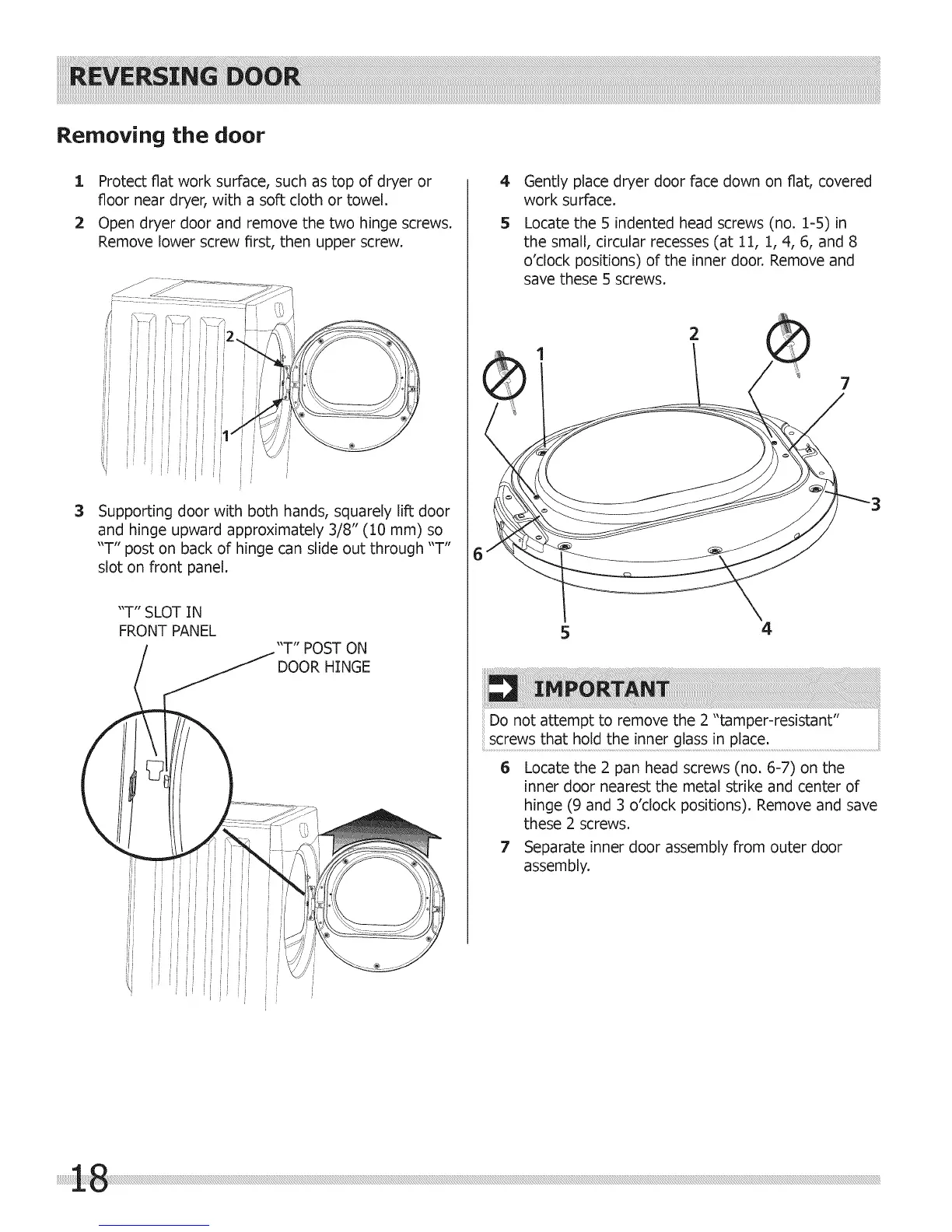

Removing the door
1 Protect fiat work surface, such as top of dryer or
floor near dryer, with a soft cloth or towel.
2 Open dryer door and remove the two hinge screws.
Remove lower screw first, then upper screw.
Supporting door with both hands, squarely lift door
and hinge upward approximately 3/8" (10 mm) so
"T" post on back of hinge can slide out through "T"
slot on front panel.
"T" SLOT IN
FRONT PANEL
"T" POST ON
DOOR HINGE
4
5
Gently place dryer door face down on fiat, covered
work surface.
Locate the 5 indented head screws (no. 1-5) in
the small, circular recesses (at 11, 1, 4, 6, and 8
o'clock positions) of the inner door. Remove and
save these 5 screws.
2
7
5 4
Do not attempt to remove the 2 "tamper-resistant"
screws that hold the inner glass !n place:....................................................................
6 Locate the 2 pan head screws (no. 6=7) on the
inner door nearest the metal strike and center of
hinge (9 and 3 o'clock positions). Remove and save
these 2 screws.
7 Separate inner door assembly from outer door
assembly.
