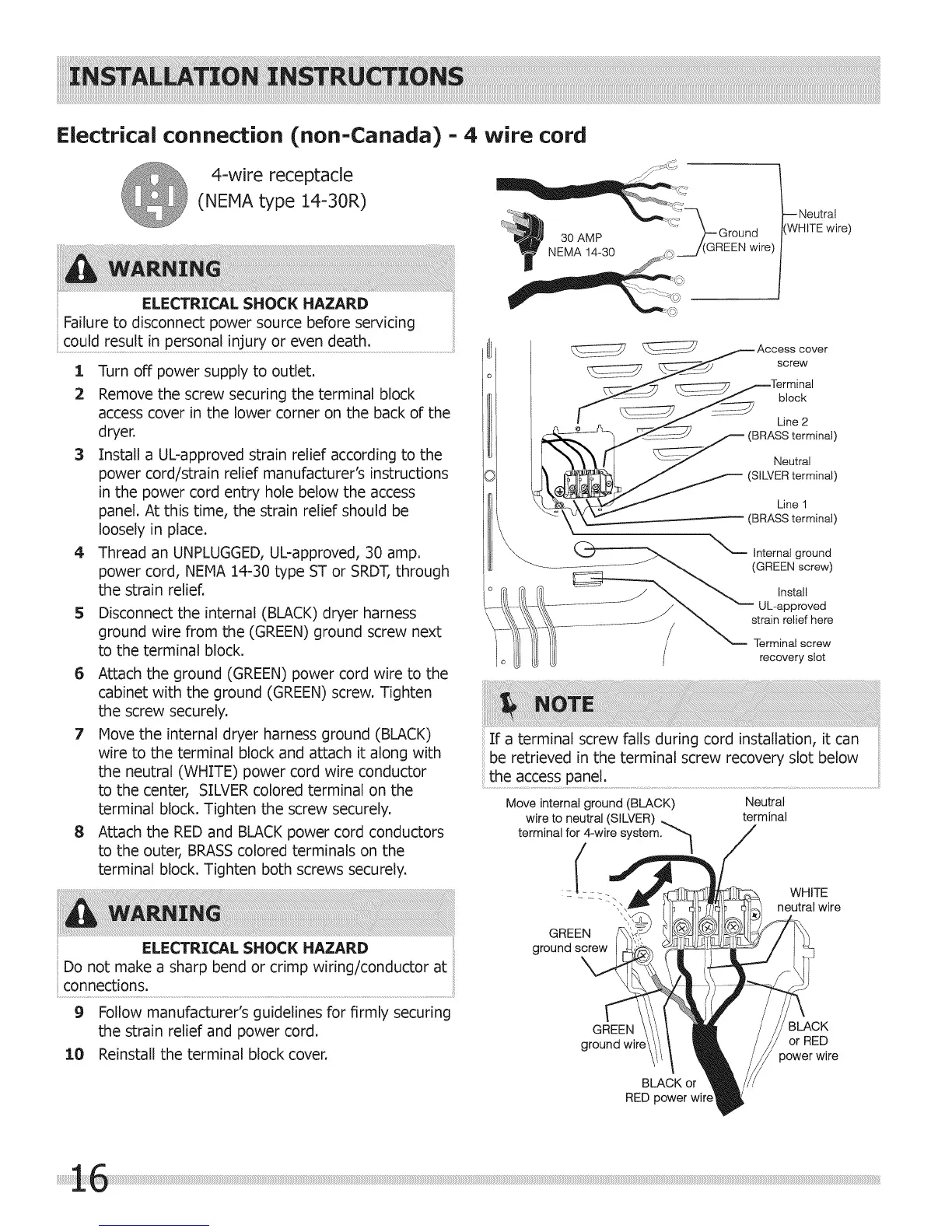

Electrical connection (non=Canada) - 4 wire cord
4-wire receptacle
(NEMA type 14-30R)
Neutral
WHITE wire)
ELECTRICAL SHOCK HAZARD
Failureto disconnect power source before servicing
could result in personal injury or even death.
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal block
access cover in the lower corner on the back of the
dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer's instructions
in the power cord entry hole below the access
panel. At this time, the strain relief should be
loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 14-30 type ST or SRDT, through
the strain relief.
5 Disconnect the internal (BLACK) dryer harness
ground wire from the (GREEN) ground screw next
to the terminal block.
6 Attach the ground (GREEN) power cord wire to the
cabinet with the ground (GREEN) screw. Tighten
the screw securely.
7 Move the internal dryer harness ground (BLACK)
wire to the terminal block and attach it along with
the neutral (WHITE) power cord wire conductor
to the center, SILVER colored terminal on the
terminal block. Tighten the screw securely.
8 Attach the RED and BLACK power cord conductors
to the outer, BRASScolored terminals on the
terminal block. Tighten both screws securely.
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/conductor at
connections,
9 Follow manufacturer's guidelines for firmly securing
the strain relief and power cord.
10 Reinstall the terminal block cover.
............. _ Install
UL-approved
strain relief here
Terminal screw
recovery slot
If a terminal screw falls during cord installation, it can
be retrieved in the terminal screw recovery slot below
Move internal ground (BLACK)
neutral (SILVER)
wire to for 4-wire system. "_
terminal
/
"xX
GREEN
ground screw
Neutral
terminal
WHITE
neutral wire
GREEN
ground wir
BLACK or
RED power wire
BLACK
or RED
power wire
