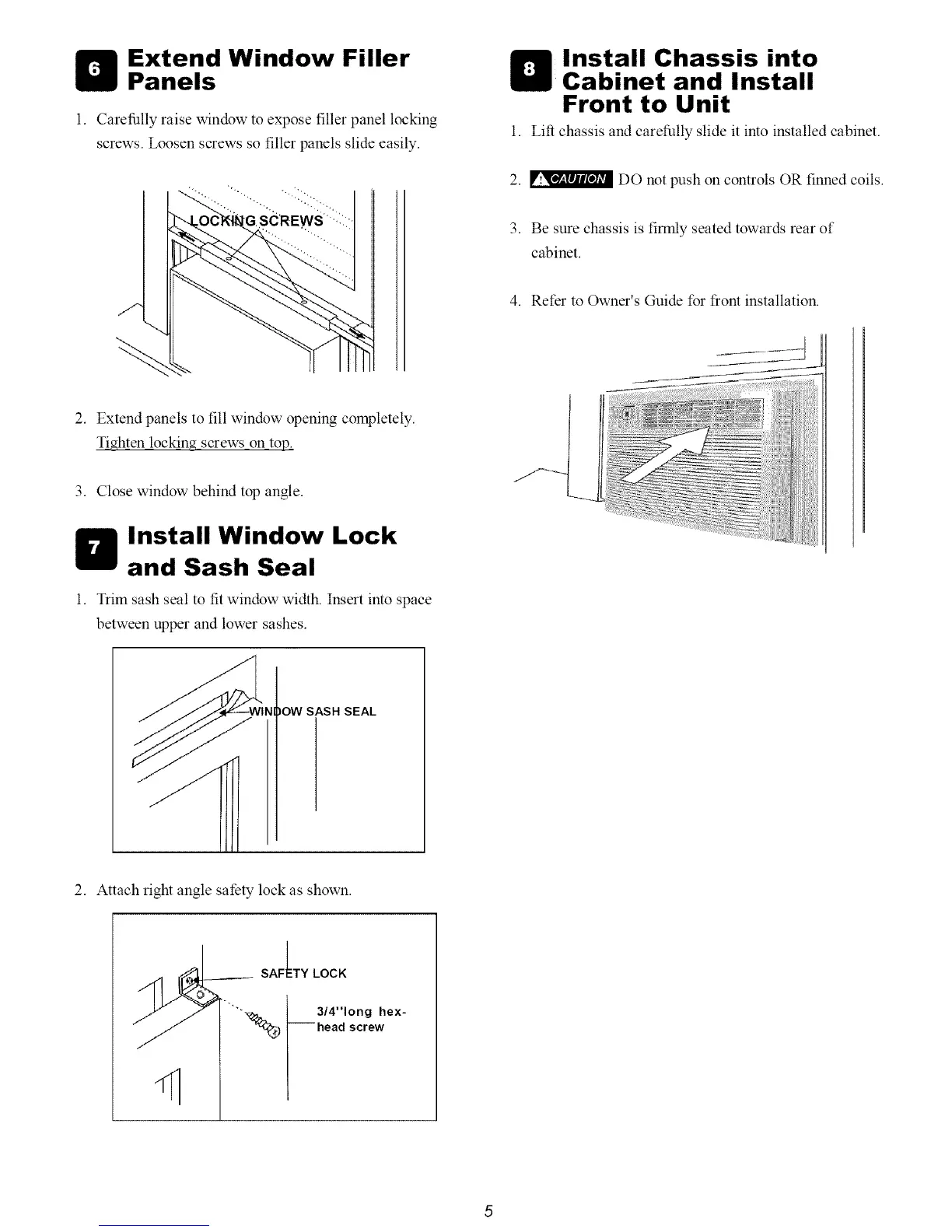

Extend Window Filler
Panels
1. Carefully raise window to expose filler panel locking
screws. Loosen screws so filler panels slide easily.
Install Chassis into
Cabinet and Install
Front to Unit
1. Lift chassis and carefully slide it into installed cabinet.
2. _ DO not push on controls OR finned coils.
3. Be sure chassis is firmly seated towards rear of
cabinet.
4. Refer to Owner's Guide for front installation.
2. Extend panels to fill window opening completely.
Tighten lockin_ screws on top.
3. Close window behind top angle.
Install Window Lock
and Sash Seal
1. Trim sash seal to fit window width. Insert into space
between upper and lower sashes.
)OW SASH SEAL
2. Attach right angle safety lock as shown.
/_ y ---_. 3,4",onghex-
"/// _) -- head screw
