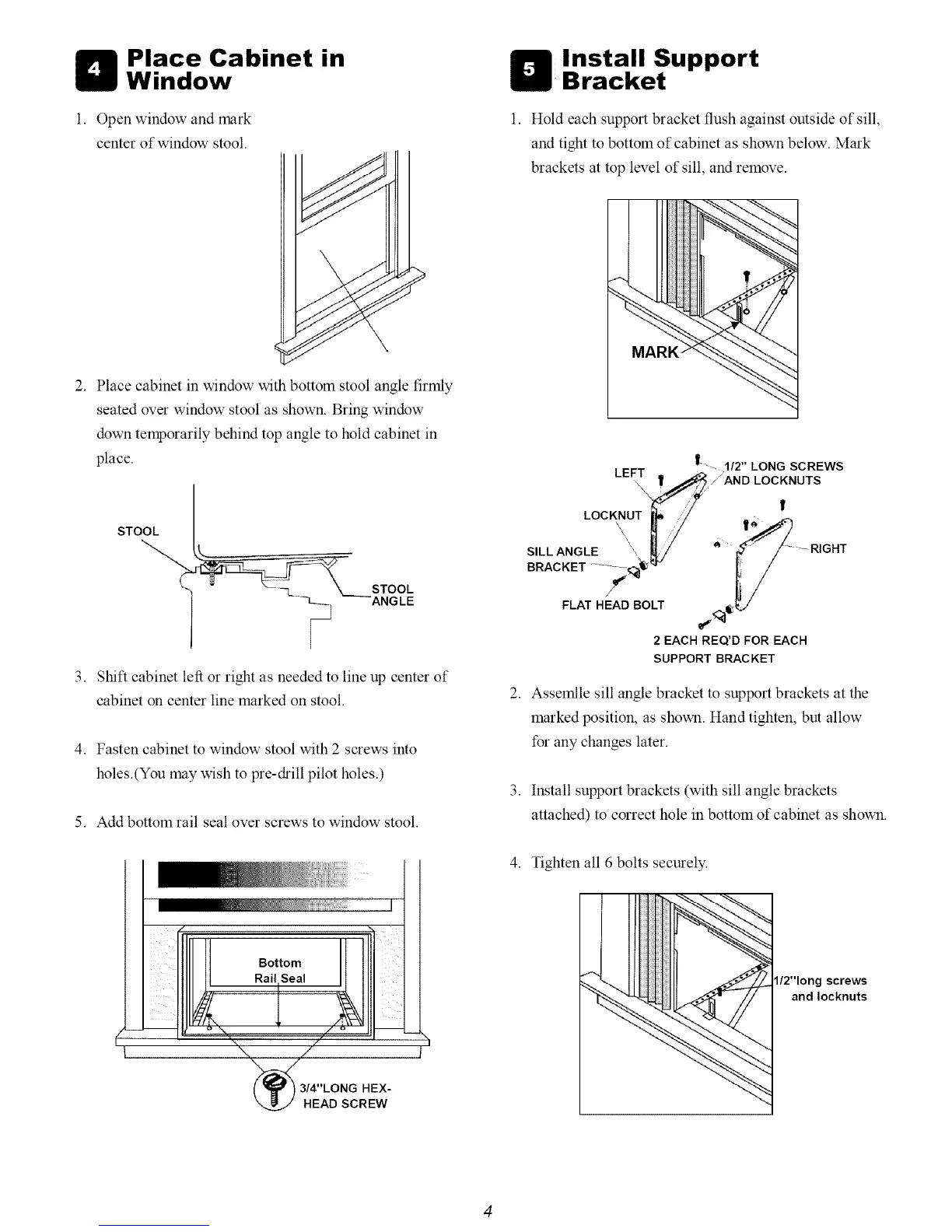

Place Cabinet in
Window
1. Open window and mark
center of window stool.
2. Place cabinet in window with bottom stool angle firmly
seated over window stool as shown. Bring window
down temporarily behind top angle to hold cabinet in
place.
3. Shift cabinet left or right as needed to line up center of
cabinet on center line marked on stool.
4. Fasten cabinet to window stool with 2 screws into
holes.(You may wish to pre-drill pilot holes.)
5. Add bottom rail seal over screws to window stool.
Install Support
Bracket
1. Hold each support bracket flush against outside of sill,
and tight to bottom of cabinet as shown below. Mark
brackets at top level of sill, and remove.
4
MARK
|........ 1/2" LONG SCREWS
LEFT\. _/AND LOCKNUTS
LOC UTg" ,. !
FLAT HEAD BOLT <_@b,_/
2 EACH REQ'D FOR EACH
SUPPORT BRACKET
2. Assemlle sill angle bracket to support brackets at the
marked position, as shown. Hand tighten, but allow
for any changes later.
3. Install support brackets (with sill angle brackets
attached) to correct hole in bottom of cabinet as shown.
I
L Bottom
Rail Seal
_\. ./
"\ // --
I (_/_/_//3/4"LONG HEX- I
_.._/HEADSCREW
4. Tighten all 6 bolts securely.
l/2"long screws
andlocknuts
To Next Page
