IMPORTANT
After connecting the water supply, refer to “How to Prime
the Water Supply System” for important information about
priming an empty water supply system.
Your refrigerator’s water supply system includes several
tubinglines,awaterlter,awatervalve,andawater
tank. To ensure that your water dispenser works
properly,thissystemmustbecompletelylledwith
waterwhenyourrefrigeratorisrstconnectedtothe
household water supply line.
CONNECTING THE WATER SUPPLY

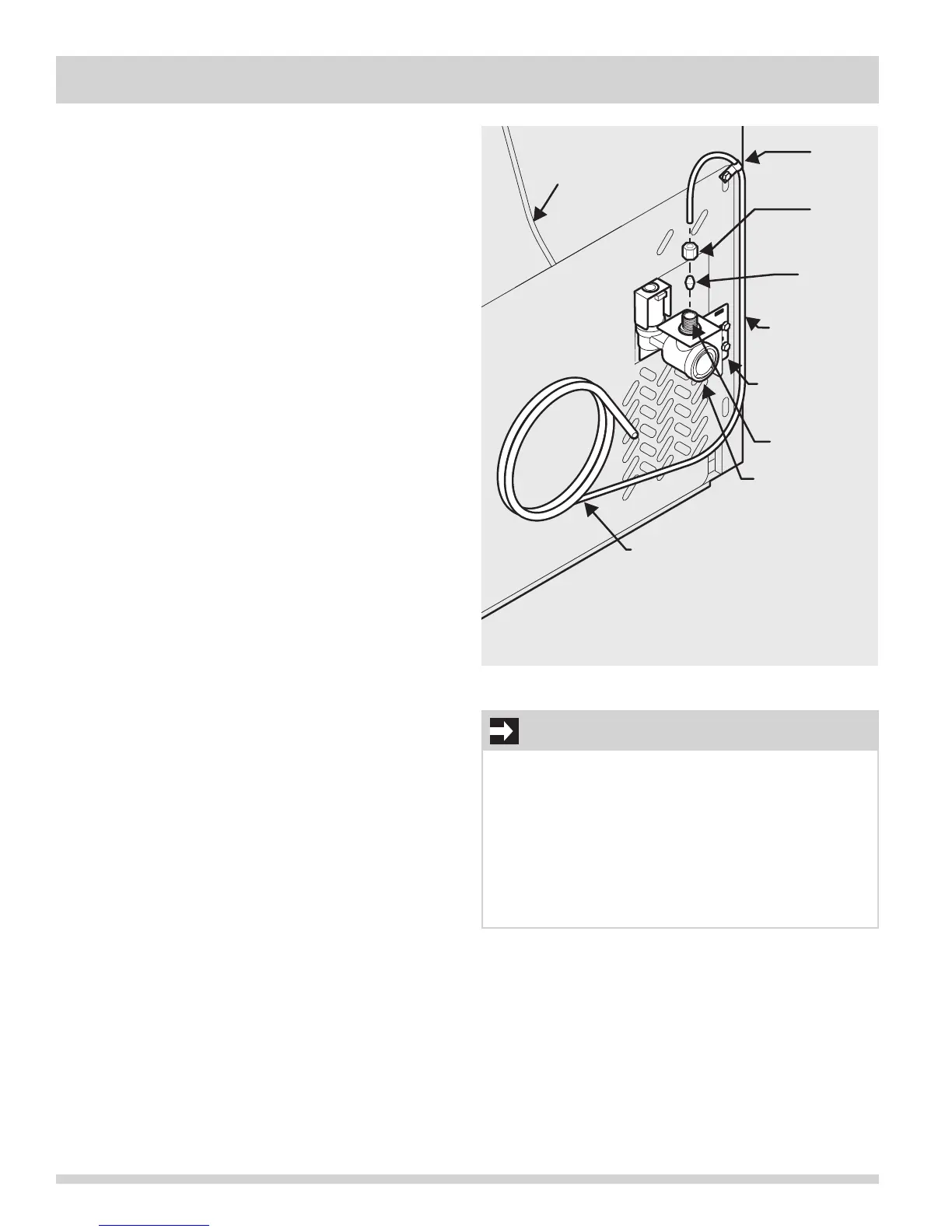

Figure 1
Steel
Clamp
Brass
Compression
Nut
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
Water line from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Ferrule
(Sleeve)
Plastic Water Tubing
to Ice Maker
Fill Tube
To Connect Water Supply Line To Ice Maker Inlet Valve
1 Disconnect refrigerator from electric power source.
2 Place end of water supply line into sink or bucket.
TurnONwatersupplyandushsupplylineuntil
water is clear. Turn OFF water supply at shutoff valve.
3 Remove plastic cap from water valve inlet and
discard cap.
4 If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto water
supply line. Push water supply line into water valve
inlet as far as it will go (¼ inch/6.4 mm). Slide
ferrule(sleeve)intovalveinletandngertighten
compression nut onto valve. Tighten another half
turn with a wrench; DO NOT over tighten. See
Figure 1.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing. Slide
compressionnutontovalveinletandngertighten
compression nut onto valve. Tighten another half
turn with a wrench; DO NOT over tighten. See
Figure 1.
5 With steel clamp and screw, secure water
supply line (copper tubing only) to rear panel of
refrigerator as shown.
6 Coil excess water supply line (copper tubing only),
about 2½ turns, behind refrigerator as shown and
arrange coils so they do not vibrate or wear against
any other surface. Do not kink tubing.
7 Turn ON water supply at shutoff valve and tighten
any connections that leak.
8 Reconnect refrigerator to electrical power source.
9 To turn ice maker on, lower wire signal arm (freezer
ice maker) or set the ice maker’s On/Off power
switch to the “On” position (fresh food ice maker).

Frigidaire FGHS2355PF Specifications

General

Type	freestanding
Style	side-by-side
Color	stainless steel
Refrigerator Capacity	22.6 cubic feet
Freezer Capacity	8.4 cubic feet
Humidity Controlled Crispers	yes
Defrost System	automatic
Quick Freeze	no
Number of Refrigerator Door Bins	yes
Temperature Control	digital
Interior Light	led
Ice Maker	yes
Water Filter	yes
Door Alarm	no
Smart Home	no
Annual Energy Consumption	549 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	35.625 inches
Height	69.875 inches
Width	33 inches
Net Weight	287 pounds
