CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
INSTALLING DOOR HANDLES
NOTE
All set screws should be tightened so the screw is below the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps. Opening the opposite door while tightening the Allen screw
makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the set screws on the
handles.

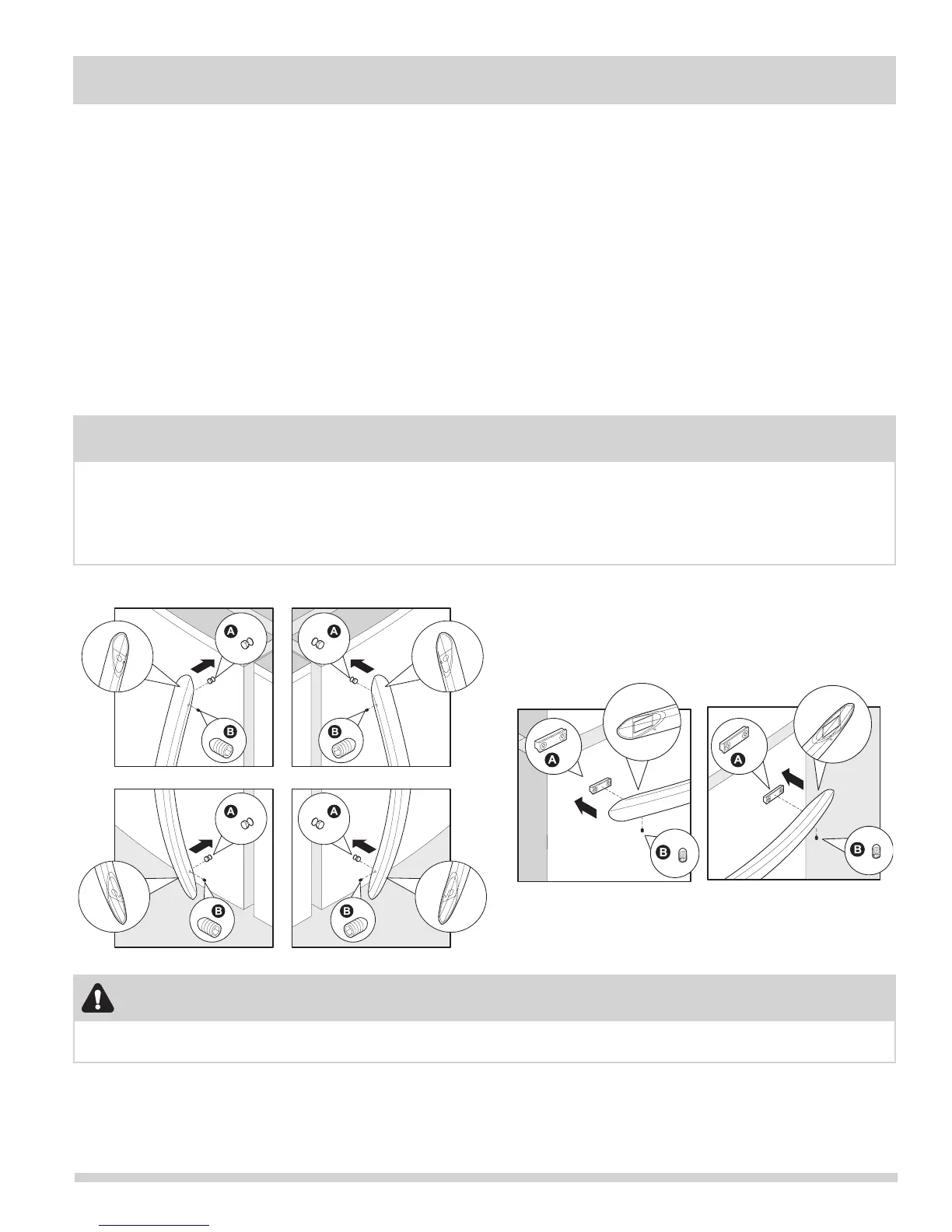

Door Handle Mounting Instructions for Frigidaire Gallery
®
1 Remove handles from carton and any other protective packaging.
2 Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door,
ensuring the holes for the set screws are facing towards the opposite door.
3 Whileholdinghandlermlyagainstdoor,fastenupperandlowerAllensetscrews(B)withsuppliedAllenwrench.
4 Repeatsteps2and3toinstalloppositehandle.Ensuretheholesforthesetscrewsarefacingtowardstherstdoor.
5 Position freezer handle end over left and right pre-installed handle mounts that are fastened to the door, ensuring
the holes for the set screws are facing down.
6 Whileholdinghandlermlyagainstdoor,looselytightenfarrightAllensetscrew(B)withsuppliedAllenwrenchuntilthereis
no gap between handle and door.
7 Stillholdingthehandlermlytothedoor,rmlytightenfarleftAllensetscrew(B)withsuppliedAllenwrench.
8 ReturntothefarrightAllensetscrew(B)andrmlytightenwithsuppliedAllenwrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
