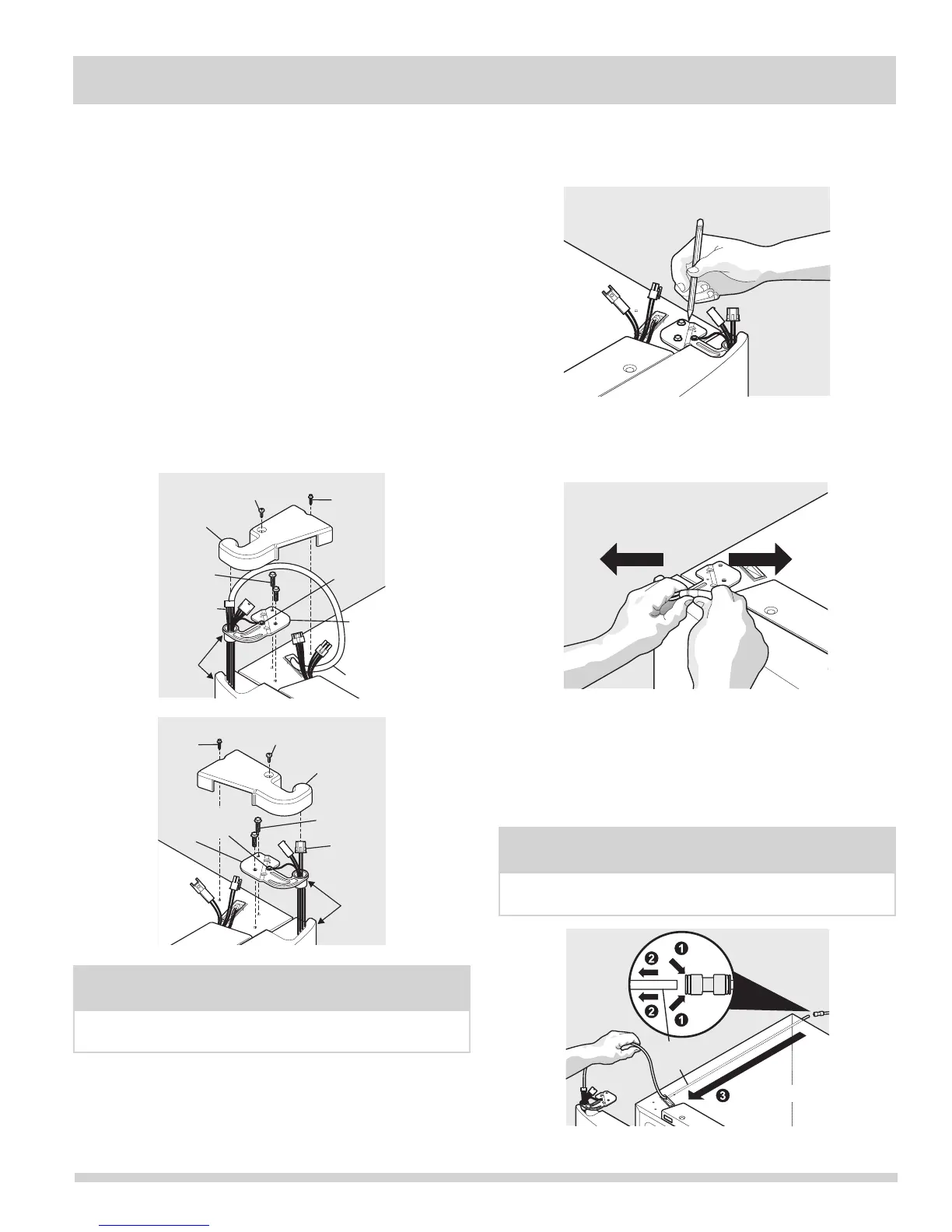

DOOR REMOVAL INSTRUCTIONS
Press
Water
Line
Approximately
5 Feet
Press
To remove the refrigerator doors:
1 Trace lightly around the door’s top hinges with a
pencil. This makes reinstallation easier.
2 Disconnect the harness by grasping both sides of the
connectorrmly,depressthelatch,andpullapart.
Remove the two screws from the top hinge. Lift the
door off of the bottom hinge and set it aside.
3 Detach the water tube from the connector located
behind the refrigerator and pull the tube back out
to the front of the unit. The connector releases
when you press inward on the outer sleeve while
pushing the tube toward the connector then while
continuing to hold in the sleeve, pull the tube away.
Getting through narrow spaces
Ifyourrefrigeratorwillnottthroughanentrancearea,
youcanremovethedoors.Checkrstbymeasuringthe
entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged
from the wall outlet.
2 Open the freezer drawer and remove the toe grille
(see “Installation” section).
3 Remove any food from the door shelves and close
the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover over the
top door hinges.
2 Lift inside edge of hinge cover and tilt back.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw
Water
Line
Rear
Cover
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
Top
Hinge
Ground
Screw
NOTE
DO NOT remove the ground screw from hinge.
NOTE
Use care while pulling the water tube from the unit to
be sure that you do not kink the tube.
To Next Page
