A
INSTALLATION TYPES
(Choose A, B or C)

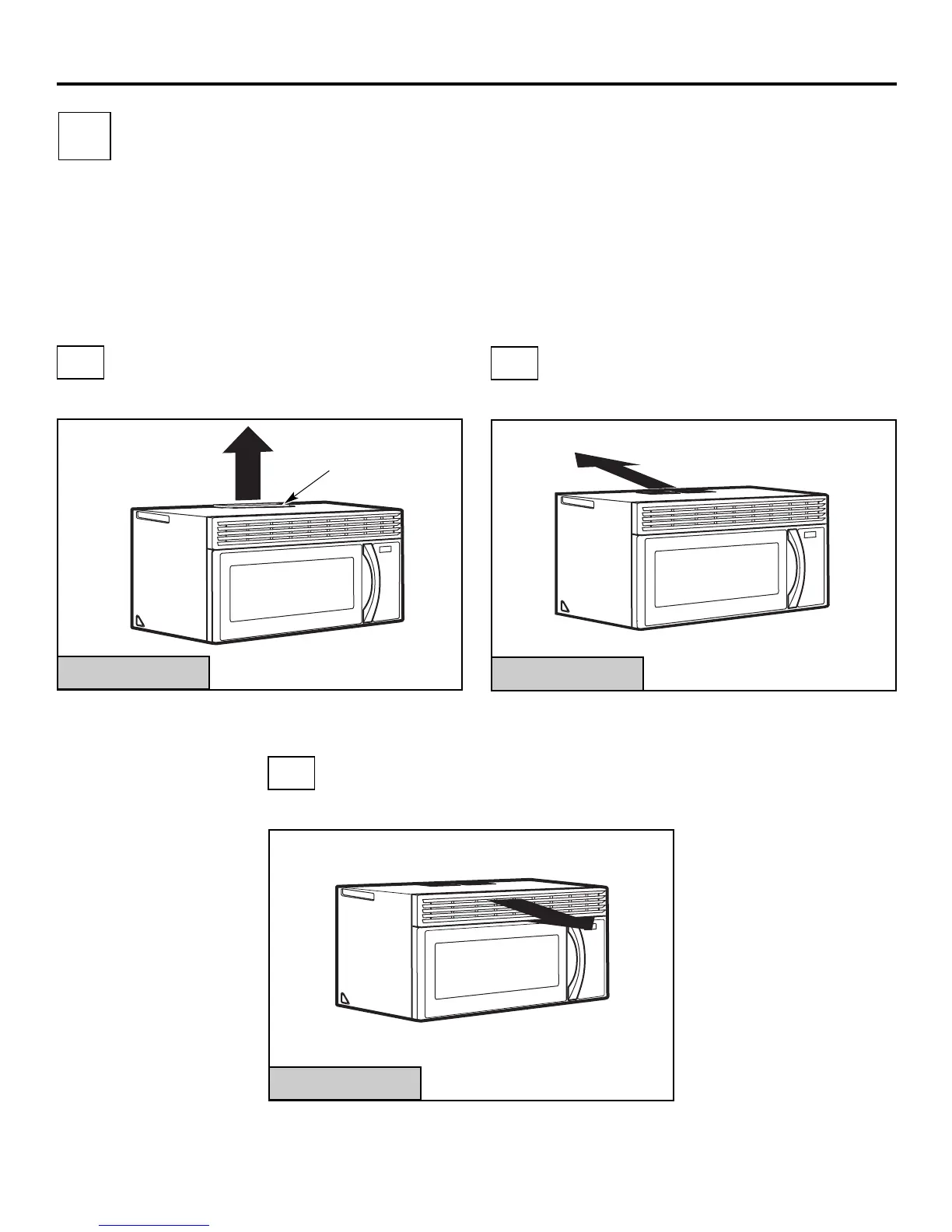

This microwave oven is designed for adaptation to
the following three types of ventilation:
A.Outside Top Exhaust (Vertical Duct)
B.Outside Back Exhaust (Horizontal Duct)
C.Recirculating (Non-Vented Ductless)
NOTE: This microwave is shipped assembled for Outside
Top Exhaust (except for non-vented models). Select the
type of ventilation required for your installation and
proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
RECIRCULATING
(NON-VENTED DUCTLESS)
See page 12
See page 15
See page 19
On models shipped for
recirculating exhaust, a
disposable charcoal filter
is factory installed to help
remove smoke and odors.
On Models shipped for
outside top exhaust or outside
back exhaust, a Charcoal filter
Accessory Kit is required for
the recirculating exhaust.
(See your Owner's Manual
for kit number.)
Adaptor in Place for
Outside Top Exhaust
Installation Instructions
2
B
C
11
Adaptor Must Be
Moved to the Back for
Outside Back Exhaust
To Next Page
