GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
4

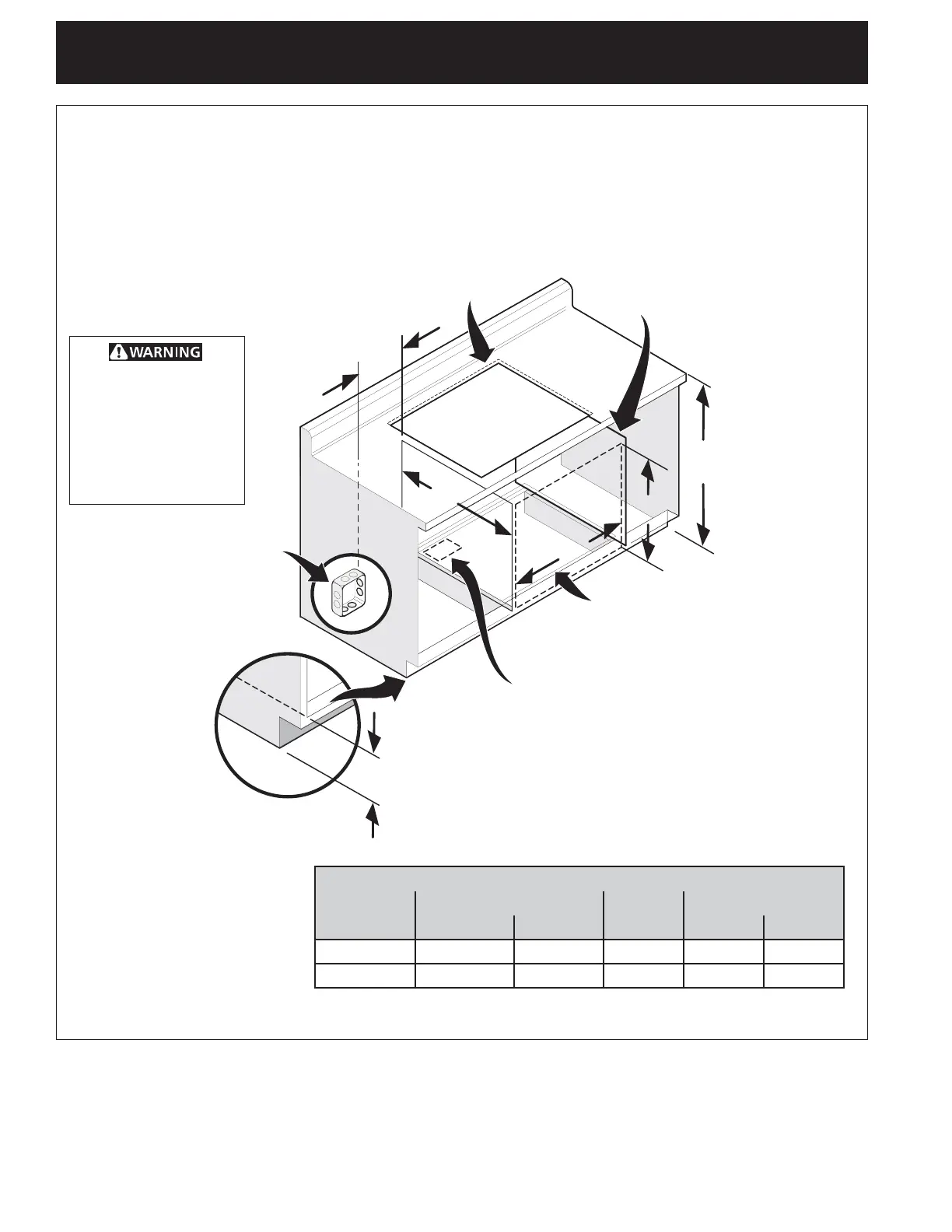

Typical Under Counter Installation of an Electric Built-in
Oven with a Cooktop Mounted Above
Figure 3
CUTOUT DIMENSIONS (INCHES (CM))
OVEN SIZE F. WIDTH G. DEPTH H. HEIGHT
Min. Max. Min. Min. Max.
27" (68.6) 24
7
/
8
" (63.1) 25¼" (64.1) 23½" (59.7) 27¼" (69.2) 28½" (72.4)
30" (76.2) 28½" (72.4) 29" (73.7) 23½" (59.7) 27¼" (69.2) 28½" (72.4)
Only certain cooktop models may be installed over
certain built-in electric oven models. Approved cooktops
and built-in ovens are listed by the MFG ID number
and product code (see the insert sheet included in the
literature package and cooktop installation instructions
for the dimensions).
G
F
H
36” Min.
(91.4 cm) Min.
Use 3/4” (1.9 cm) plywood, installed on
two runners, fl ush with toe plate. Base
must be capable of supporting 150
pounds (68 kg) for 27" models and
200 pounds (90 kg) for 30" models.
Cut an opening in wood base minimum 9” x
9” (23 X 23 cm), 2” (5 cm) from left side fi ller
panel, to route armoured cable to junction box.
* If no cooktop is installed
directly over the oven unit, 5”
(12.7 cm) maximum is allowed
above the fl oor.
208/240 Volt junction box
for built-in oven.
Approx. 3”
(7.5 cm)
Cabinet side fi ller panels
are necessary to isolate the
unit from adjoining cabinets.
Cabinet side fi ller height
should allow for installation of
approved cooktop models
To reduce the risk of
personal injury and
tipping of the wall
oven, the wall oven
must be secured to
the cabinet (s) by
mounting brackets.
4 1/2” (11.5 cm) Max.*
