GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
5
Wall Oven Cabinet

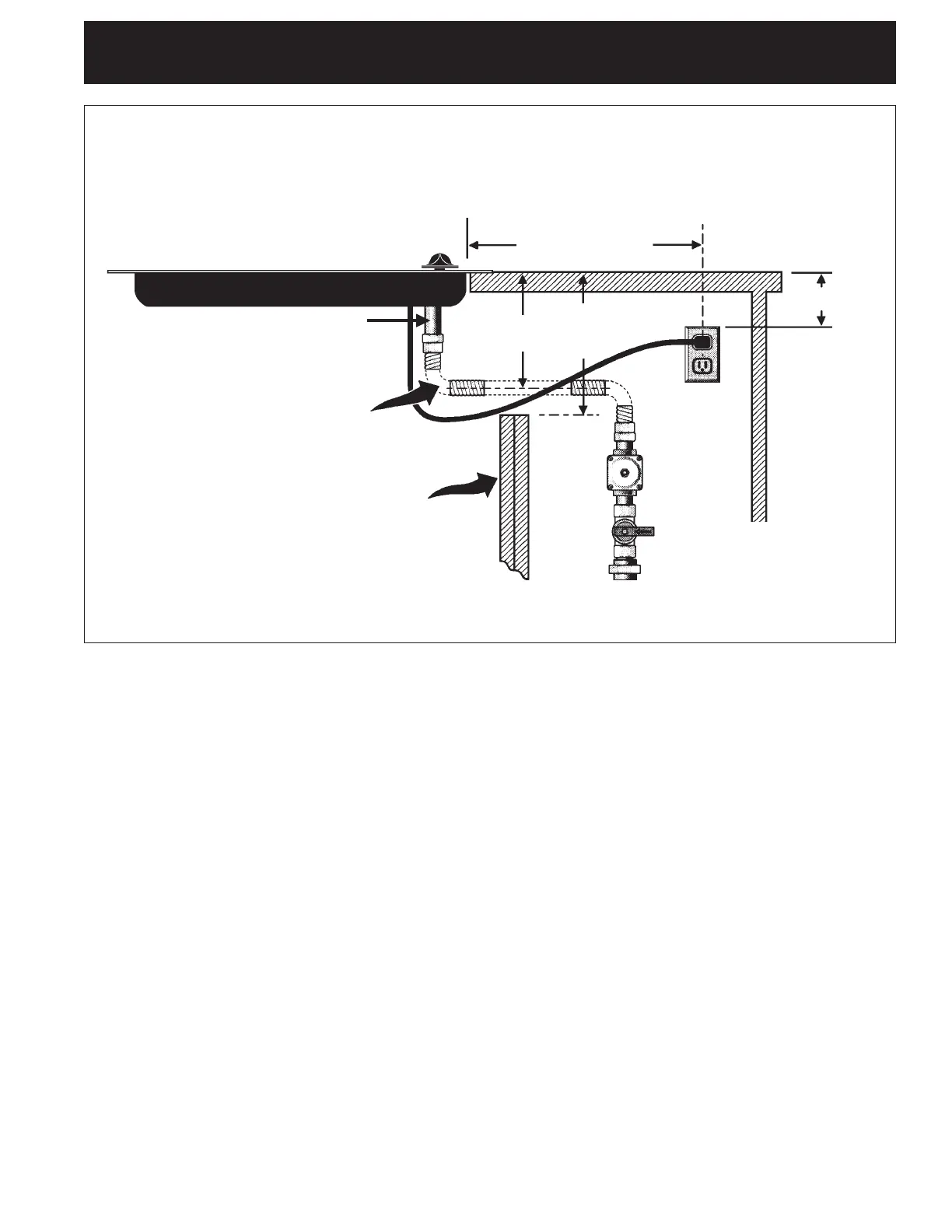

Typical Gas Cooktop Installation Over
an Electric Built-in Oven Installed Under the Counter
GAS COOKTOP
18” (45.7 cm) Max.
5”
(12.7 cm)
Flare
Union
4” (10.2 cm)
120V/60Hz
Grounded
Outlet
Right Side
of Cabinet
Pressure
Regulator
Flare
Union
Flexible Connector
Cabinet sides or
fi ller panel
6½”
(16.5 cm)
Min.
Manifold Pipe
Manual Shutoff Valve
(To be accessible for
shut-off valve opera-
tion)
Figure 4
