GAS COOKTOP INSTALLATION INSTRUCTIONS
(For 30" & 36" Models)
5
Wall Oven Cabinet
Typical Gas Cooktop Installation Over an Electric Built-in
Oven Installed Under the Counter
GAS COOKTOP
18 " (45,7 cm) Max.
5 "
(12,7 cm)
Flare
Union
4 " (10,2 cm)
120V/60Hz
Grounded
Outlet
Right Side
of Cabinet
Pressure
Regulator
Flare
Union
Flexible Connector
Cabinet sides or
filler panel
6½ "
(16,5 cm)
Min.
Manifold Pipe
Manual Shutoff Valve
(To be accessible
for shut-off valve
operation)

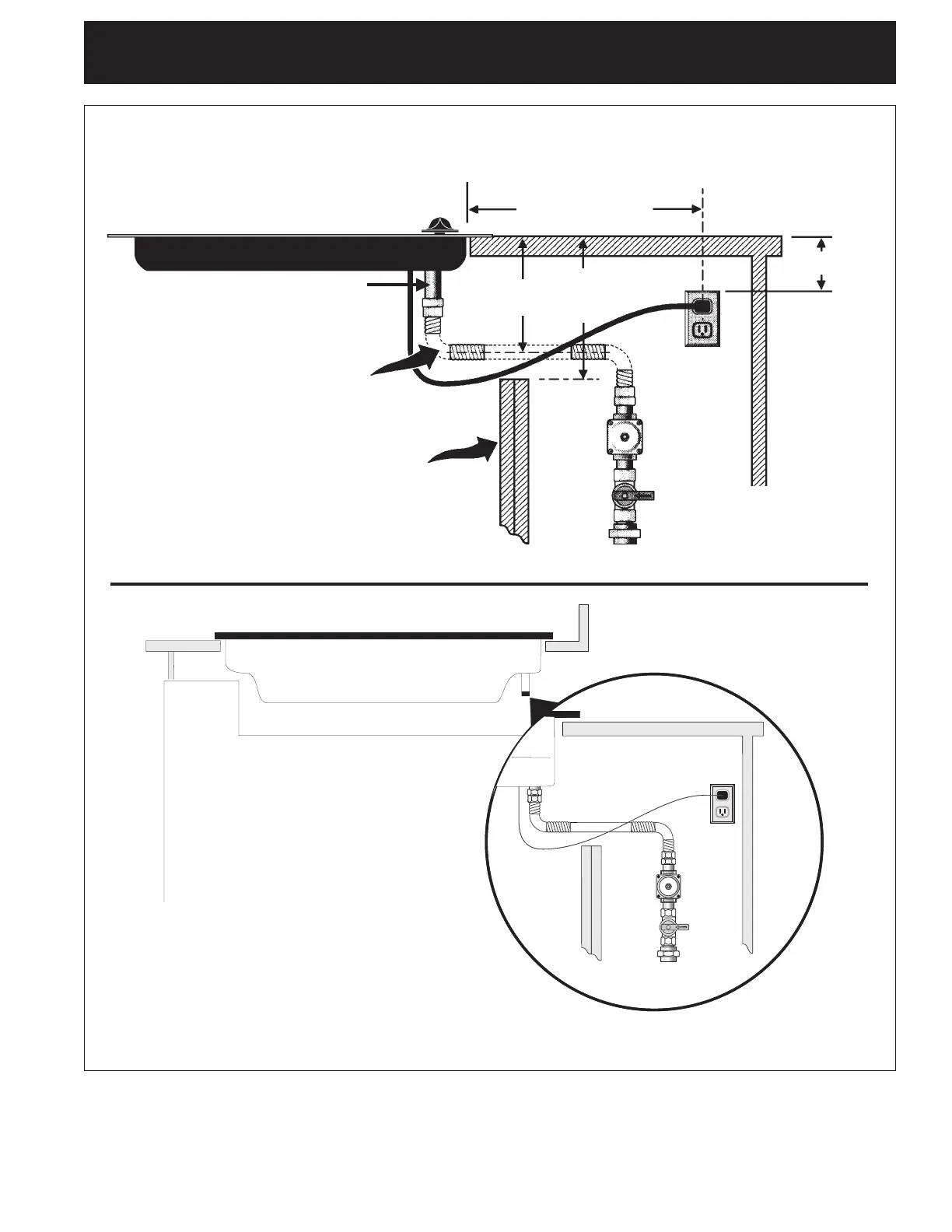

Figure 4
Cooktop
Wall Oven
Side view
Front view
