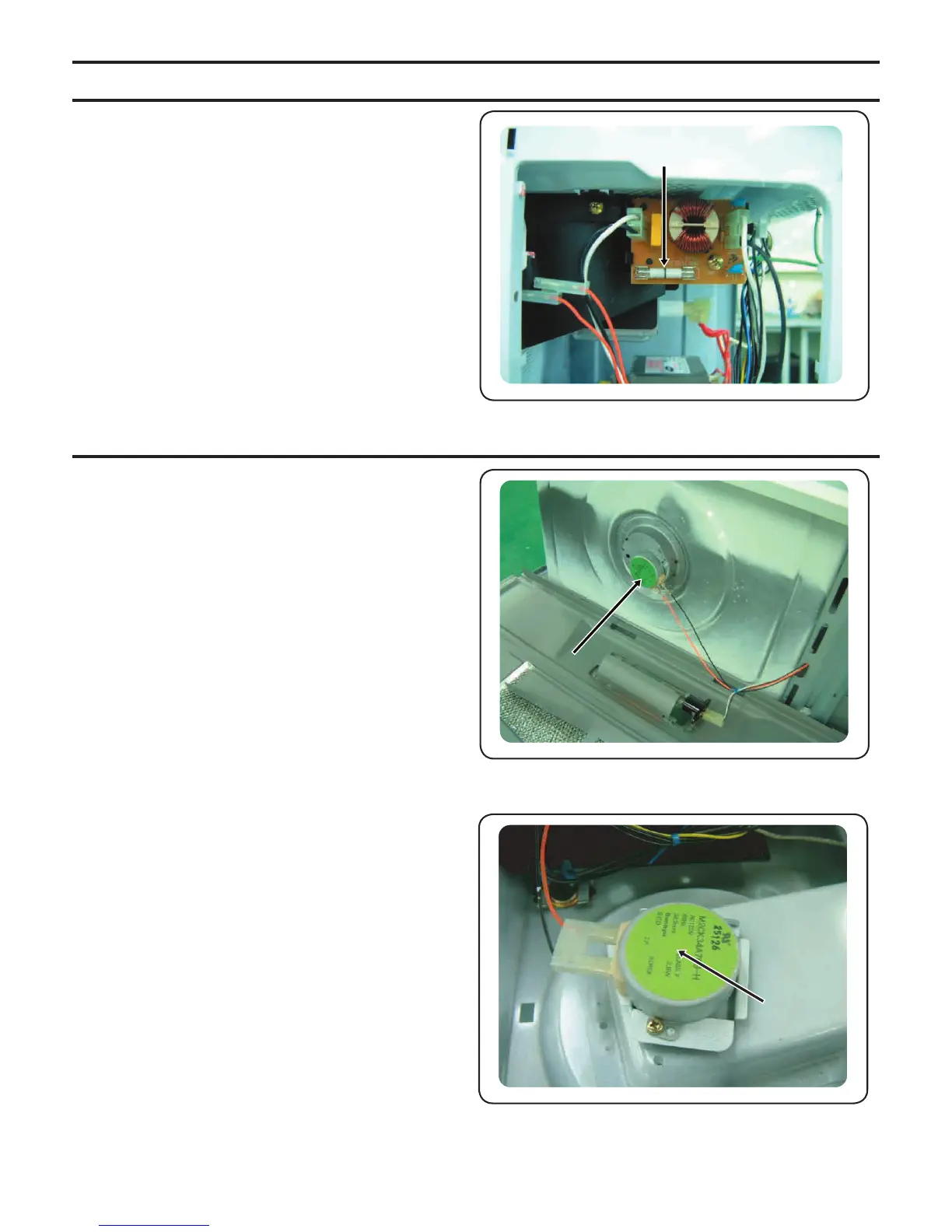

5-4 Replacement of Fuse
The fuse is located on the noise filter.
1. Disconnect power and remove grille.
2. Replace the fuse.
3. When 20A fuse blows out by the operation of interlock
monitor switch failure, replace the primary interlock
switch, secondary interlock switch, door sensing
switch, interlock monitor switch and power relay.
4. When the above four switches operate properly,
check if any other part such as the control circuit
board, blower motor or high voltage transformer is
defective.
5-5 Replacement of Drive Motor
1. Disconnect power and remove bottom plate
screws(7).
2. Remove bottom plate and disconnect the turntable
motor drive.
3. Remove turntable motor screws(2) and pull the
turntable motor out.
4. When replacing the drive motor, be sure to remount it
in the correct position with the coupler.
5. Connect all the leads to the drive motor.
5-6 Replacement of stirrer motor
1. Disconnect power and remove grille screws(3).
2. Remove grille and the bracket duct upper screw(1).
3. Remove the bracket duct upper and disconnect the
stirrer motor wire.
4. Remove stirrer motor screws(1) and pull the stirrer
motor.
