1-2 Special High Voltage Precautions
1. High Voltage Warning !
Do not attempt to measure any of the high voltages
--this includes the filament voltage of the magnetron.
High voltage is present during any cook cycle.
Before touching any components or wiring, always
unplug the oven and discharge the high voltage

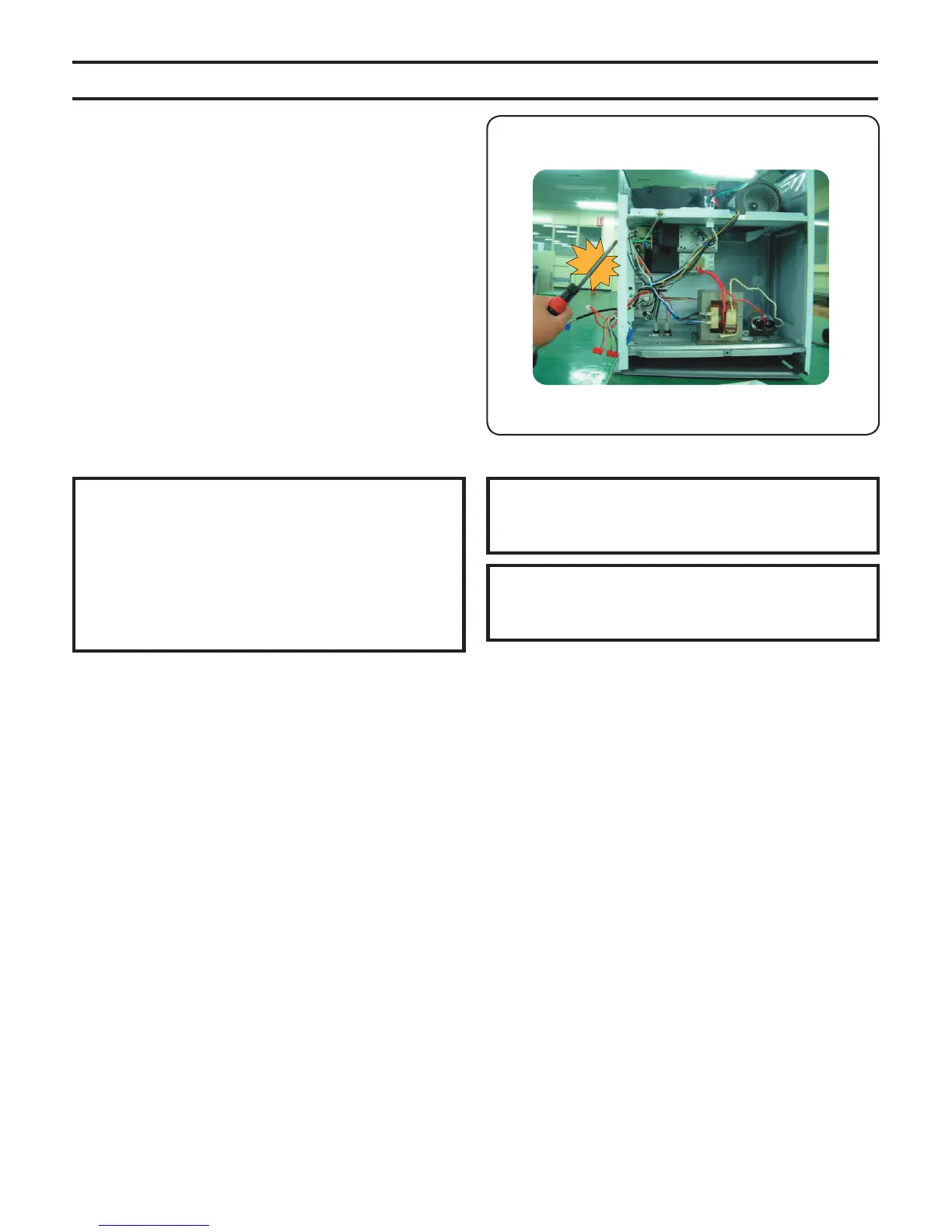

capacitor (See Figure 1-1)
2. The high-voltage capacitor remains charged about
30 seconds after disconnection. Short the negative
terminal of the high-voltage capacitor to the oven
chassis. (Use a screwdriver.)
3. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the specified
limits, check each of the special components.
PRECAUTION
There exists HIGH VOLTAGE ELECTRICITY with
high current capabilities in the circuits of the HIGH
VOLTAGE TRANSFORMER secondary and filament
terminals. It is extremely dangerous to work on or
near these circuits with the oven energized.
DO NOT measure the voltage in the high voltage
circuit including filament voltage of magnetron.
PRECAUTION
Never touch any circuit wiring with your hand nor
with uninsulated tool during operation.
PRECAUTION
Never touch any circuit wiring with your hand nor
with uninsulated tool during operation.
