Page 20

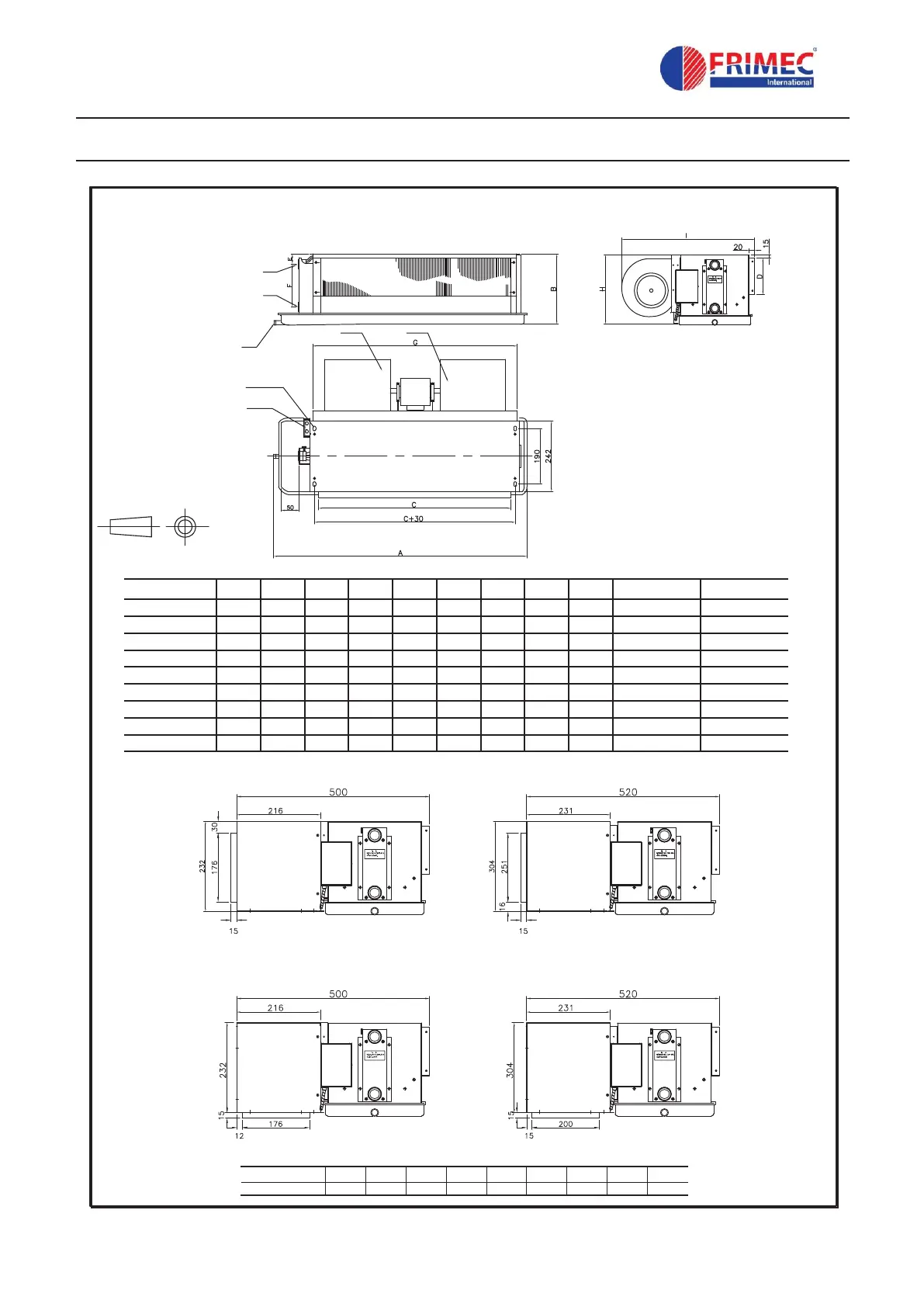

Dimensions
Water Return Connection
Rc3/4 Water Supply
Connection Rc3/4
Condensate Water Pipe Rc3/4
Fan
Motor
4 - Ø10 x 16 Mounting
Holes Terminal Box
FCR
200 300 400 500 600 800 1000 1200 1400
477 577 667 767 877 1172 1267 1367 1466
Length
With Back Air Plenum (FCR200-1200E) With Back Air Plenum (FCR1400E)
With Bottom Air Plenum (FCR200-1200E) With Bottom Air Plenum (FCR1400E)
Note : Diagram shows Left Piping
Dimensions in mm
Model A B C D E F G H I Motor No. Fan No.
FCR200E
705 240 409 135 20 145 532 235 470 1 1
FCR300E
805 240 590 135 20 145 632 235 470 1 2
FCR400E
895 240 680 135 20 145 722 235 470 1 2
FCR500E
995 240 780 135 20 145 822 235 470 1 2
FCR600E
1105 240 890 135 20 145 932 235 470 1 2
FCR800E
1435 240 1185 135 60 88 1227 235 470 2 3
FCR1000E
1635 240 1380 135 20 145 1422 235 470 2 4
FCR1200E
1765 250 1510 135 60 88 1522 245 490 2 4
FCR1400E
1765 300 1510 177 42 192 1630 300 490 2 4
Model : FCR 200 - 1400E
Without return air plenum
With return air plenum
