Page 21
246
520
(550)
20
15
Water Return Connection
Rc3/4 Water Supply
Connection Rc3/4
Condensate Water Pipe Rc3/4
4 - Ø10 x 16 Mounting
Holes Terminal Box
Fan
Motor
135

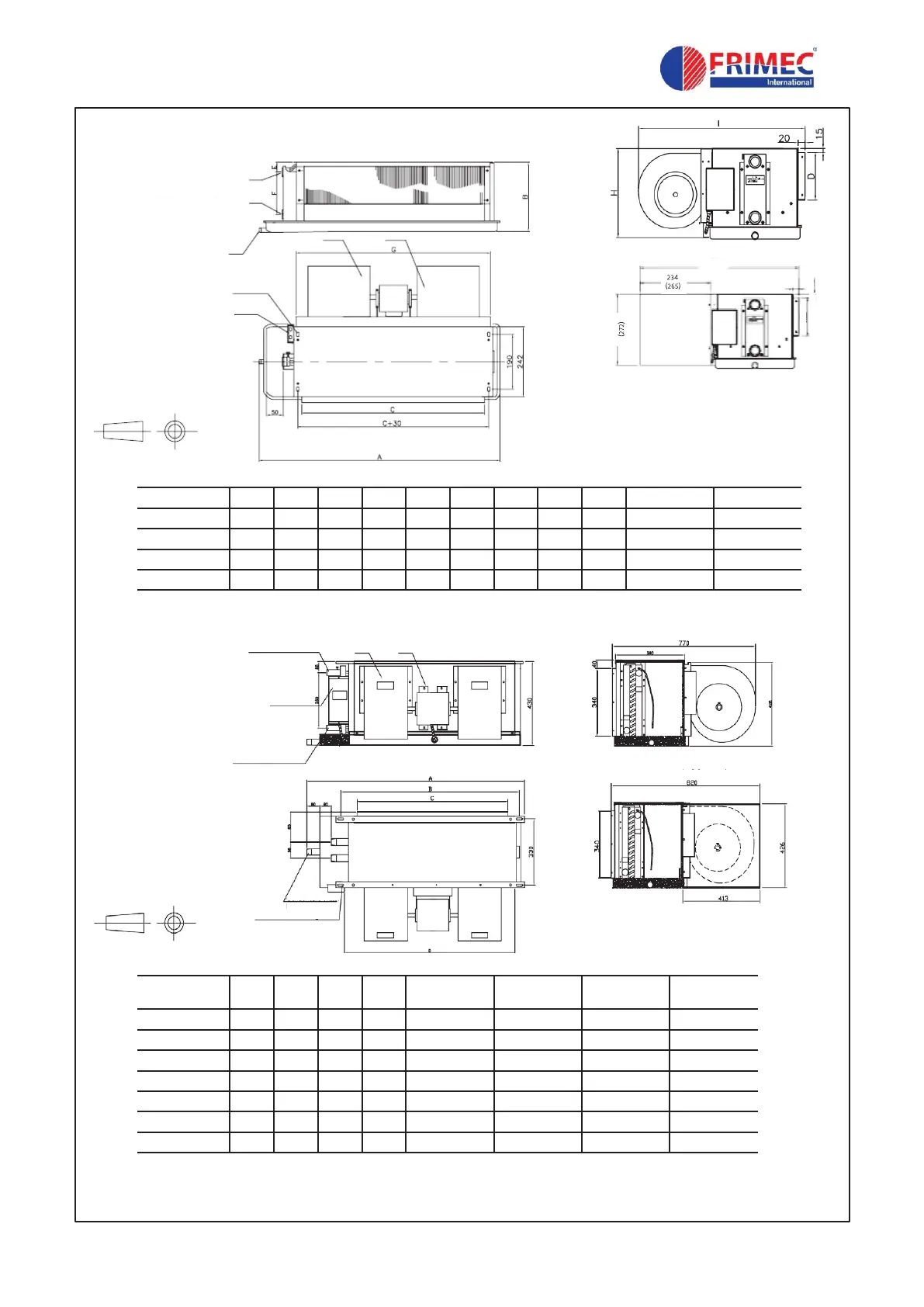

Dimension in mm, inlet/outlet & condensate water pipe in inch
Model A B C D Inlet /Outlet
Condensate
Water Pipe
Motor No.
Fan No.
FFM800B
860 683 530 590 R1 R1 1 1
FFM1000B
860 683 530 590 R1 R1 1 1
FFM1200B
960 783 630 690 R1 R1 1 1
FFM1600B
1110 953 800 860 R1 R1 1 2
FFM1800B
1260 1083 930 990 R1 R1 2 2
FFM2000B
1560 1403 1250 1310 R1-1/2 R1 2 2
FFM3000B
2010 1853 1700 1760 R1-1/2 R1 3 3
Dimension in mm
Model A B C D E F G H I Motor No. Fan No.
FCRQ400B/C
905 250 690 135 54 118 732 245 490 1 2
FCRQ500B/C
985 250 770 135 54 118 812 245 490 1 2
FCRQ600B/C
1185 275 970 135 54 118 1012 270 515 1 2
FCRQ800B/C
1465 275 1215 135 54 118 1257 270 515 2 3
Fan Motor
Water Return Connection
Water Supply Connection
Pipe
4 - Ø13 x 35 Mounting Holes
Condensate Water
Terminal Box
Note : Diagram shows Left Piping
Note : Diagram shows
Right Piping
Model : FCRQ 400 - 800B / FCRQ 400 - 800C
Model : FFM 800 - 3000BH
