Frog Pool Frog XL Pro - Parts List

11
For more in-depth troubleshooting, go to www.kingtechnology.com

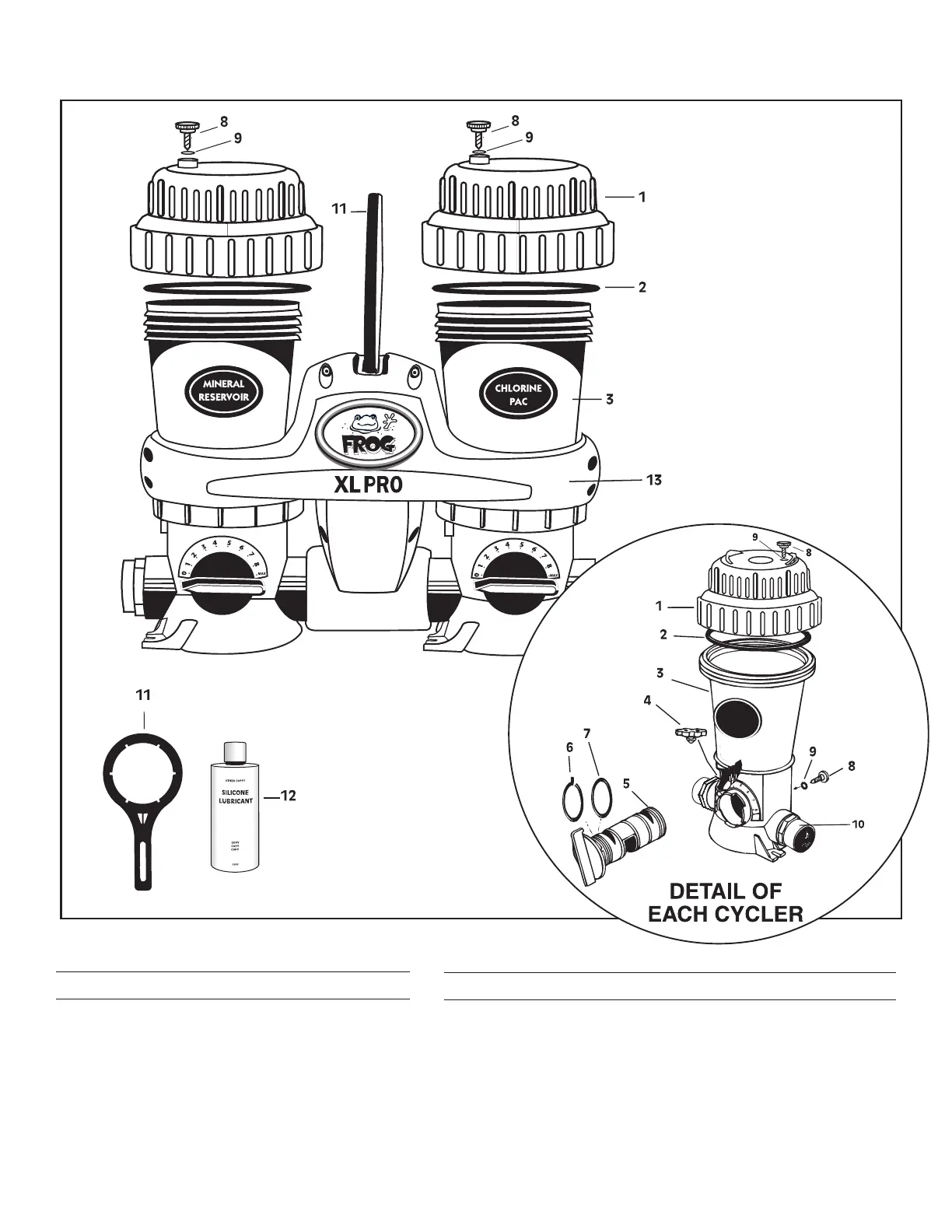

Parts List
INCLUDED WITH POOL FROG XL PRO® CYCLERS
REF. # DESCRIPTION QTY. INCLUDED
1 & 2 Cap w/O-Ring 1
3 Body 1
4 Pressure Relief Valve 1
5, 6, 7 Control Dial with O-Ring
& Snap Ring 1
8 & 9 Knob with O-Ring 4
10 2” Male Adapter 2
11 Cap/Control Dial Tool 1
12 Silicone Lubricant 1
13 Shroud 1
REPLACEMENT PARTS FOR POOL FROG XL PRO® CYCLERS
REF. # PART NO. DESCRIPTION
1 & 2 01-22-9412 Cap w/O-Ring
2 01-22-9920 Cap O-Ring
4 01-22-9480 Pressure Relief Valve
5, 6, 7 01-22-9440 Control Dial with O-Ring & Snap Ring
6 & 7 01-22-9450 Control Dial O-Ring Kit
8 & 9 01-22-9940 Knob with O-Ring
10 01-22-9490 2” Male Adapter
11 01-22-8870 Cap/Control Dial Tool
12 01-22-9971 Silicone Lubricant
