Fronius Rapid Shutdown Box Duo - Connecting the Rapid Shutdown Box Grounding

Signal ASignal B
optional
put sticker on inverter
PHOTOVOLTAIC
RAPID SHUTDOWN
SYSTEM
EQUIPMENT
Connecting the
Rapid Shutdown
Box Grounding

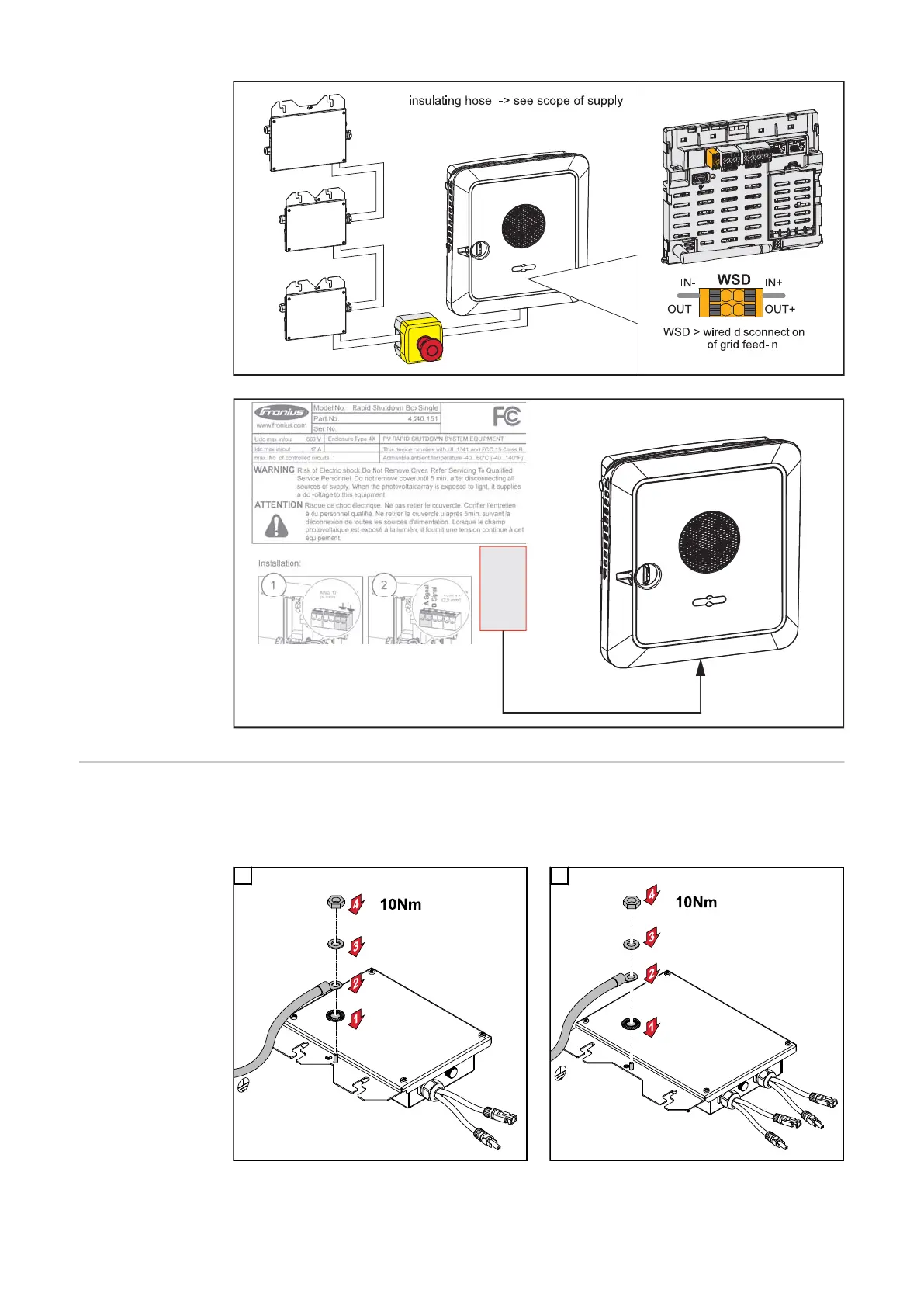

The hexagon nut and the spring washer required for connecting the grounding on the
threaded post are included in the scope of supply. The threaded post is electrically bon-
ded to the Rapid Shutdown Box.
Equipment grounding of RSB - Duo
1
Equipment grounding of RSB - Quattro
2
