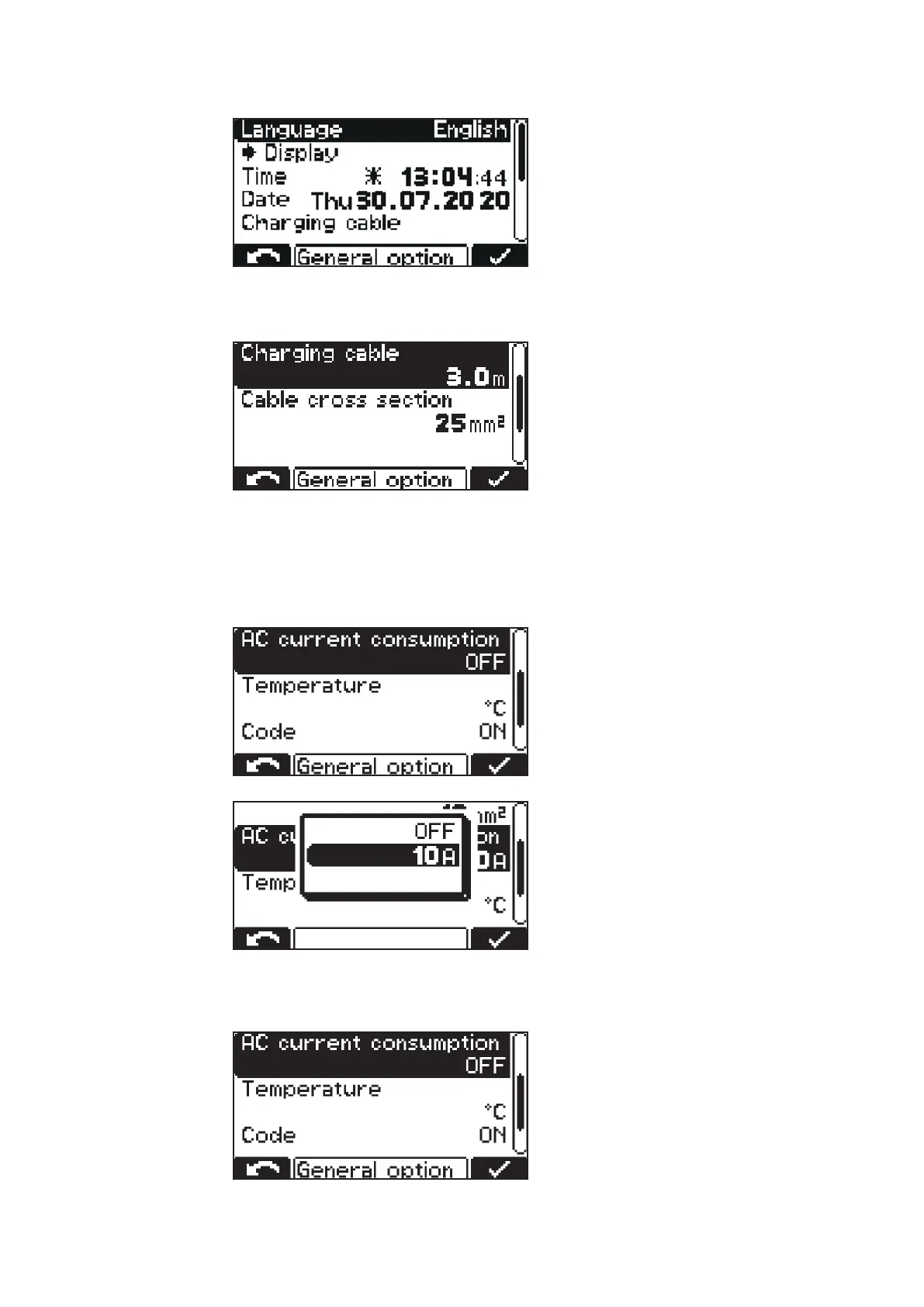

A list appears with the following selection options:
- Language
- Display settings
• Contrast
• LED brightness
• Show Ah at charge end ON/OFF
- Time and Date
• daylight saving time / normal time
• Predefined time zones
• User-defined time zones
Charging cable:
- Basic length of charging cable (m)
Cable cross section:
- Cross-section of the charging cable (mm²)
AC current consumption:
- Adapt the maximum consumed device
current to the on-site electrical install-
ation or the device connector fitted on
the device.
- The minimum and maximum values
differ depending on the different
device classes. The minimum value is
approx. 25% of the maximum nominal
current of the charger.
Temperature:
- Temperature in °C / °F
44
