Fronius Symo Advanced - Electrical Connections and Wire Sizing; Conduit Knockouts and Connection Area

26

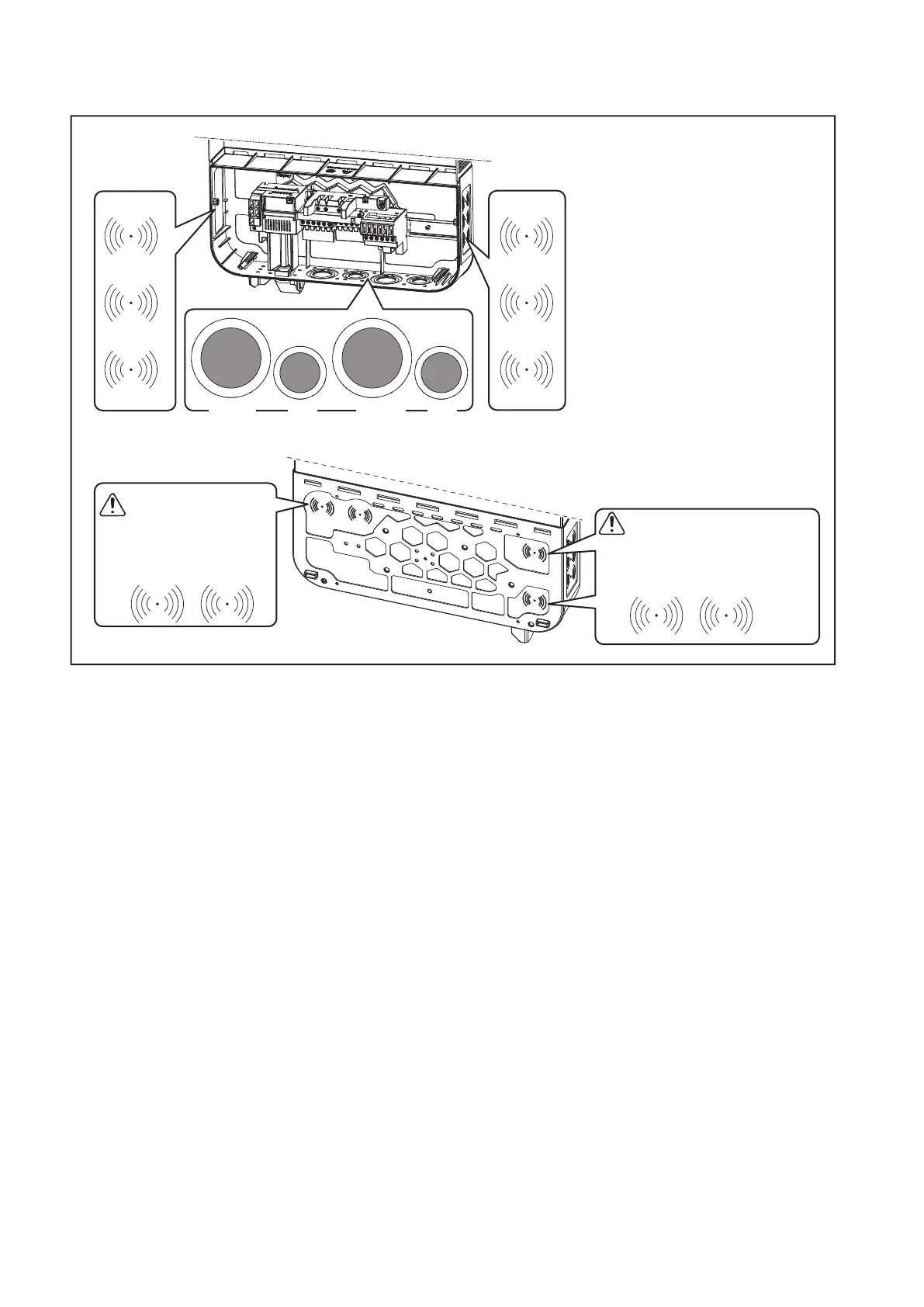

Knockouts
1 1/4 in. 1 1/4 in. 1 in. 1 in.
Conduit size
1/2 in. / 3/4 in. / 1 in.
*
Conduit size
1/2 in. / 3/4 in. / 1 in. / 1 1/4 in.
**
1/2 in. ... DATCOM
3/4 in. - 1 1/4 in. ... AC ~ / DC =
*
*
** **
*
*
*
*
METAL EMPOSSING
Remove parts fallen
into the connection area before
hanging the inverter to the wall
bracket!
** **
METAL EMPOSSING
Remove parts fallen
into the connection
area before hanging the
inverter to the wall
bracket!
