FS0507T PN 60711000162
●Please lift the lifter after lower the platform to the lowest point and collapse the
extended platform.
●The hook (one) at the center of the platform can only be
used for loading and unloading from trucks. For other
lifting works, please use the special holes (four) on the
frame. It could very dangerous that using the
unspecified holes for lifting, and the lifer could be
dropped or damaged.
●When lifting with only one hole, be sure to insert the
anti-drop buckle.
●Please use cloth to protect the parts that cable contact with the railing or platform.
●Please Lift the center of the vehicle.
Dangerous
●The hook (one) at the center of the platform can only be used for loading and
unloading from trucks. For other lifting works, please use the special holes (four) on
the frame. It could very dangerous that using the unspecified holes for lifting, and
the lifer could be dropped or damage. And may cause
accidents

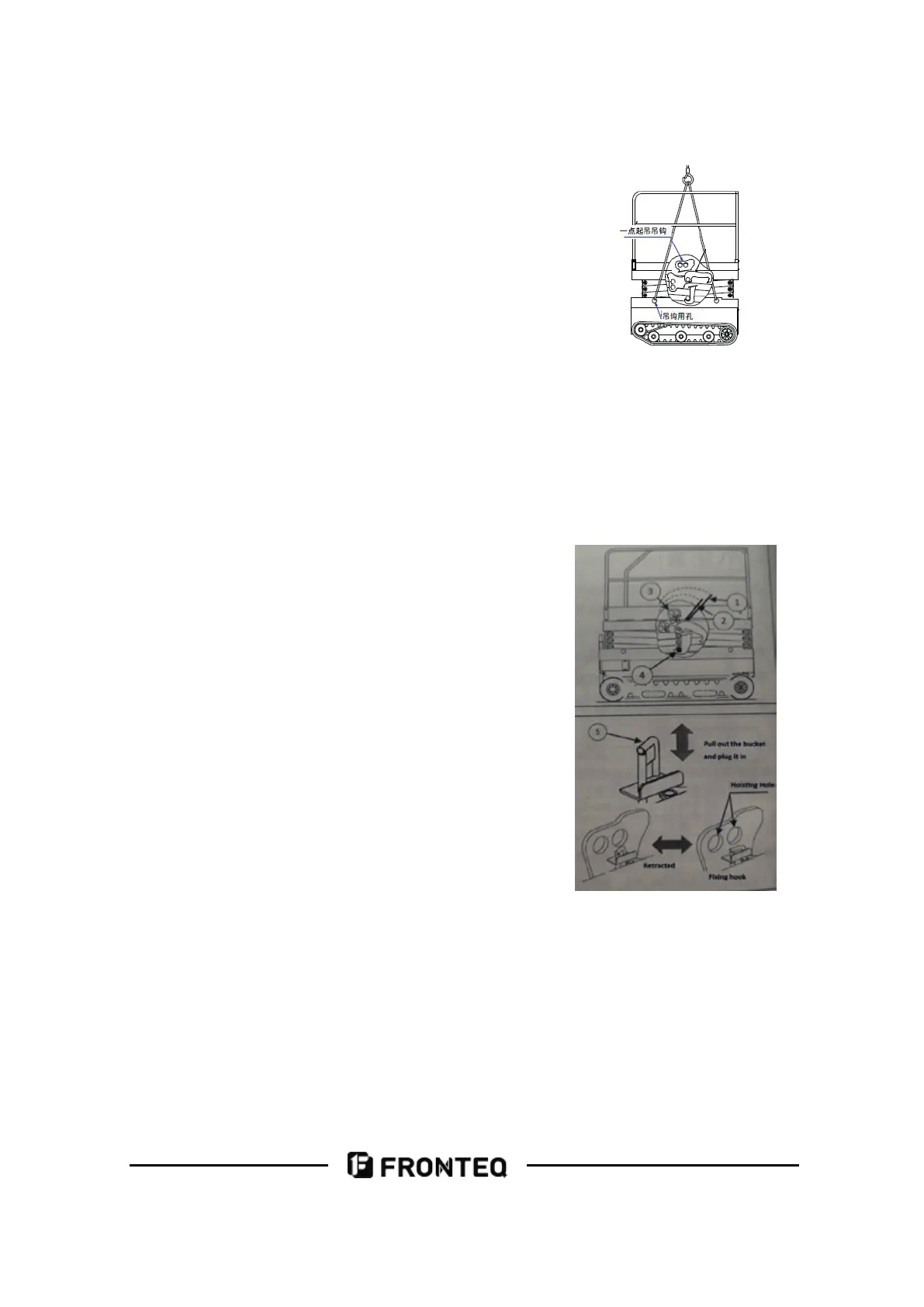

3.2.1Methods of one-point lifting
Please follow the instructions below when lifting.
1）Lower the platform to the lowest point, collapse the
extended platform and lock it.
2）Open the cover
② (sliding work platform only) at the
center of the platform and the inner cover
② .
3）Pull up the hook
③ , which is stored inside. At this
moment, it must be confirmed that the hook 3 does
hook the handle
④ .
4）After confirming that the hook is hooked on the
handle, remove the anti-off buckle
⑤ and insert it
into the hole on the side of the operating platform
and fix it. When the machine is hoisted, the hook
③ is
not fixed, which may cause the hook
③ to fall off and
the machine to fall.
5）When lifting, use the two lifting holes at the hook
③ .
6）For storage, take out the anti-drop buckle
⑤ from the side of the operation
platform and insert the hook. The hook
③ must be returned to the horizontal
position where it can be locked, and then the outer cover
② and the inner cover ②
are closed. Vehicle may be damaged when hook
③ is not horizontal.
