FM1012, FM1015 & FM1017 REAR & WING DECK DRIVES (WALTERSCHEID)

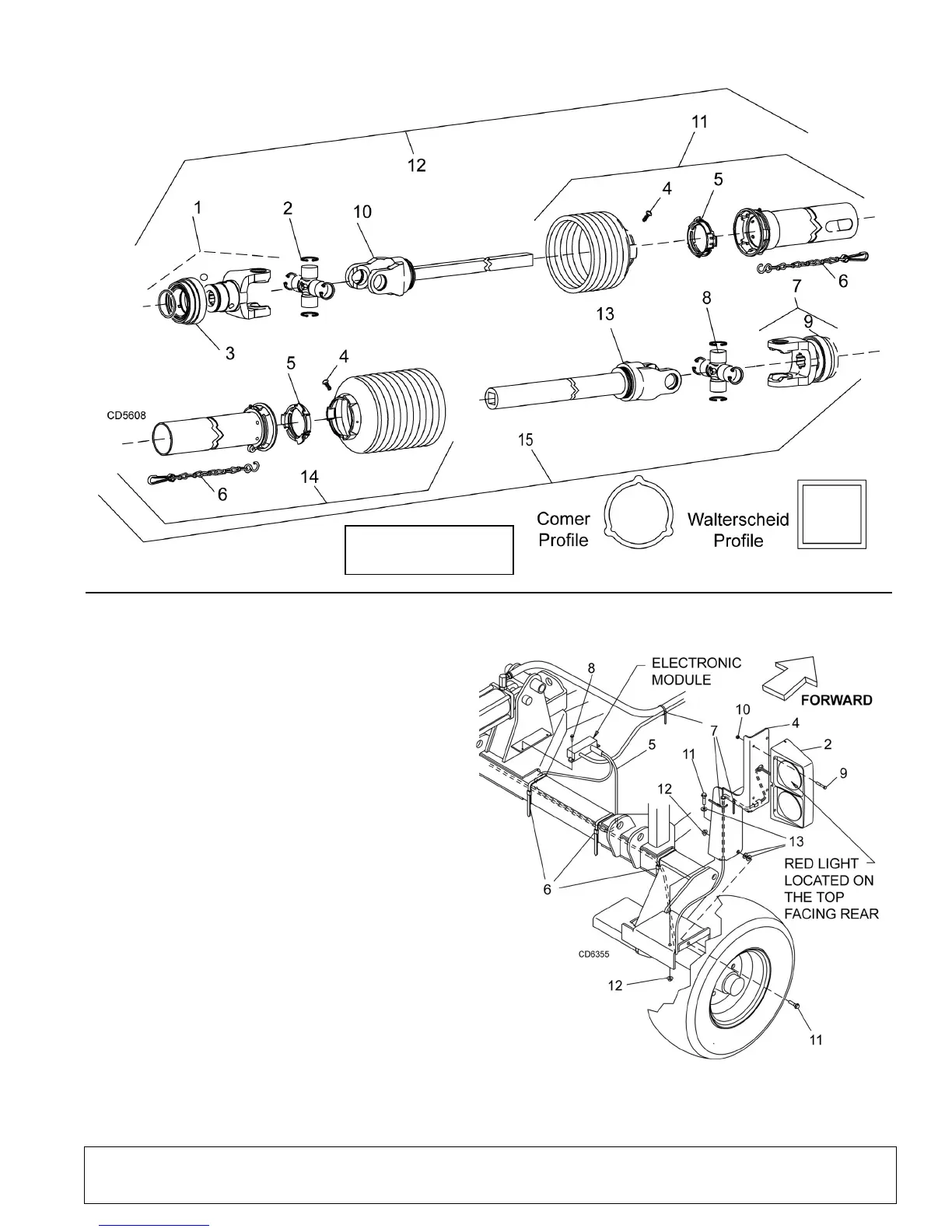

LIGHTING KIT
REF PART QTY DESCRIPTION
A 5WP1004486 - Lighting kit
1 5WP90401149 1 Lighting 4 pin LH
2 5WP90401150 1 Lighting 4 pin RH
3 5WP1004481 1 Light bracket LH
4 5WP1004480 1 Light bracket RH
5 5WP1004479 1 Wire harness
6 * - 356 mm (14 in) Tie strap
7 * - 178 mm (7 in) Tie strap
8 * - #10 x 1/2 Tapping screw
9 * - 1/4 NC x 1 Hex head cap screw GR5
10 * - 1/4 NC Lock nut
11 5WP62153 - 3/8 NC x 1 Hex hd cap screw flanged GR5
12 5WP14350 - 3/8 NC Flange lock nut
13 * - 3/8 Std Flat washer
* Obtain Locally
Check profile and order
from correct parts list.
