Frontier FM1015 - FM1012 Center Deck & FM1015 & FM1017 Center & Wing Deck Assembly

Parts 43
5WPMAN0183 (Rev. 7/9/2008)

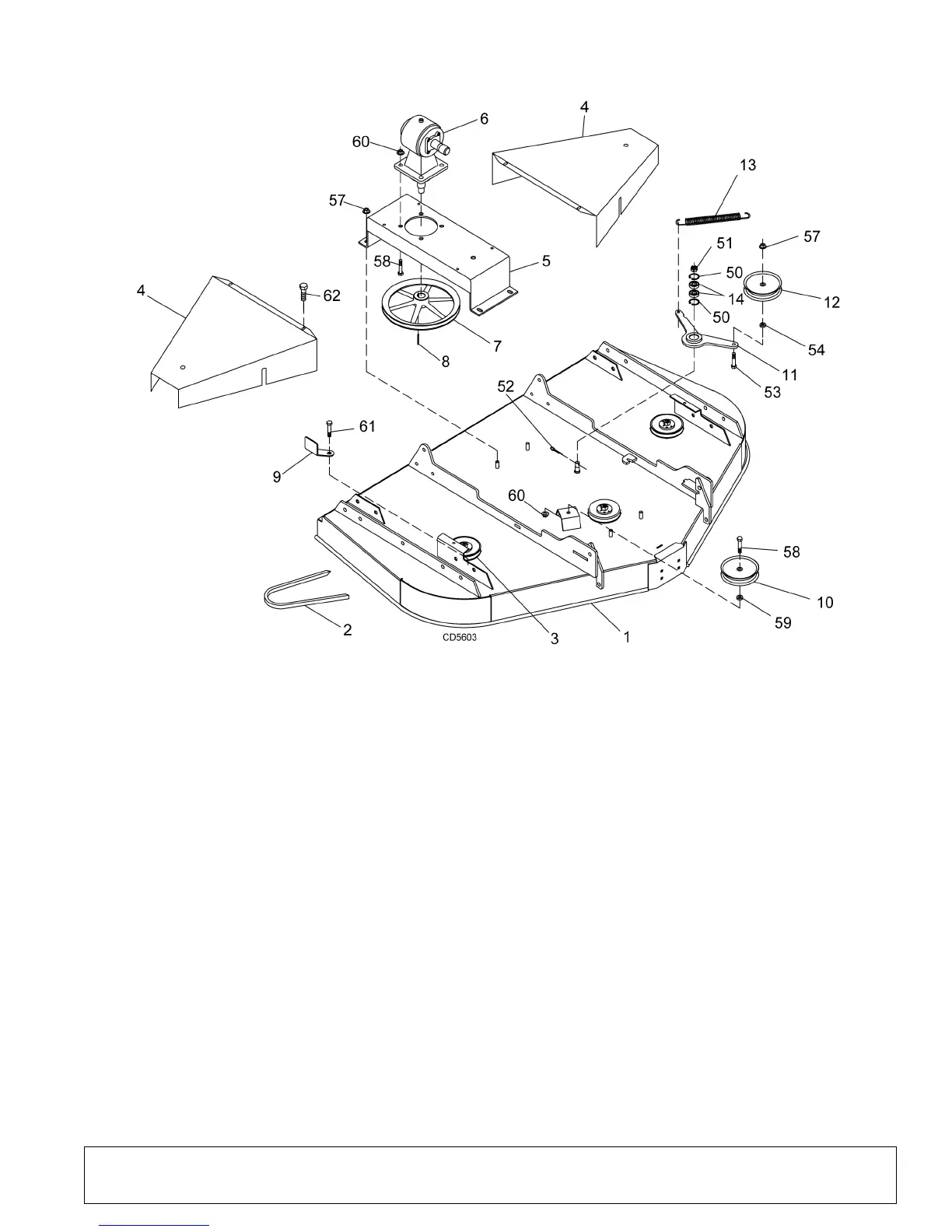

FM1012 CENTER DECK
FM1015 & FM1017 CENTER & WING DECK ASSEMBLY
REF PART QTY DESCRIPTION
1 5WP1000618 1 Deck, Weld asy 6 Foot (FM1015
center, FM1017 all) -or-
1 5WP1000617 1 Deck, Weld assembly 5 Foot
(FM1012 center, FM1015 wings)
2 5WP18879 1 V-Belt W112 (FM1015 center,
FM1017 all) -or-
2 5WP1001244 1 V-Belt W99 (FM1012 center,
FM1015 wings)
3 3 CW Spindle asy (See page 48)
4 5WP44635 2 Shield, Belt (FM1015 center,
FM1017 all) -or-
4 5WP44634 2 Shield, Belt (FM1012 center,
FM1015 wings)
5 5WP53534 1 Gearbox stand
6 5WP1002499 1 Gearbox, 1:1.92 (See page 47)
7 5WP65197 1 Sheave, Offset 12.4 P.D.
8 5WP29792 1 Key, HT 1/4 x 1/4 x 1-1/4
9 5WP53567 1 Guide, Belt 8 Ga formed
10 5WP64555 1 Idler, Flat 5.5 dia.
REF PART QTY DESCRIPTION
11 5WP58989 1 Idler arm assembly
12 5WP53595 1 Idler, Flat 5.0 Dia.
13 5WP67131 1 Spring, Ext .177 x 1.22 x 9.88
14 5WP35193 2 Bearing, Ball
50 5WP35141 Ring, Retaining int .062 x 1.56
51 5WP302178 Nut, Castle 5/8 NF
52 * Pin, Cotter 3/16 x 1-1/2
53 * Screw, HHCS 1/2 NC x 2-1/2 GR5
54 * Washer, Flat 1/2 standard
57 5WP11900 Nut, Flanged lock 1/2 NC
58 5WP19024 Screw, Flngd hex head 5/8 NC x 1-3/4
59 5WP1517 Washer, Flat .63 x 1.38 x 7 Ga
60 5WP19025 Nut, Flanged lock 5/8 NC
61 5WP4358 Screw, HHCS 1/2 NF x 1-1/4 GR5
62 5WP62153 Bolt, Flngd whiz 3/8 NC x 1
* Standard Hardware, Obtain Locally
