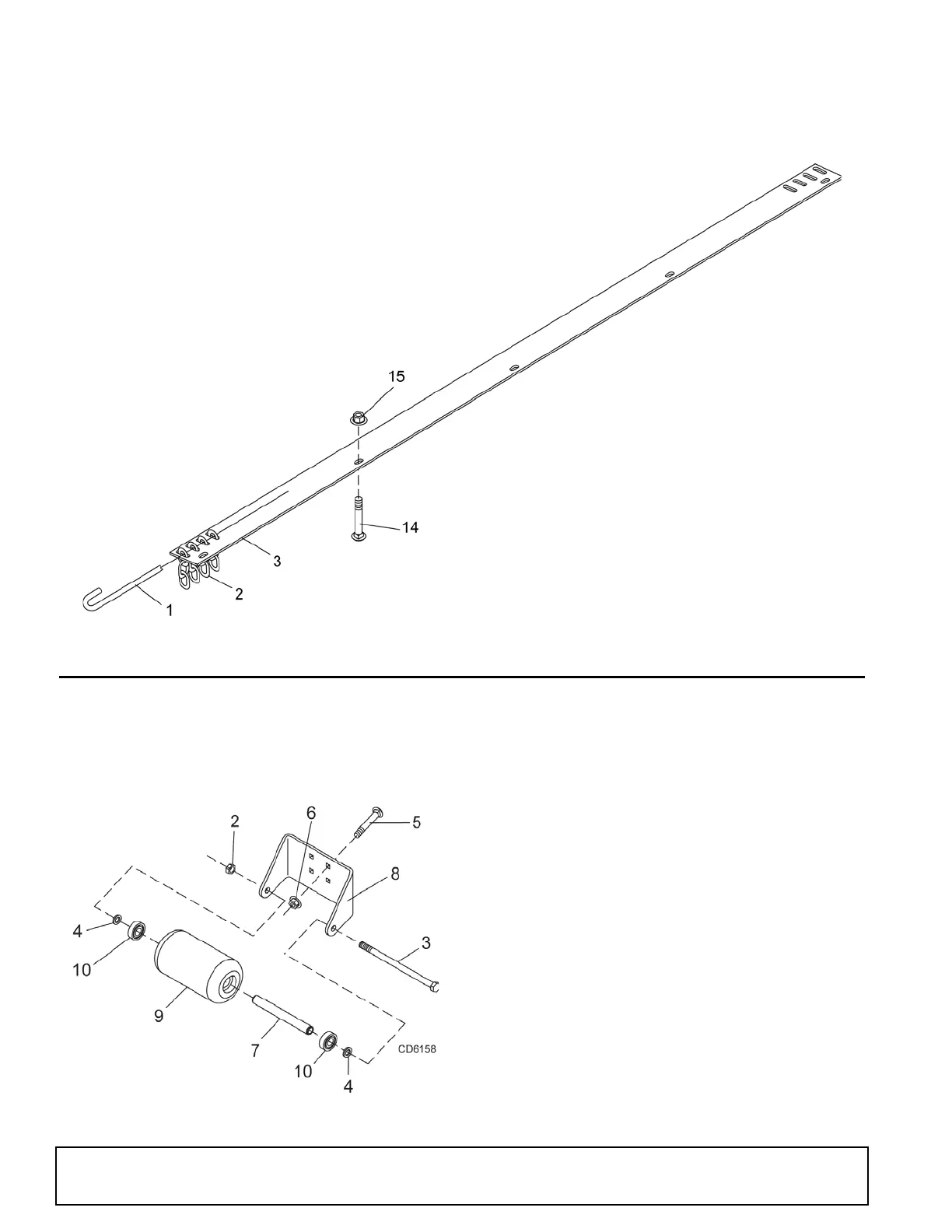

REAR CHAIN SHIELDING ASSEMBLY (OPTIONAL)
GM1060, GM1072 & GM1084 FRONT ROLLER ASSEMBLY (OPTIONAL)
REF PART QTY DESCRIPTION
A 5WD55348 - Chain Shield Assembly (GM1060)
B 5WD53566 - Chain Shield Assembly (GM1072)
C 5WD52856 - Chain Shield Assembly (GM1084)
1 5WP1007854 1 Pin, Chain (for GM1060 only) -or-
1 5WP1007856 1 Pin, Chain (for GM1072 only) -or-
1 5WP1007850 2 Pin, Chain (for GM1084 only)
2 5WP4763 - Chain, 3 Link, 1/4 Proof (use 54 for GM1060;
66 for GM1072; 78 for GM1084)
REF PART QTY DESCRIPTION
3 5WP55345 1 Shield, Chain Plate (for GM1060 only) -or-
3 5WP53554 1 Shield, Chain Plate (for GM1072 only) -or-
3 5WP52885 2 Shield, Chain Plate (for GM1084 only)
14 * Bolt, Carriage 3/8 NC x 1
15 5WP14350 - Nut, Flanged Lock 3/8 NC
* Standard Hardware, Obtain Locally
CD4997A
REF PART QTY DESCRIPTION
A 5WD1006417 1 Kit, Front Bearing, Roller & Bracket
2 5WP11900 1 1/2 NC Flanged Lock Nut
3 5WP38107 1 1/2 NC x 9 Cap Screw GR5
4 * 2 1/2 Flat Washer SAE
5 * 4 3/8 NC x 1 Carriage Bolt GR5
6 5WP70069 4 3/8 NC Flanged Whiz Nut
7 5WP1006420 1 Spacer, .75 x 7.27
8 5WP1006419 1 Bracket, Front Roller
9 5WP1006418 1 Roller, 4 x 7.38
10 5WP35193 2 Bearing
* Standard Hardware, Obtain Locally
