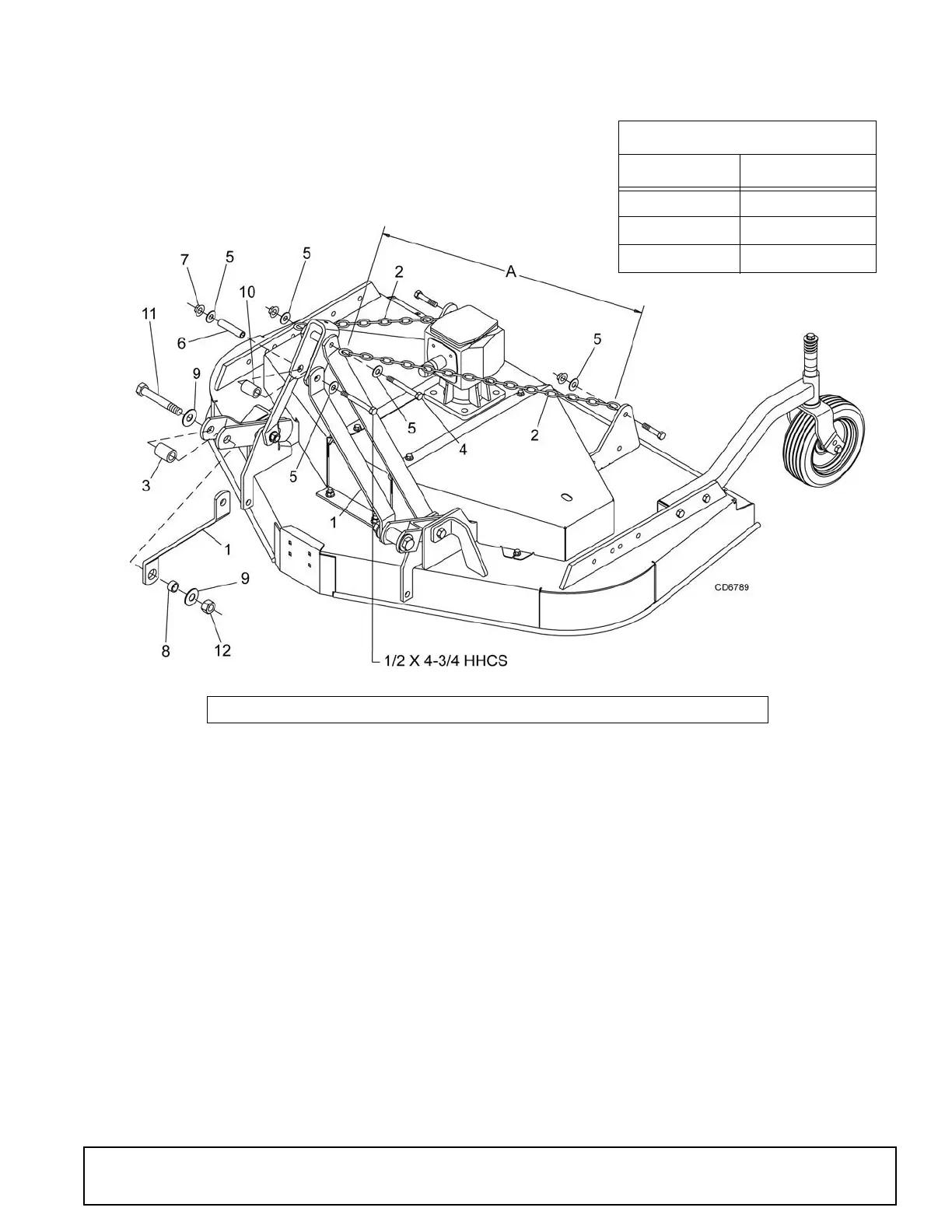

CHAIN CUT-TO-LENGTH CHART
Model Dimension “A”
GM1060 40"
GM1072 45"
GM1084 50"
NOTE:This kit is used on other models. Use only the hardware listed below.
REF PART QTY DESCRIPTION
A 5WD1005400 - Quick Hitch Kit, Complete
1 5WP1003692 2 Link, Offset .38 x 2.0 x 15
2 5WP1005401 2 Chain, 3/8 Proof Coil 38-Link
3 5WP1016517 2 Sleeve, .94 x 1.44 x 1.94"
4 5WP13563 1 Screw, 1/2 NC x 6 HHCS GR5
5 * 6 Washer, 1/2" Flat
6 5WP29368 1 Sleeve, .50 x .75 x 3.38"
7 5WP11900 1 Nut, 1/2 NC Flange Lock
8 5WP29281 2 Sleeve, 7/8 x 1-1/8 x 19/32" HT
9 * 4 Washer, 3/4 Flat
10 5WP1003614 1 Sleeve, .81 x 1.25 x 1.81
11 * 2 Screw, 3/4 NC x 4-1/2 HHCS
12 * 2 Nut, 3/4 NC Plated Hex
* Standard Hardware, Obtain Locally
