90º
0º
LOAD DIAGRAM
Ok
Good
Best
Ok
Good
90º
PERFORMANCE:
Static Tensile Strength: 5000-lbf (22kN)
Maximum Capacity: One worker with
max weight of 310-lbs when used as a
single point anchorage connector for
personal fall arrest or restraint system
DIMENSIONS:
Weight: .45-lbs (207g)
Length: 11” (279.4mm)
Diameter .75 (19mm)
REGULATORY COMPLIANCE:
ANSI Z359.18 Type A, ANSI Z359.7-2011
OSHA 1926.502, OSHA 1910.66,
EN 795:2012 Type B Class B (CE 2777)
COMPONENT MATERIALS:
Aluminum: Hole Plug, Trigger
Aircraft Cable: Main Cable, Activator Wire
Polyurethane: Loop Cover
Stainless Steel: Toggle Bar
Zinc Plated Steel: Spring
Zinc Plated Copper: Swage

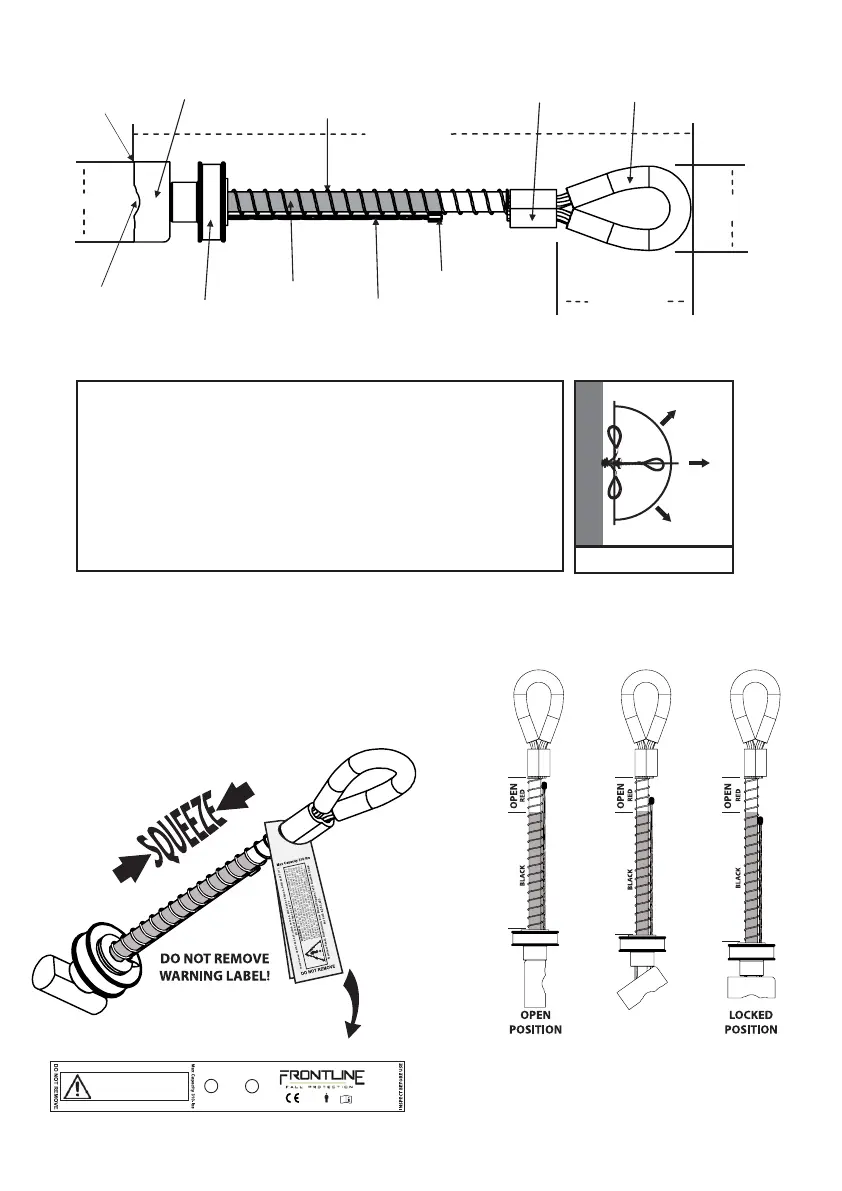

1.5” (38mm)
Hole Plug
Activator Wire
Ball Shank
11” (279.4mm)
Spring
Swage
Anchor Loop
2.8” (71.12mm)
1.7” (43.18mm)
Toggle Bar
Main Cable
.75”ø (20mm)
Indicator
UNSAFE
TOGGLE POSITION DIAGRAM
The indicator may be used as a means of determining
toggle position when view of toggle bar is obstructed by
the anchorage. If indicator is aligned with the red zone,
toggle bar is in open or unsafe position. If top of indicator is
below the red zone, toggle bar is in locked position.
Compliance: OSHA 1926.502, OSHA 1910.66, ANSI Z359.18 Type A, ANSI Z359.7(11)
EN 795:2012 Type B CE 2777
Anchor, 3/4”
Toggle Lok
Model: COT345K
Batch# RTL-XXX-XXX-XXXX
MFD: MM/YYYY
Stainless Steel, Aluminium, Zinc Plated Copper, 7x19 Aircraft Cable
Pat # US 8,353,653
WARNING: ALL PERSONS USING THIS EQUIP MENT MUST
READ AND UNDERSTAND ALL INSTRUC TIONS. FAILUR E TO DO
SO MAY RES ULT IN SERIOUS INJURY O R DEATH. USERS SHOULD
BE FAMILIAR WITH PE RTINENT RE GULATIONS GOVERNING THI S
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PR ODUCT MUST
BE PROPERLY INSTRUC TED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSIC AL HAZA RDS ( THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
2777
Compliance: OSHA 1926.502, OSHA 1910.66, ANSI Z359.18 Type A, ANSI Z359.7(11)
EN 795:2012 Type B CE 2777
Anchor, 3/4”
Toggle Lok
Model: COT345K
Batch# RTL-XXX-XXX-XXXX
MFD: MM/YYYY
Stainless Steel, Aluminium, Zinc Plated Copper, 7x19 Aircraft Cable
Pat # US 8,353,653
WARNING:
ALL PERS ONS USING THIS EQUIPMENT MUS T
READ AND UNDERSTAND ALL INS TRUCTIONS. FAILURE TO DO
DLUOHS SRESU .HTAED RO YRUJNI SUOIRES NI TLUSER YAM OS
SIHT GNINREVOG SNOITALUGER TNENITREP HTIW RAILIMAF EB
EQUIPMENT. ALL INDIVID UALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON H OW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). M AKE ONLY COMPATIBLE CONNECTIONS.
