*The user shall be equipped with
a means of limiting the maximum
dynamic forces exerted on the
user during the arrest of a fall to a
maximum of 8 kN (1800-lbf). In the
EU these forces must be limited to
6 kN (1350-lbf).
May be used as an anchor point for a leading edge
restraint system. See optional anchor points below
for example. The use of two anchors is not required for
leading edge restraint systems unless otherwise
WORK SURFACE
OPTIONAL
(ANCHOR POINTS)
WORK SURFACE
(ANCHOR POINT)
Concrete must be
3000-psi or higher and
fully cured. Installation
location to be approved
MINIMUM CLEARANCE 3ft (1m)
DECK/FLOOR/GROUND LEVEL
WARNING!!! SWING FALLS CAN OCCUR WHEN THE WORKER IS NOT DIRECTLY UNDER ANCHOR POINT.
All products subjected to fall arresting forces should be removed
from service immediately!
WARNING! Location of installation of the toggle anchor must be
with any and all structural & operational characteristics of the
selected installation location.

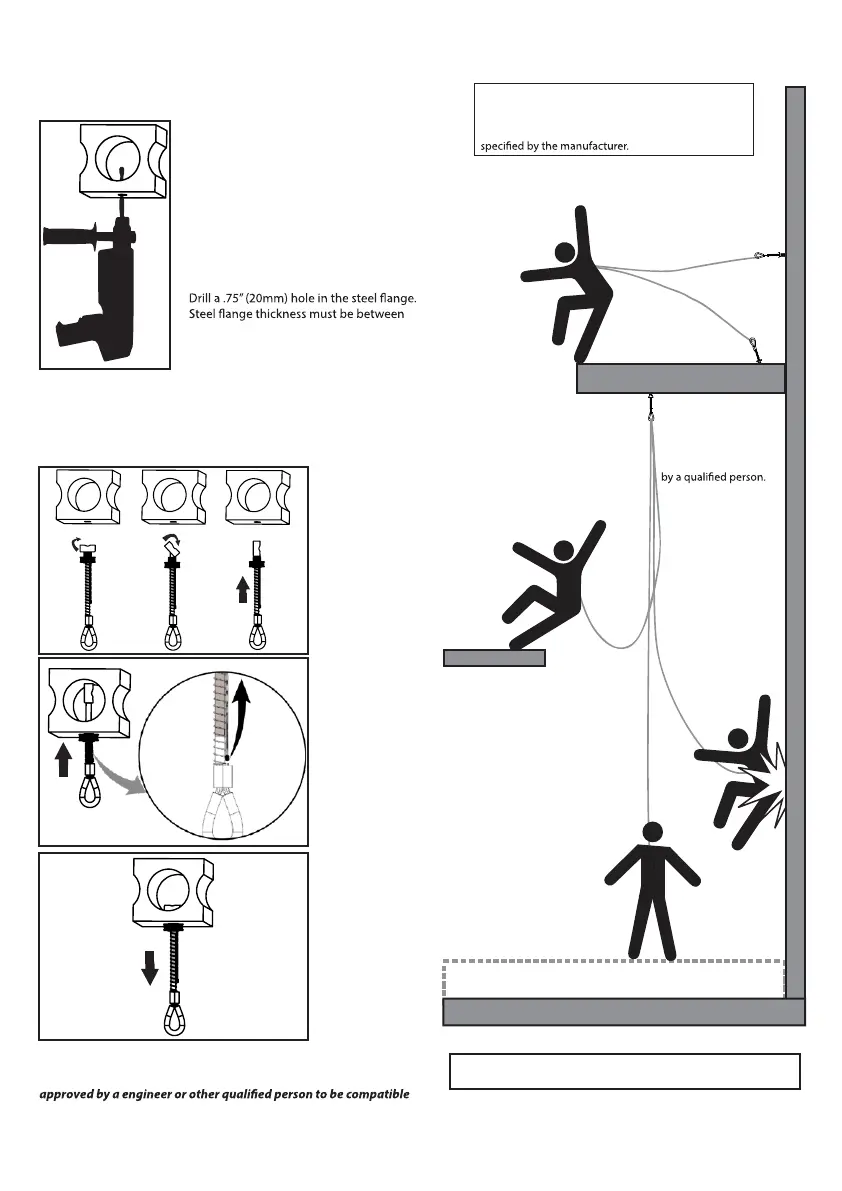

INSTALLATION INSTRUCTIONS:
FOR HOLLOW CORE CONCRETE:
Drill a .75” (20mm) hole in center of
the hollow channel in the hollow core
concrete. The hollow core concrete must
be at least 5,000-psi (34.5 MPa) concrete
with a web thickness between 1.75”
(45mm) and 3” (76mm). Works with 6“
hollow core or larger. Never drill any hole
closer than 6” (152mm) to any edge or
corner.
FOR STEEL:
.25” (6.4mm) and 3” (76mm). Never drill a
hole closer than 1.5” (38mm) to any edge
or corner.
Always inspect the hole carefully when reusing a previously drilled
hole.
1.
2.
3.
4.
Push anchorage
connector into
drilled hole and
engage toggle bar
by pushing
activator wire
towards hole plug.
Pull on anchor
loop and ensure
toggle bar is fully
seated in locked
position as seen in
the TOGGLE
POSITION
DIAGRAM. The
hole plug should
be fully seated in
drilled hole.
Rotate toggle bar
into open position
and insert into
hole.
