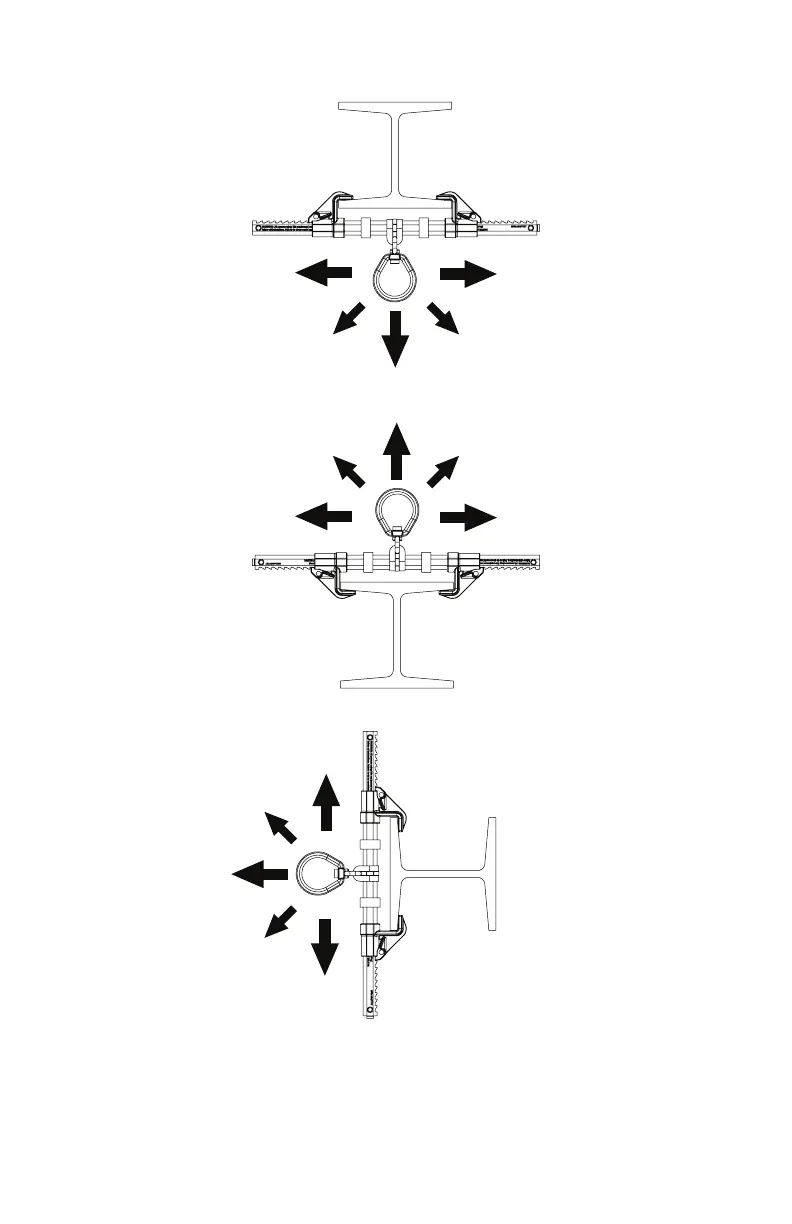

LOADING CONDITIONS DIAGRAM
Placement at or below a user’s working height requires integration of a compatible ANSI Z359.1
shock-absorbing lanyard that does not allow the user to extend more than 6 feet (in any direction)
from the anchorage connector before the shock absorber is activated. The beam anchor must be
attached to the I-beam ange facing the user (top ange if above, bottom ange if below, etc.).
