FS S5860 Series User Manual

S5860-48SC
Ports Description
RJ45
SFP+
SFP28
100M/1/2.5/5/10G ports for Ethernet connection
SFP+ ports for 1/10G connection
SFP28 ports for 10/25G connection
QSFP+
QSFP28
MGMT
QSFP+ ports for 40G or 4x 10G connection
QSFP28 ports for 40/100G connection
An out-of-band Ethernet management port
CONSOLE An RJ45 console port for serial management
USB
A USB management port for software and conguration backup and oine
software upgrade

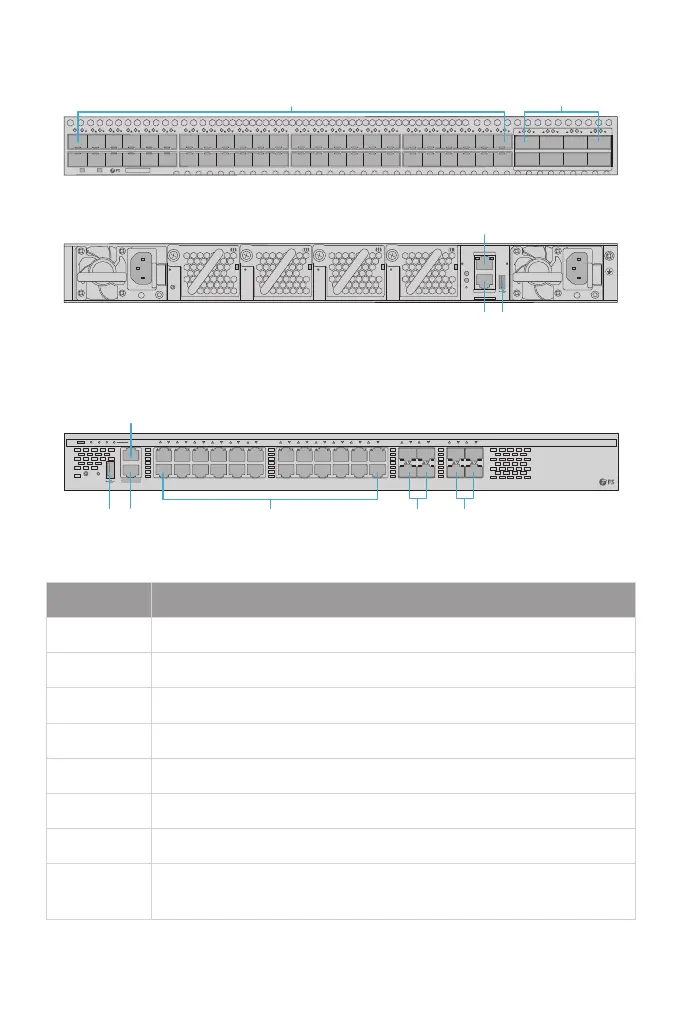

S5860-48SC
1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F 13F 14F 15F 16F 17F 18F 19F 20F 21F 22F 23F 24F 25F 26F 27F 28F 29F 30F 31F 32F 33F 34F 35F 36F 37F 38F 39F 40F 41F 42F 43F 44F 45F 46F 47F 48F
100G
49F 50F 51F 52F 53F 54F 55F 56F
Status ID
USB
CONSOLE
SFP+ QSFP28
Status Status Status
Status
FUNC
ID
Link ACT
Status
PWR1
PWR2
1 2 3
4
MGMT
CONSOLE
AFM-S48SC-FB AFM-S48SC-FB AFM-S48SC-FB AFM-S48SC-FB
MGMT
MGMT
S5860-24XB-U
USB CONSOLE RJ45 SFP+ SFP28
MGMT
SYS PWR FAN
PoE
1 2
3
4
5
6 7 8
9 10
11 12
13 14 15 16 17 18 19 20 21 22
23 24
25 26
27 28
29 30
31 32
PoE FUNC
S5860-24XB-U
Green=10G/5G/2.5G/1G On=Link Flashing=ACT PoE LED Mode:Green=Good Supply Yellow=Over Load
CONSOLE
Yellow=100M

FS S5860 Series Specifications

General

Category	Switch
MAC Address Table Size	128K
Series	S5860
Operating Temperature	0°C to 45°C
Dimensions	440mm x 400mm x 43.6mm (17.32in x 15.75in x 1.72in)
VLAN Support	4096
Storage Temperature	-40°C to 70°C
Jumbo Frame	9K
