FS S5860 Series User Manual

MGMT
CONSOLE
STATUSPWR1 PWR2 FAN MGMT ID
21
43 65 87 109 1211 1413 1615
1817 19
FUNC
WARNING: Laser beams will cause eye damage. Do not look into bores of optical modules
or optical bers without eye protection.

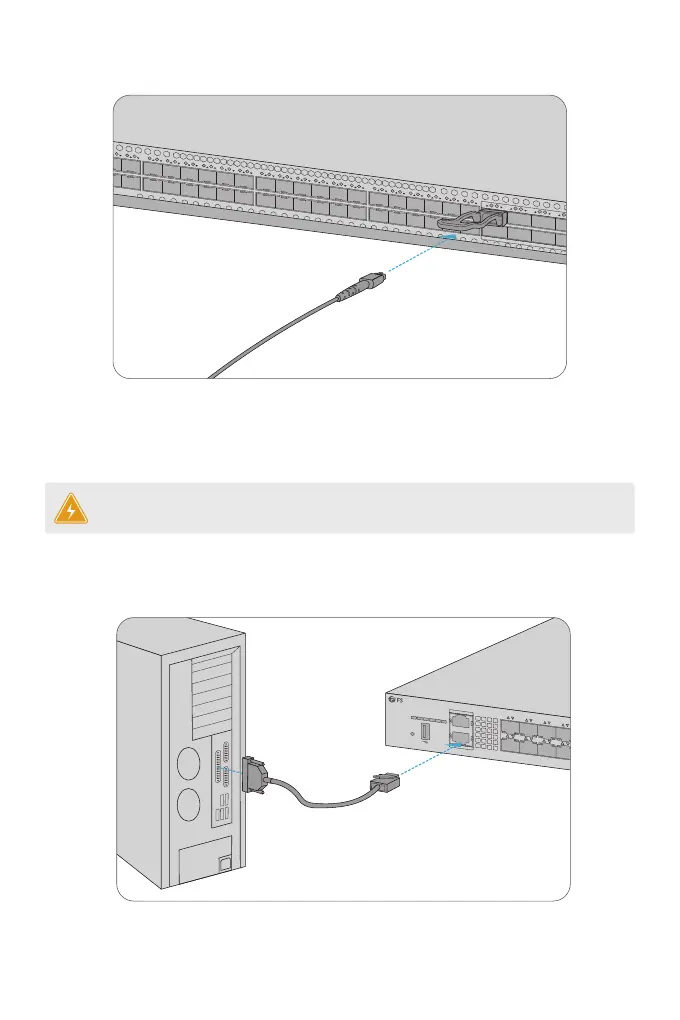

1. Plug the compatible QSFP28 transceiver into the QSFP28 port.
2. Connect a ber optic cable to the ber transceivers. Then connect the other end of the cable to
another ber device.
Connecting the QSFP28 Ports
S5860-48SC
1F 2F
3F 4F
5F 6F
7F 8F
9F 10F
11F 12F
13F 14F
15F 16F
17F 18F
19F 20F
21F 22F
23F 24F
25F 26F
27F 28F
29F 30F
31F 32F
33F 34F
35F 36F
37F 38F
39F 40F
41F 42F
43F 44F
45F 46F
47F 48F
100G
49F 50F
51F 52F
53F 54F
55F 56F
Status ID
1. Insert the RJ45 connector into the RJ45 console port on the switch.
2. Connect the DB9 female connector of the console cable to the serial port on the computer.
Connecting the Console Port

FS S5860 Series Specifications

General

Category	Switch
MAC Address Table Size	128K
Series	S5860
Operating Temperature	0°C to 45°C
Dimensions	440mm x 400mm x 43.6mm (17.32in x 15.75in x 1.72in)
VLAN Support	4096
Storage Temperature	-40°C to 70°C
Jumbo Frame	9K
