FSI BM Series User Manual

© 2014 Flanders Scientic, Inc.
5
Return to Table of Contents

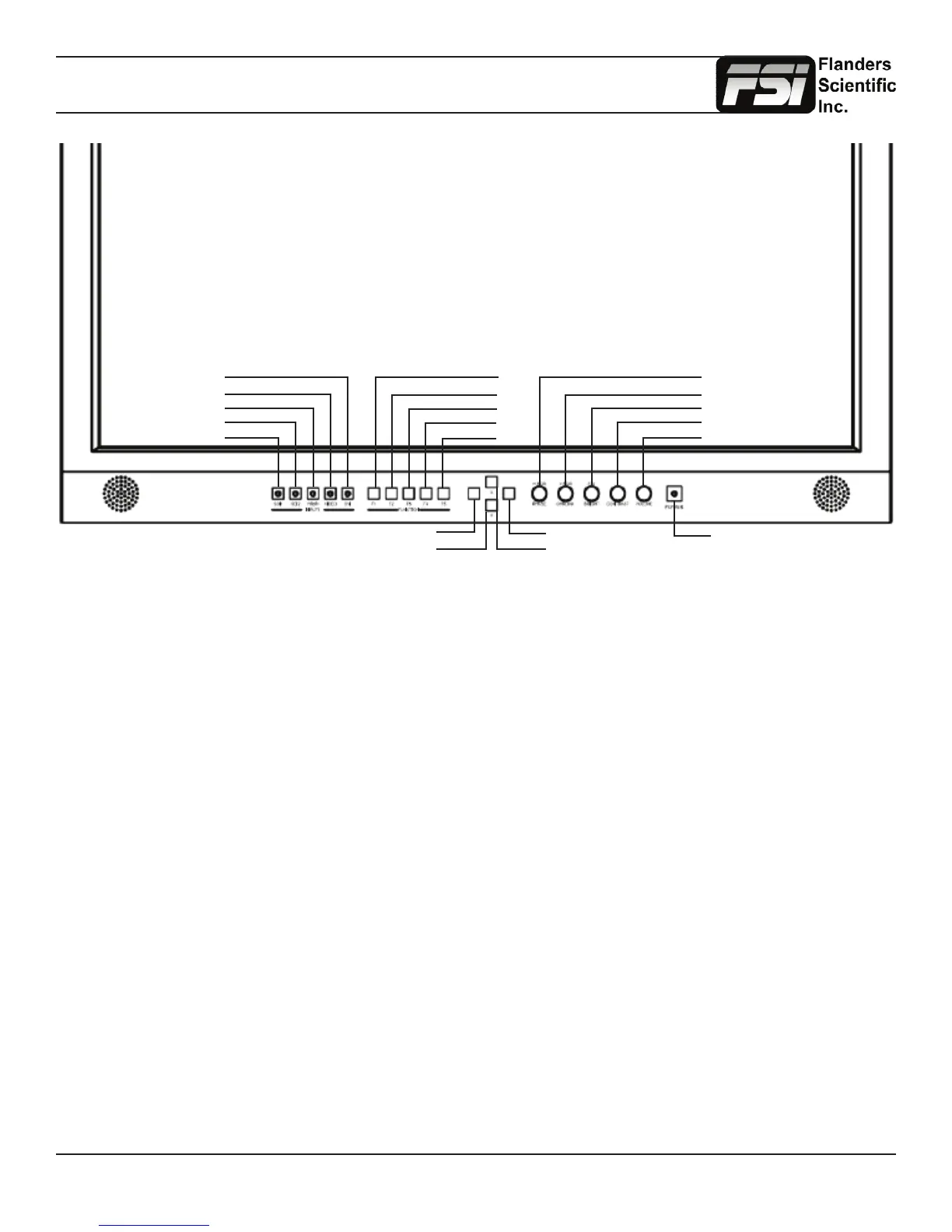

Parts & Their Functions
• SDI 1: Used to select SDI Input 1 as the active Input.
• SDI 2: Used to select SDI Input 2 as the active Input.
• YPbPr: Used to select the Component Analog Input as the active Input.
• VIDEO: Used to select the Composite Analog Input as the active Input.
• DVI: Used to select the DVI-I Input as the active Input. DVI-Digital / DVI-Analog toggle is available in the System Menu
(Menu/System/DVI Selection).
• F1: Assignable function key. This key’s function is selectable from the Function Menu.
• F2: Assignable function key. This key’s function is selectable from the Function Menu.
• F3: Assignable function key. This key’s function is selectable from the Function Menu.
• F4: Assignable function key. This key’s function is selectable from the Function Menu.
• F5: Assignable function key. This key’s function is selectable from the Function Menu.
• MENU: Used to enable On Screen Menu.
• UP: Used in combination with DOWN and ENTER Keys to navigate On Screen Menu.
• DOWN: Used in combination with UP and ENTER Keys to navigate On Screen Menu.
• ENTER: Used in combination with UP and DOWN Keys to navigate On Screen Menu. The ENTER button is used to
conrm selections within the On Screen Menu.
• POWER: Used to turn power on/off.
• VOLUME: Used to adjust volume. Press down on this knob to instantly mute or unmute the volume.
• CONTRAST: Used to adjust contrast higher or lower. Pressing down on the center of this button will return the contrast
setting to its default position.
• BRIGHT / F.D. / Ref POS: Used to adjust brightness higher or lower. Pressing down on the center of this button will
return the brightness setting to its default position. The brightness knob should NOT be used increase the overall peak
white luminance of the unit, use the Luminance setting on the System Menu to adjust overall luminance.
• CHROMA / V POS: Used to adjust chroma higher or lower. Pressing down on the center of this button will return the
chroma setting to its default position.
• PHASE / H POS: Used to adjust phase. Pressing down on the center of this button will return the setting to default. Hue
is locked by default on SDI, but can be unlocked by the SDI Hue Adjustment option on the System Menu.
• Tally: Three color tally lamp controlled via remote control.
DVI
VIDEO
YPbPr
SDI 2
SDI 1
F1
F2
F3
F4
F5
ENTER
UP
MENU
DOWN
PHASE / H POS
CHROMA / V POS
BRIGHT / Ref POS
CONTRAST / F Stop
VOLUME / Reset
POWER
