FSN IPS710A - Connecting Inputs and Outputs IPS710 A; Port Descriptions and Labels

16
10/2021
21
2))
0,&,1
'9,,1387
021,725287
56&
&$3785(
5(&25',1 287
&9%6
,1387
*6',
,1387
*6',
/223287
9$&
+]
/,1(
3('$/
$6 $6
5(&25' 0(18
(17(5
&$3785( 3$7,(17
32:(5
5(: ):'
6723
3/$<3$86(
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17 18
19
20
21
25
26
27
28
29
30
22
23
24

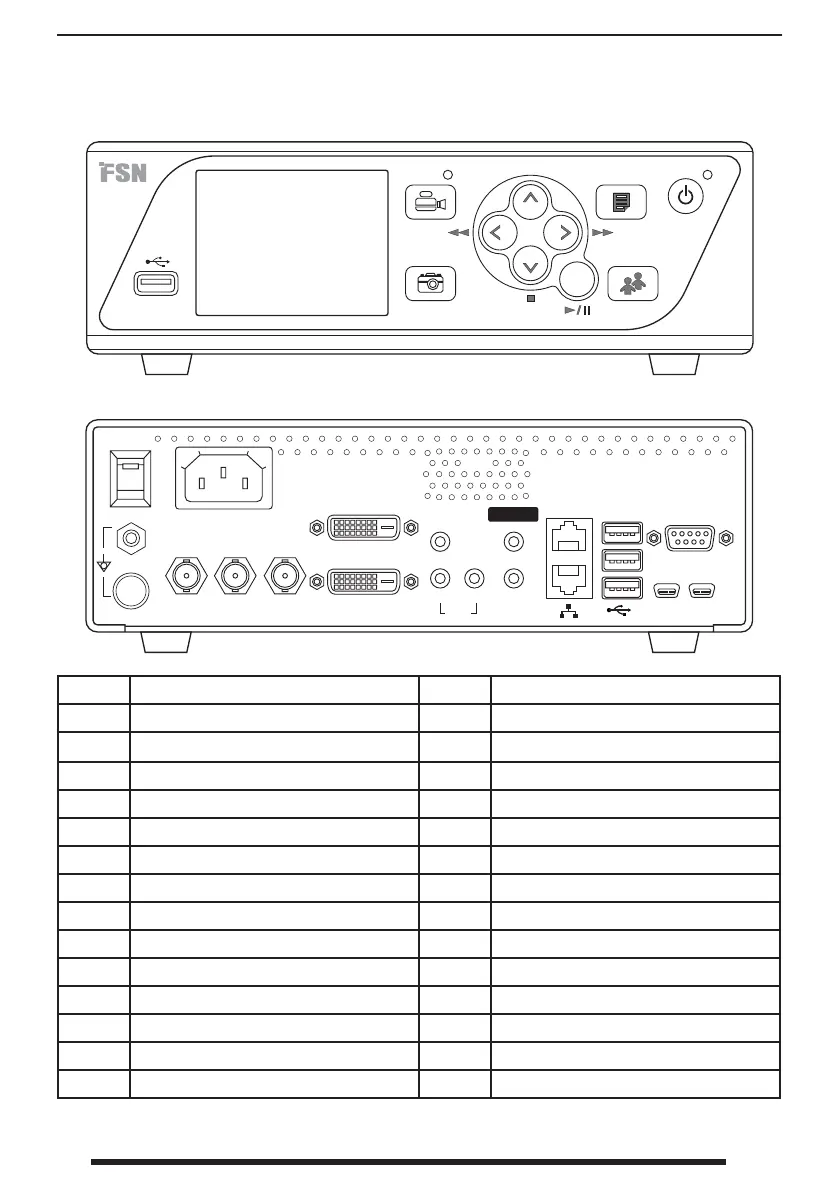

Connecting Inputs and Outputs IPS710A
1 USB (USB 2.0) 16 CVBS in (BNC-75)
2 LCD (3.5” TFT color) 17 3G-SDI in (BNC-75)
3 Record button 18 3G-SDI loop through out (BNC-75)
4 Capture button 19 Monitor out (DVI-D, 1080p)
5 Left/Rewind button 20 DVI input (DVI-D, up to WUXGA)
6 Up button 21 MIC in (3.5ø phone)
7 Down/Stop button 22 Line(audio) in (3.5ø phone)
8 Right/Forward button 23 Speaker
(function alarm / playback sound)
9 Enter/Play/Pause button 24 Line(audio) out (3.5ø phone)
10 Menu button 25 Pedal input (capture, 3.5ø phone)
11 Patient button 26 Pedal input (recording, 3.5ø phone)
12 Power button 27 Network port (RJ45)
13 AC On/O switch (On - green LED) 28 USB (2.0) for keyboard, mouse, touchscreen, printer*
14 Earth terminal 29 RS-232C (D-SUB9)
15 AC inlet (100-240 volts AC) 30 Service port (mini USB)
* Contact FSN Medical Technologies for a list of supported USB touchscreens and printers.
