DIAMENSION
Class-A Automatic Identification System
FT-8800
ALM
RXD
TXD
ENTCLR
MENU
WPT
POWER
CE
SCAN DUAL LOW
VOL SQL
UIC
URCY
MSG

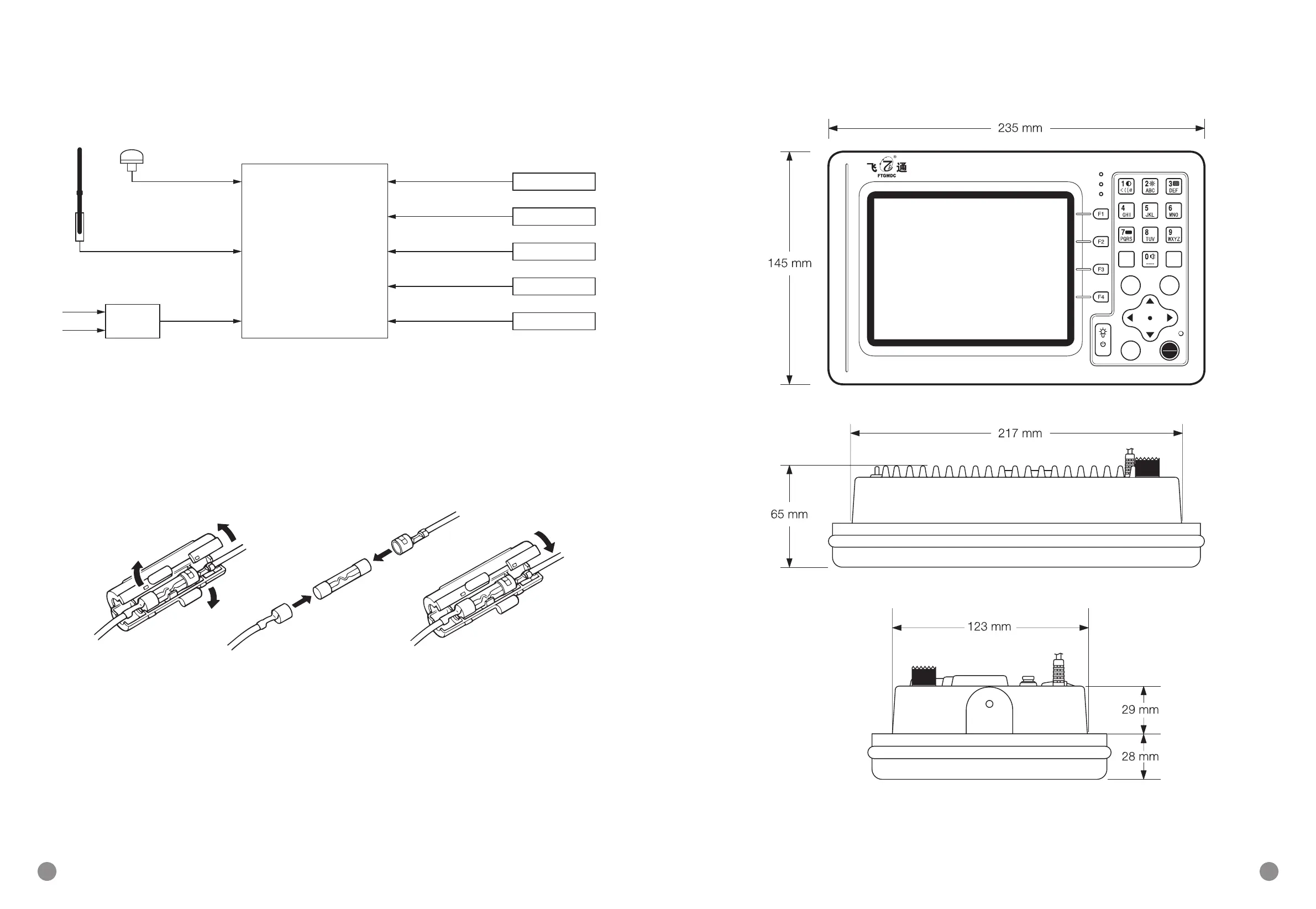

8. MAIN SET CONNECTION AND MAINTENANCE
■
INSTALLATION DIAGRAM
4800b/s 0183 HDG Input
GYRO Compass
4800b/s 0183 GPS Input
GPS Signal
RS-422 38400b/s
AIS Data Output
ECDIS
RS-422 4800b/s
GPS Data Output
Radar
Alarm Switch
DC 24V
External Alarm
AC 220V
DC 13.8V/6A Input
GPS Antenna
VHF Antenna
FT-8800
(Main Set)
Power
Stabilizer
■
CLEANING
Use soft cloth to remove dust only and the chemical solvent or alcohol is prohibited.
■
FUSE REPLACEMENT
If fuse is burn or main set stop operate, you need to check and replace fuse in the
fuse cover.
