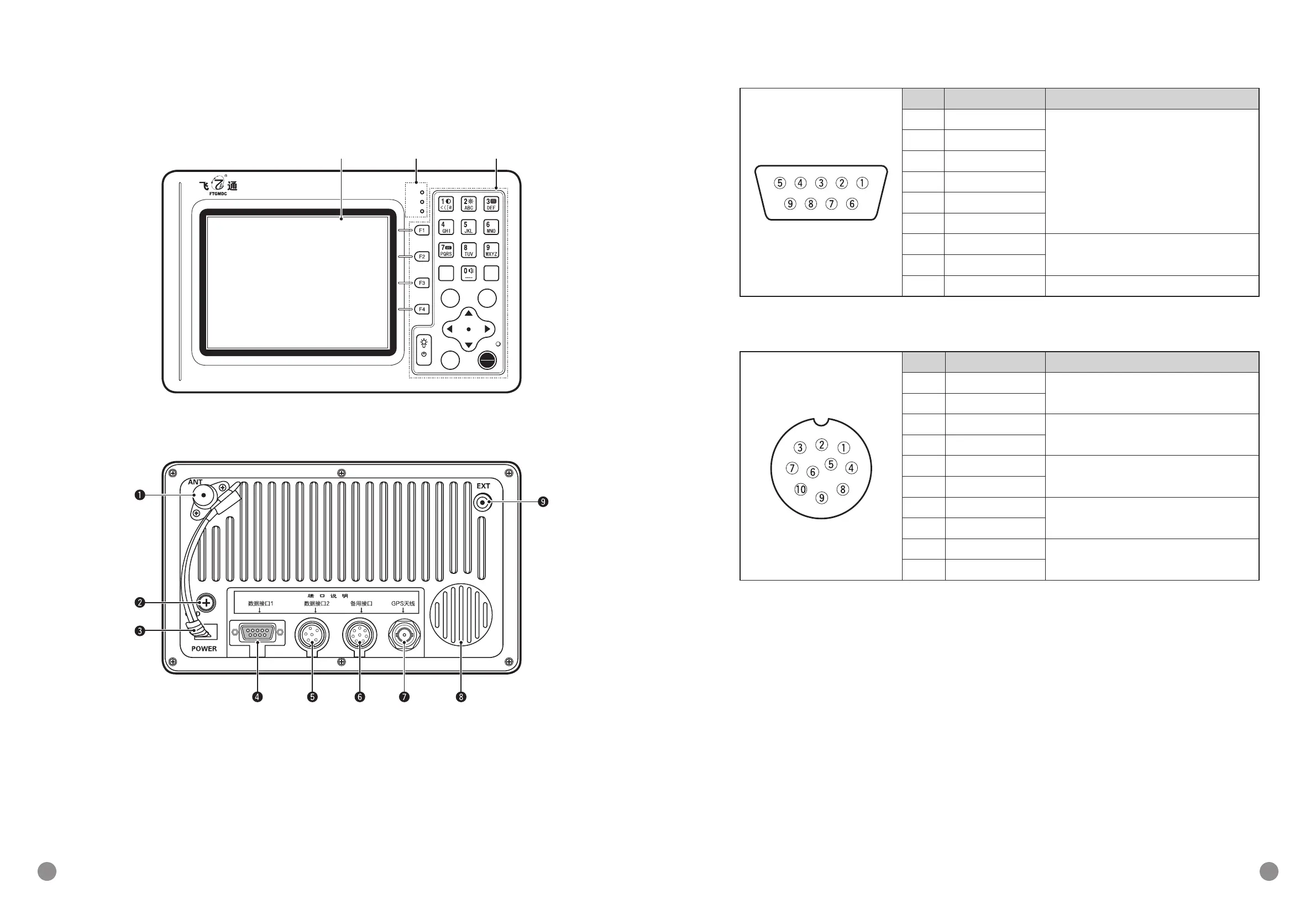

FTGMDC FT-8800 - MAIN PANEL LAYOUT; Front, Rear, and Data Ports

4 5
D
DATA PORT 1
PIN DEFINITION FUNCTION
1 AIS data Rx+
RS-422 38400 b/s
AIS data input/output port
2 AIS data Rx-
3 AIS data Tx+
4 AIS data Tx-
5 GND
6 GND
7 Up grade
Software upgrading
8 Up grade
9 +5VDC +5VDC output
D
DATA PORT 2
PIN DEFINITION FUNCTION
1 NMEA+
4800b/s 0183 signal GPS input
2 NMEA-
3 NMEA-
4800b/s 0183 signal GYRO input
7 NMEA+
4 TXD-
RS-422 38400b/s AIS data output
8 TXD+
9 TXD-
RS-422 4800b/s 0183 signal GPS
data output
10 TXD+
5 Alarm
Contact point for external alarm
6 Alarm
4. MAIN PANEL
■
FRONT PANEL
Class-A Automatic Identification System
LCD Display LED Indicator Keypad
FT-8800
ALM
RXD
TXD
ENTCLR
MENU
WPT
POWER
CE
SCAN DUAL LOW
VOL SQL
URCY
MSG
■
REAR PANEL
q
VHF ant port
w
Gound
e
Power connector
r
Data port 1(AIS input/output)
t
Data port 2(AIS/GPS/Alarm)
y
Spare
u
GPS ant port
i
Speaker
o
Audio output
