Before operating your Rotary Cutter, make sure it is properly lubricated and thoroughly inspected. Only a
minimum of time and effort is required to regularly lubricate and maintain this machine to provide long life and
trouble free operation.
WARNING! Always disengage the PTO before raising the Rotary Cutter for transporting or making
adjustments.
LUBRICATION INFORMATION
Do not let excess grease collect on or around parts, particularly when operating in sandy areas. The
illustrations below shows lubrication points. The chart gives the frequency of lubrication in hours, based on
normal operating conditions. Severe or unusual conditions may require more frequent lubrication. Figure 1
Use an SAE multi-purpose, lithium-type grease for all locations shown. Be sure to clean the fitting thoroughly
before using grease gun. Daily lubrication of the driveline slip joint is necessary. Failure to maintain proper
lubrication will result in damage to U-joints, gearbox, and/or driveshaft.
ITEM DESCRIPTION FREQUENCY
1 Driveline U-Joints 8 hours
Driveline Telescoping 8 hours
2 Gearbox Check daily
3 Wheel Hubs Weekly
4 Shield Bearings 16 hours
5 Tailwheel Beam 8 hours

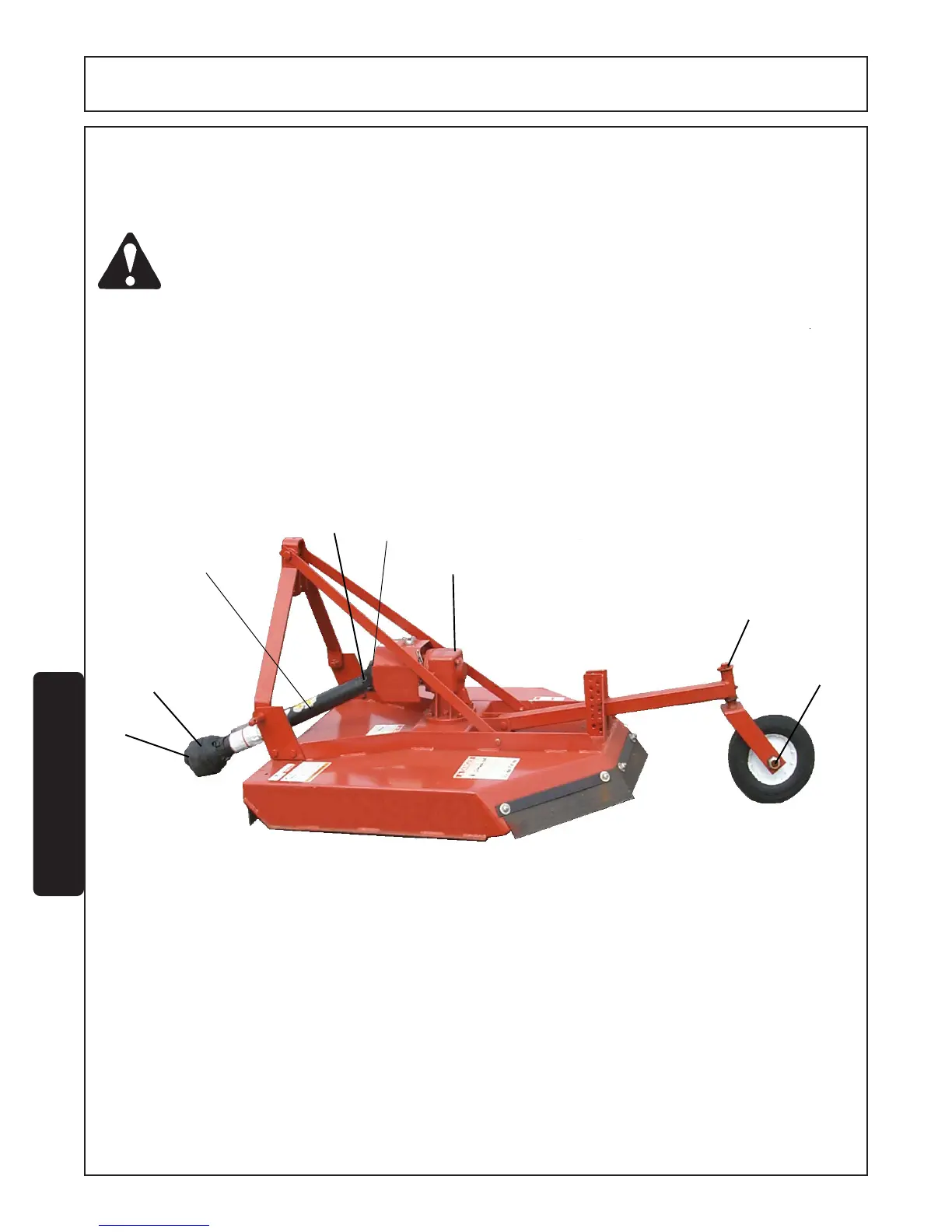

FIGURE 1. Lubrication Location
5
3
2
4
1
1
4
1
