MAINTENANCE
The Driveline Integral Shields should not become dented or otherwise damaged. The Integral Shield
Assembly has a Nylon Bearing at each end and should turn freely. This nylon bearing should require
lubrication every 8 hours. To remove the Integral Shields for replacement or repair, turn the three Nylon Nuts
1/4 turn in the Shield Slots of the Cone and Tube and remove them. Slip the Shield Cone Assembly off inner
section of the Driveline. Install the new or repaired Shield on the Driveline. Place the split Nylon Bearing
over the Driveline Housing of Shaft against the Yoke and in the Bearing groove. Install shield over the
Housing so the Nylon Bearing fits into the Shield Bearing Retainer. Align a slot in the Shield Cone with one of
the slots in the Shield. Put one of the Nylon Nuts back in through the aligned slots and turn until it is
perpendicular to the slots. Add the other two Nylon Nuts.
CAUTION! Make certain that the Driveline Integral Shields are free to telescope and rotate around the
Driveline without binding.

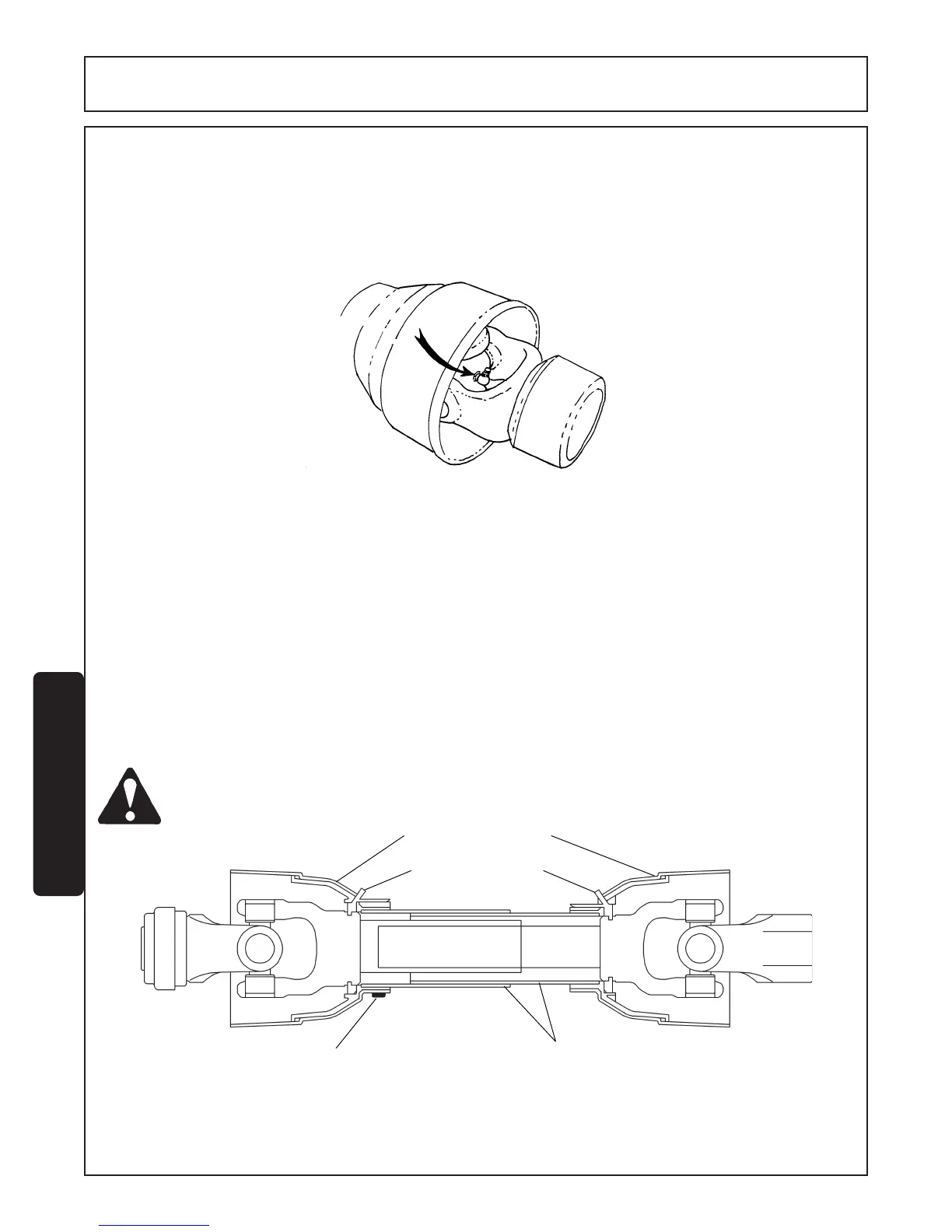

FIGURE 4. Driveline Maintenance
FIGURE 3. Driveline U-joint Lubrication.
DRIVELINE LUBRICATION
Grease Fittings are located on the Cross Assembly of each U-Joint and on the telescoping tubes. Grease the
U-Joint after each 8 hours of use. Figure 3. Do not force grease through the Needle Cup Assemblies.
Grease the telescoping tubes after every 8 hours use. To grease profile tube, disconnect drive from PTO and
pull halves apart. Pump grease into outer profile tube and reinstall together. Lubricate the shield bearings
every 16 hours.
DRIVELINE SHIELD
TELESCOPING TUBES
NYLON BEARING
NYLON NUT
