Paper Jams
527
Problem Solving
14

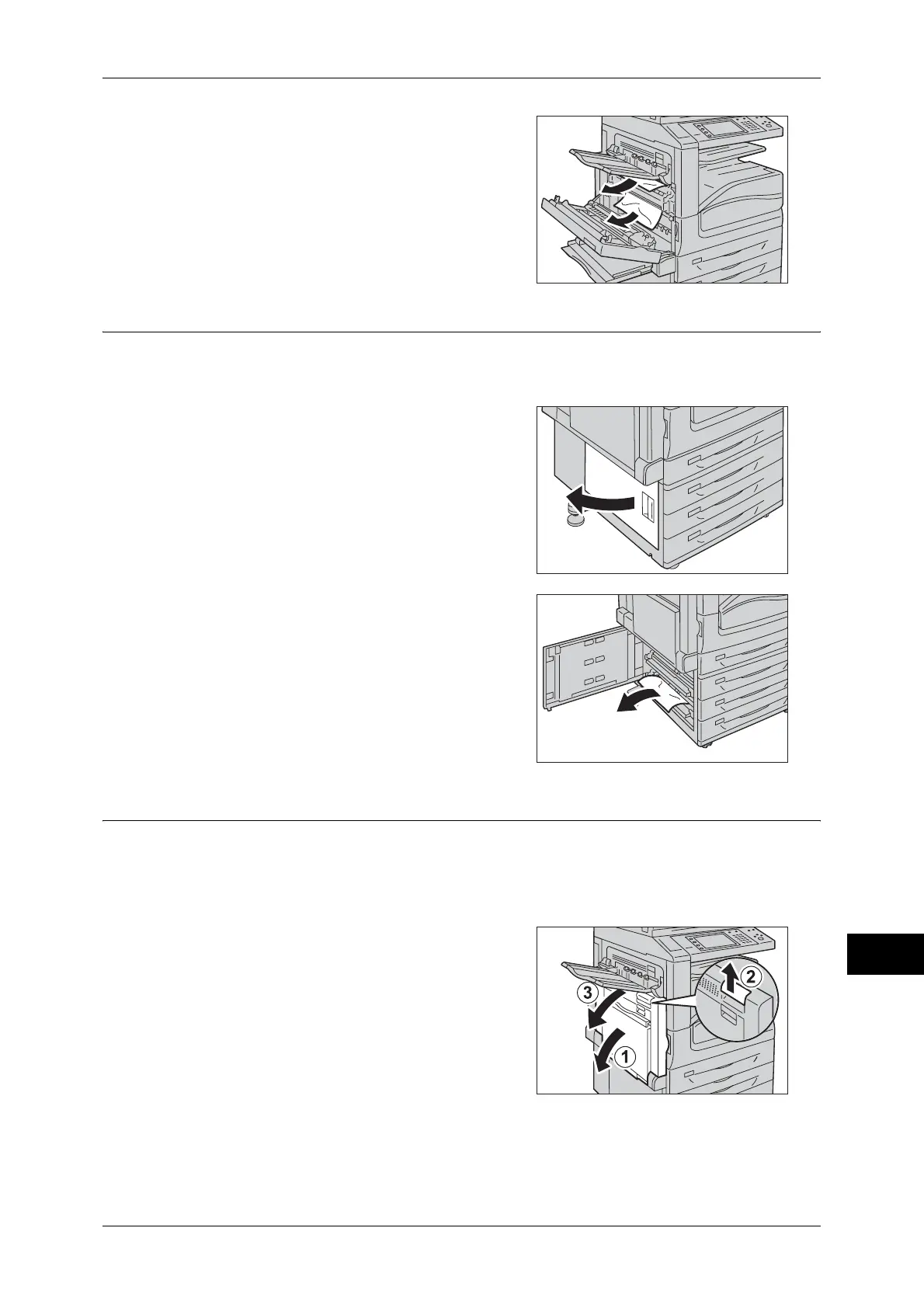

4 If paper is jammed in the Fusing Unit, gently
remove the paper to avoid it to be torn.
5 Push the center of the top left cover and
close the cover gently, and then close Tray
5.
Paper Jams in Bottom Left Cover C
The following describes how to clear paper jams occurring in the bottom left cover.
1 Gently open the bottom left cover while
pulling the release lever.
2 Remove the jammed paper.
Note • Paper may be jammed in the hidden area
on the upper position. Check inside
thoroughly.
• If the paper is torn, make sure no piece of
paper remains inside the machine.
3 Close the bottom left cover gently.
Paper Jams in Top Left Cover D
The following describes how to clear paper jams occurring in the top left cover.
Important • Do not touch the black film like Transfer Belt inside the top left cover when you remove the
jammed paper because images might be shifted on the Transfer Belt. If you touch the belt,
the image quality might be deteriorated or the belt may be damaged and need replacement.
1 Open Tray 5 (1), and then while lifting up the
release lever (2) gently open the top left
cover (3).
