Interface Cables
21

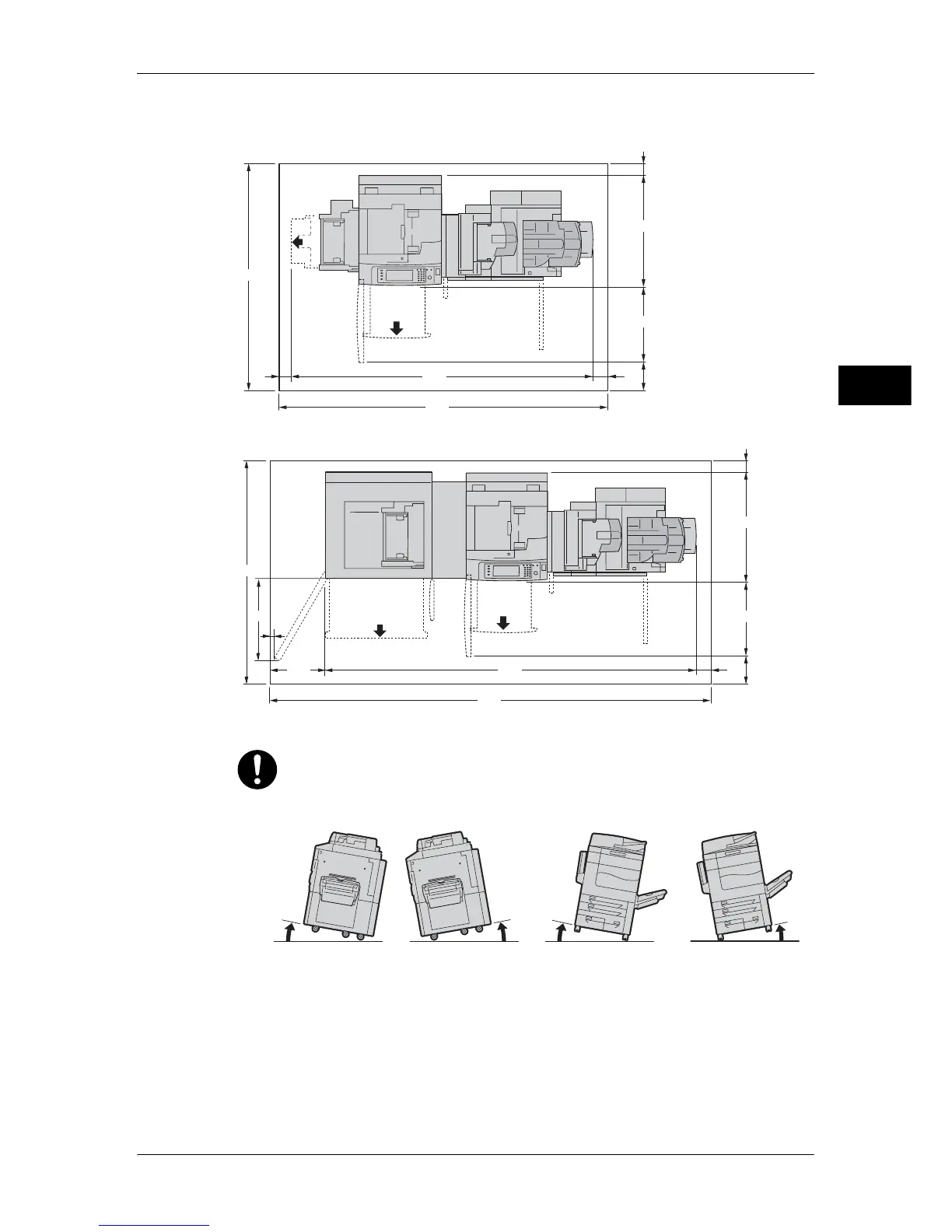

Before Using the Machine
1
Using the Ethernet Interface
The Ethernet interface of the machine supports the following three types.
z
1000BASE-T
z
100BASE-TX
z
10BASE-T
Note • 1000BASE-T is not supported for some models. An optional component is required.
This section describes the installation procedures for the Ethernet interface.
1 Press the power switch to the [ ] position to switch off the power.
2 Make sure that the touch screen is blank and the <Energy Saver> button does not
light up.
3 Open the front cover.
4 Press the main power switch to the [ ] position to switch off the main power.
5 Remove the rear right cover.
6 Connect the network cable to the Ethernet interface connector.
z
When the Gigabit Ethernet Board Kit (optional) is installed
z
When the Gigabit Ethernet Board Kit (optional) is not installed
Note • Always use the correct network cable with your network connection. When you replace the
cable, contact our Customer Support Center.
