Replacing Consumables
Replacing Drum Cartridges (R1-Black / R2-Cyan / R3-Magenta / R4-Yellow)
CAUTION: Do not expose the Drum Cartridge to the direct sunlight or strong indoor
fluorescent lighting. Do not touch or scratch the surface of the Drum. The Drum Cartridge
can be replaced with the machine powered ON.
NOTE: Ensure machine is idle before opening the Front Cover.
1
2
3
4

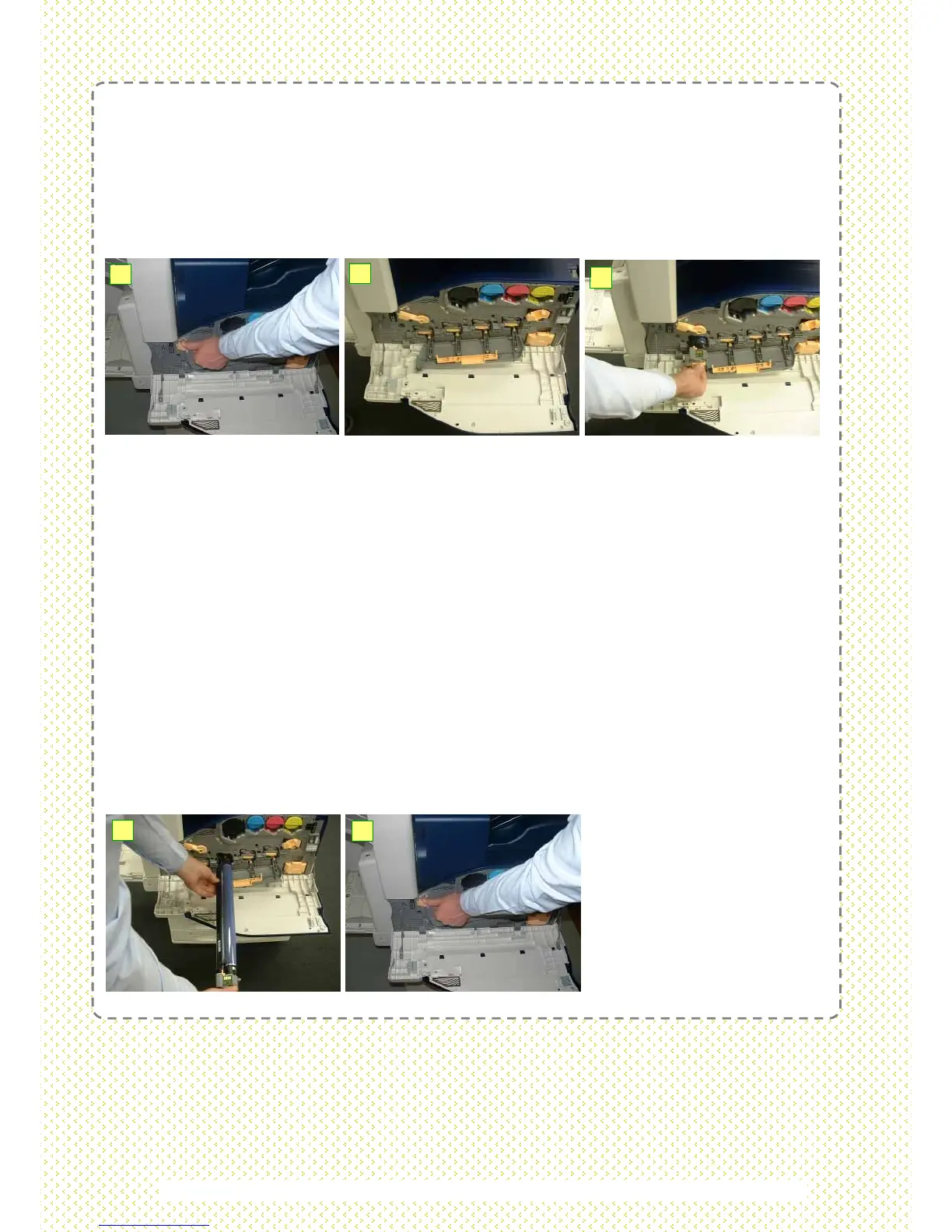

1: Remove the new Drum Cartridge from the box and place it on a flat surface near the
machine. Do not place the Drum Cartridge upright. Open the Front Cover. Grasp the
Orange handle ‘R9’ and rotate it to the left to unlock.
2: Pull down the handle to open the Drum Cartridge Cover and access the four cartridges.
3: Gently pull out Drum Cartridge as indicated on the Touch Screen, by lifting and pulling
cartridge handle.
4: Place used Drum Cartridge into polythene bag supplied in the package.
5: Grasp new Drum Cartridge, (with protective cover), insert the end of cartridge into the
machine up to the arrow mark. Remove seal from the top of the Cartridge.
6: Gently push Drum Cartridge in by sliding the colored tab on top of the cartridge
towards the machine. Put the protective cover into the box.
7: Lift up the Drum Cartridge Cover to lock the Drum Cartridge. Rotate the Orange
handle ‘R9’ to the right to the to lock the cover in place.
8: Close the Front Cover.
5
For used cartridges disposal, please call us @ 1-300-88-1163 for collection.
