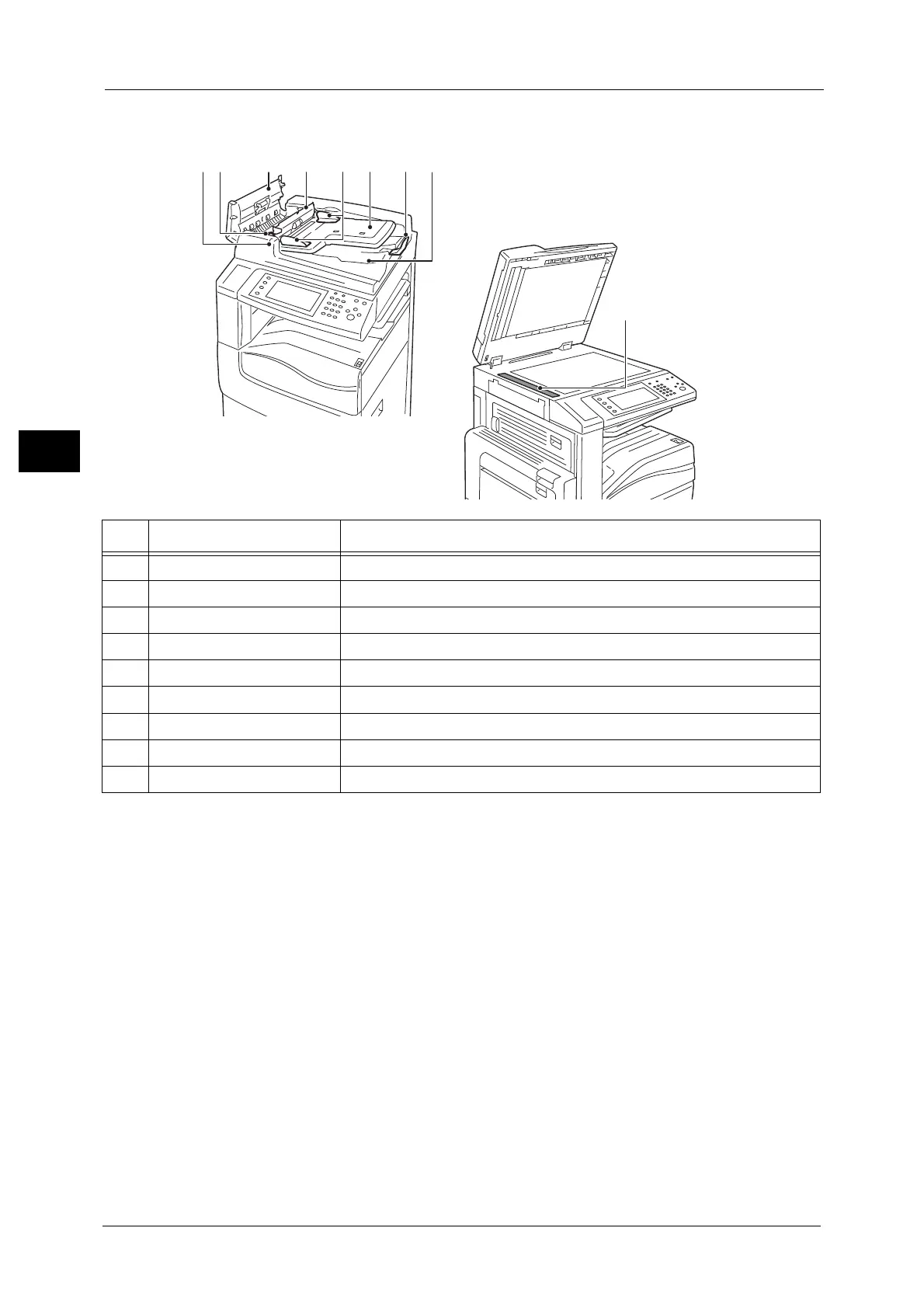

Product Overview
2
Duplex automatic document feeder
Note •In this guide, the duplex automatic document feeder is referred to as the “document feeder” or
"DADF".
7
12 3 5
6
8
4
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Lever Turn this lever to clear paper jams.
3 Left cover Open this cover to clear paper jams.
4 Inner cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document stopper Prevents outputs from falling off.
8 Document output tray Scanned documents are delivered here.
9 Document glass Scans a loaded document.
