Machine Components
49
Product Overview
2
Note • The Finisher D2-P with Booklet Maker is optional. In this guide, the Finisher D2-P with
Booklet Maker is referred to as the "finisher".

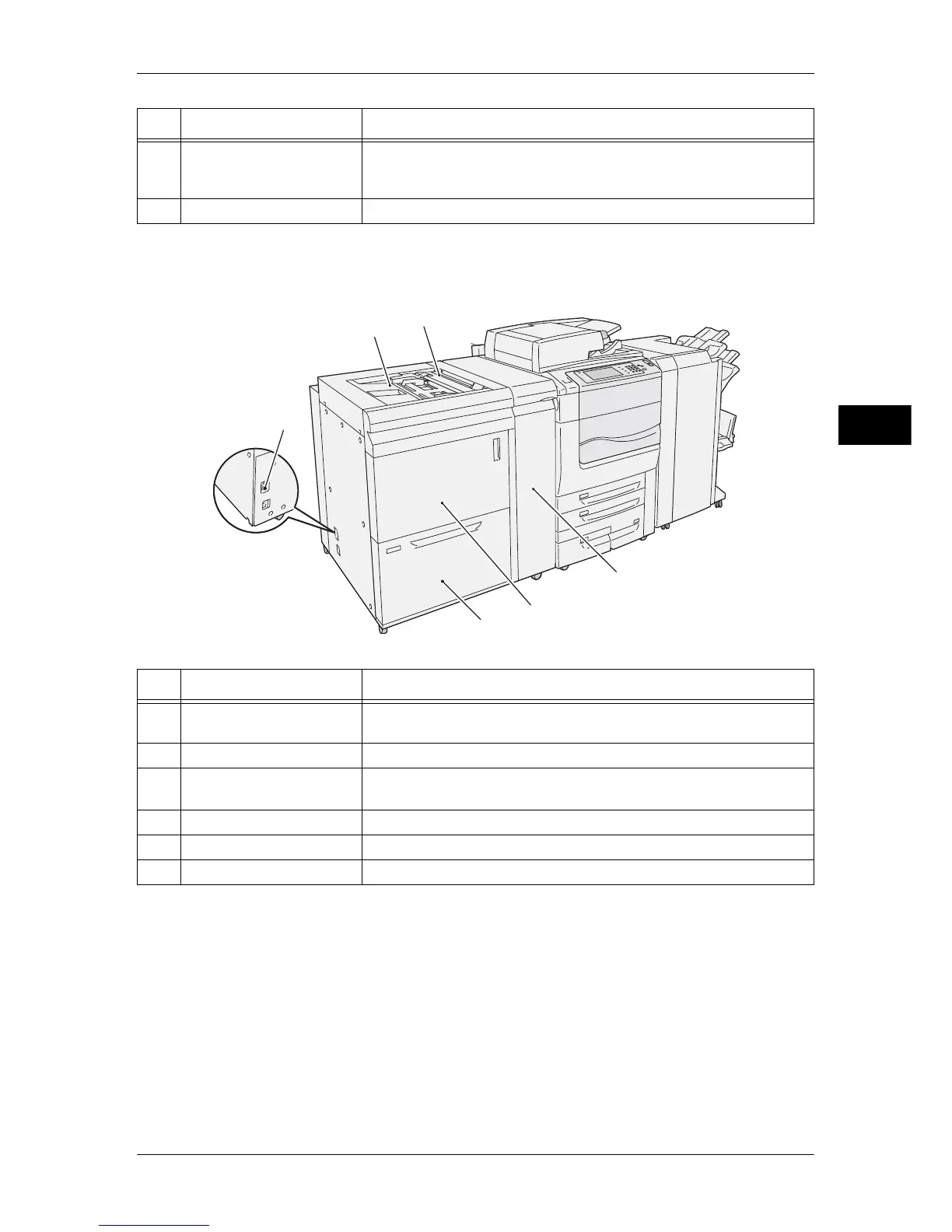

îš„HCF B1-S (optional)
14 Folder Output Tray button
(Only available when the
D2 Folder Unit is installed.)
Press this button to open the Folder Output Tray.
15 Left cover Open this cover to access the inside of the machine to clear paper jams.
No. Component Function
1 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other
special media) that cannot be loaded in the Trays 1 to 4, and 6.
2 Tray 5 (Bypass) top cover Open the top cover to clear paper jams.
3 Paper feed section cover Open the cover to clear paper jams. This unit conveys papers supplied
from the tray 6 or the tray 5 (bypass) to the machine.
4 Consumable storage space Store consumables and paper here.
5 Paper tray 6 Load paper here.
6 Ground fault interrupter Automatically turns the machine off when a current leakage is detected.
No. Component Function
1
2
3
4
5
6
