Machine Components
43
Product Overview
2

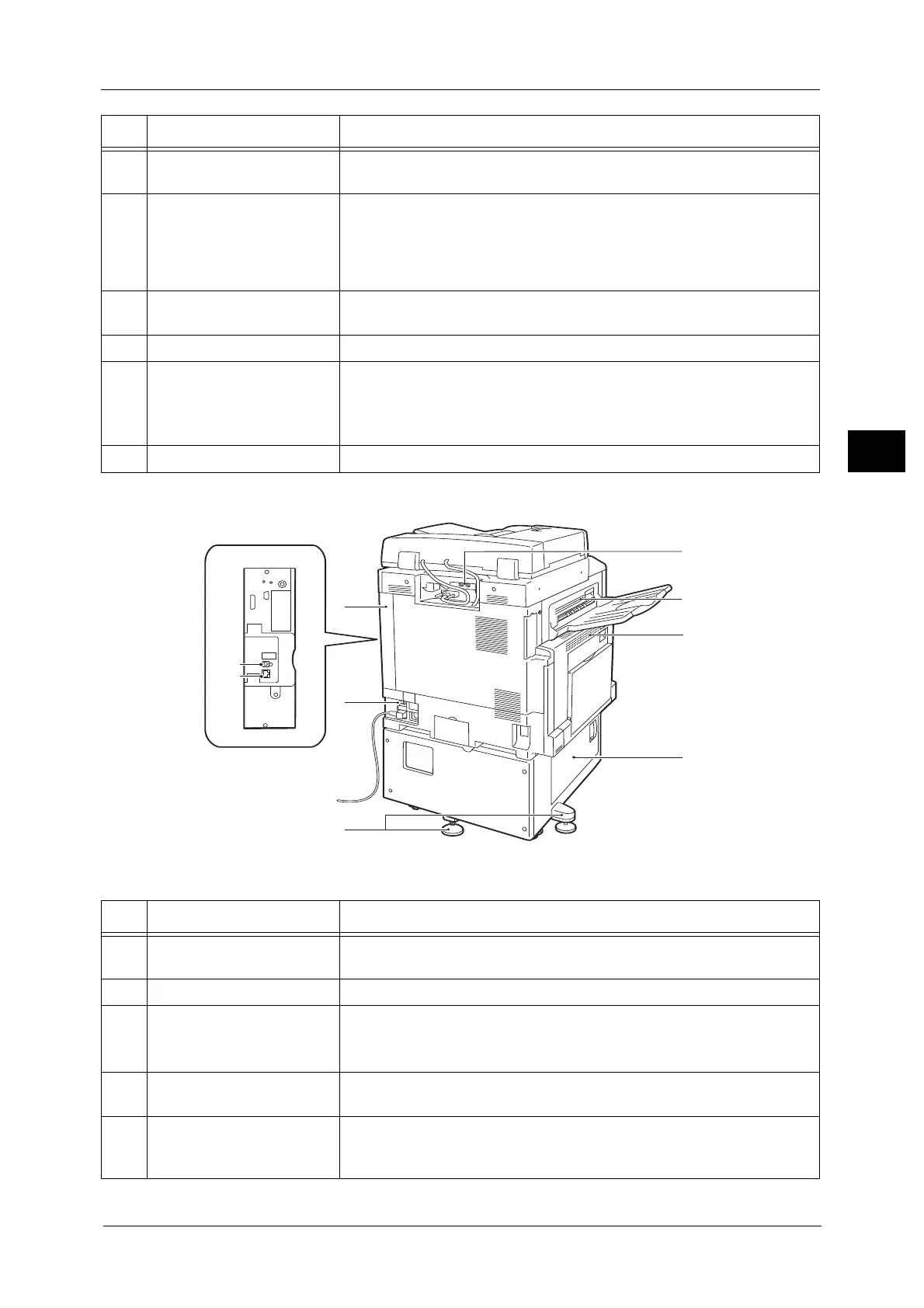

îš„ Left side and rear views of the machine
13 Smart WelcomEyes (SWE)
pyroelectric sensor
The SWE pyroelectric sensor works consistently, and when it detects human
presence in the detectable area, the SWE reflection sensor starts working.
14 Smart WelcomEyes (SWE)
reflection sensor
When the SWE pyroelectric sensor detects human presence, the SWE
reflection sensor starts working, and when it also detects human presence,
the machine exits the Energy Saver mode.
While the SWE reflection sensor detects human presence, the machine will
neither reset the settings automatically nor enter the Energy Saver mode.
15 Smart WelcomEyes (SWE)
Access Lamp
The Access Lamp lights up while the SWE reflection sensor detects human
presence.
16 Side tray (optional) Copies and prints are delivered here, facing up.
17 Stylus pen Used for touching the touch screen on the control panel to configure
settings.
Note • You can directly touch the touch screen not only with the stylus pen but
also with a finger.
18 Stylus pen holder Stores the stylus pen.
No. Component Function
No. Component Function
1 USB 2.0 interface connector
(optional)
Connects to the cable of the Memory Card Reader or a USB memory device.
2 Top left cover Open this cover to clear paper jams.
3 Upper left cover Open this cover by pressing the release lever to clear paper jams.
Note • Before you open the upper left cover, exit the Sleep Mode and then
switch off the machine.
4 Bottom left cover Open this cover to clear paper jams.When Tray 6 is installed, open this cover
after moving Tray 6 to the left.
5 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in clockwise direction until it
touches a floor.
