Fuji Xerox DocuCentre-IV C5575 User Manual

2 Product Overview
42
Product Overview
2
Machine Components

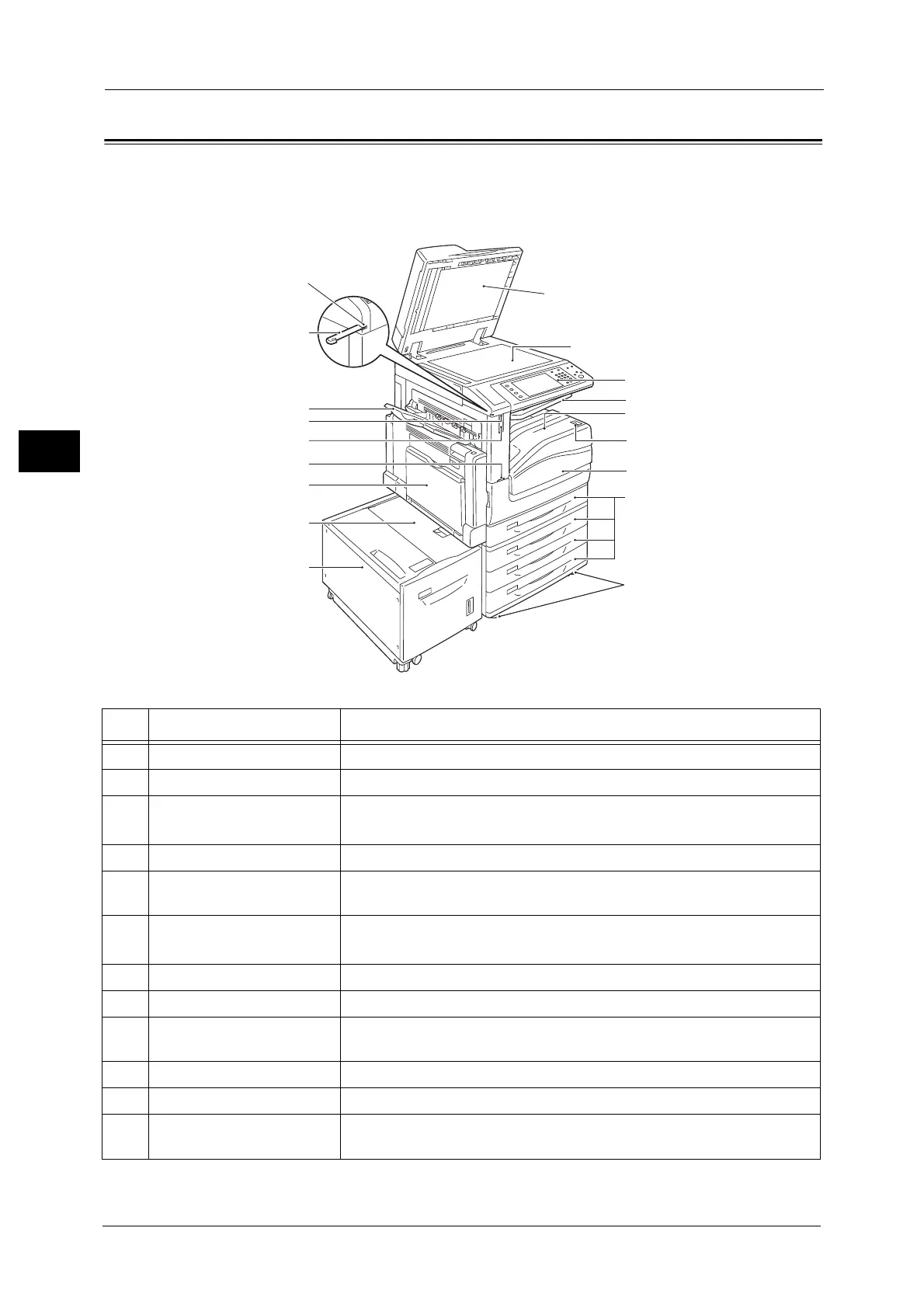

The following describes machine components and their functions.
 4 Tray Model and HCF B1
5
6
7
8
9
12
13
14
1
3
4
2
16
17
10
11
18
15
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Control panel Consists of operation buttons, LED indicators, and the touch screen.
Refer to "Control Panel" (P.61).
4 Exit 2 Tray Outputs are delivered here by separating the center tray into two levels.
5Lower Center tray (Output
tray)
Copies and prints are delivered here, facing down.
6 Power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.52).
7 Front cover Open this cover to replace the consumables.
8 Tray 1, Tray 2-4 (optional) Load paper here.
9 Locking casters Used for locking the wheels of the machine. Lock these casters after moving
the machine to its installation site.
10 Tray 6 (HCF B1) (optional) Load paper here.
11 Tray 6 top cover Open this cover to clear paper jams after moving Tray 6 to the left.
12 Tray 5 Used for loading non-standard paper, such as thick-stock paper and other
special media, that cannot be loaded in Trays 1 to 4.

Fuji Xerox DocuCentre-IV C5575 Specifications

General

Print Resolution	1200 x 2400 dpi
Duplex Printing	Yes
Functions	Print, Copy, Scan, Fax
Type	Color Laser Multifunction Printer
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 kbps
Max Paper Size	A3
Print Speed (Black/Color)	55 ppm / 50 ppm
Connectivity	Ethernet, USB
Monthly Duty Cycle	300, 000 pages
Paper Size	A3, A4, A5, B4, B5
Copy Speed (Black/Color)	55 cpm / 50 cpm
Operating System Compatibility	Windows, Mac, Linux
