2.1 Main Components and Functions
Main Unit

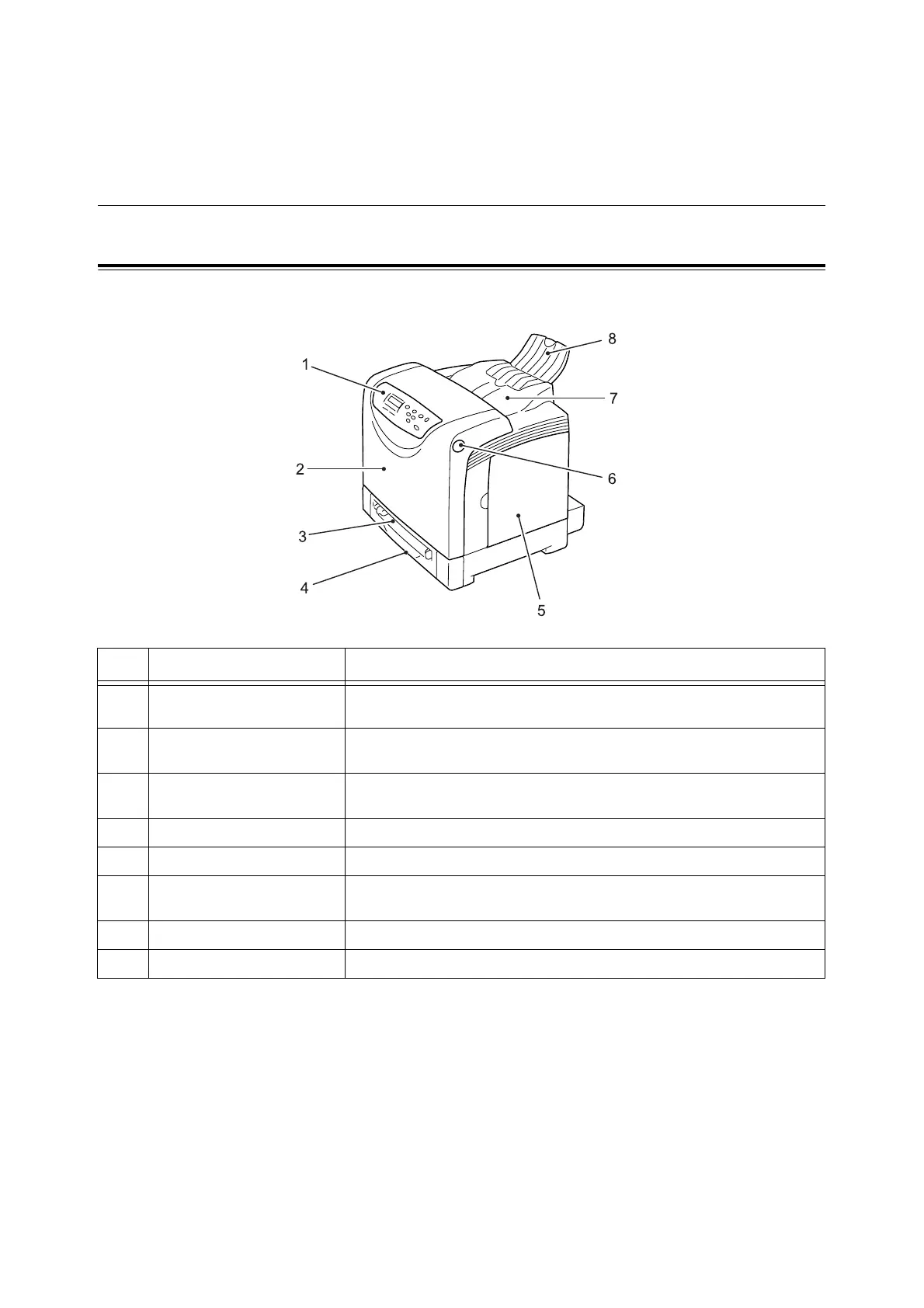

Front View
No. Name Description
1 Control panel Consists of the control buttons, indicator lamps, and a display. For details, refer
to "Control Panel" (P. 34).
2 Front cover Opened when replacing consumables such as the drum cartridge or clearing
paper jams. This can be opened using the side button.
3 Manual feeder Load paper here when printing using the manual feeder. Manually insert one
sheet of paper at a time into the manual feeder.
4 Tray 1 Load paper here.
5 Side cover Opened when replacing the toner cartridges.
6 Side button Press this button to open the front cover when replacing consumables such as
the drum cartridge or clearing paper jams.
7 Output tray The printed output is delivered here face down.
8 Output tray extension Extended to prevent output from falling off from the output tray.
