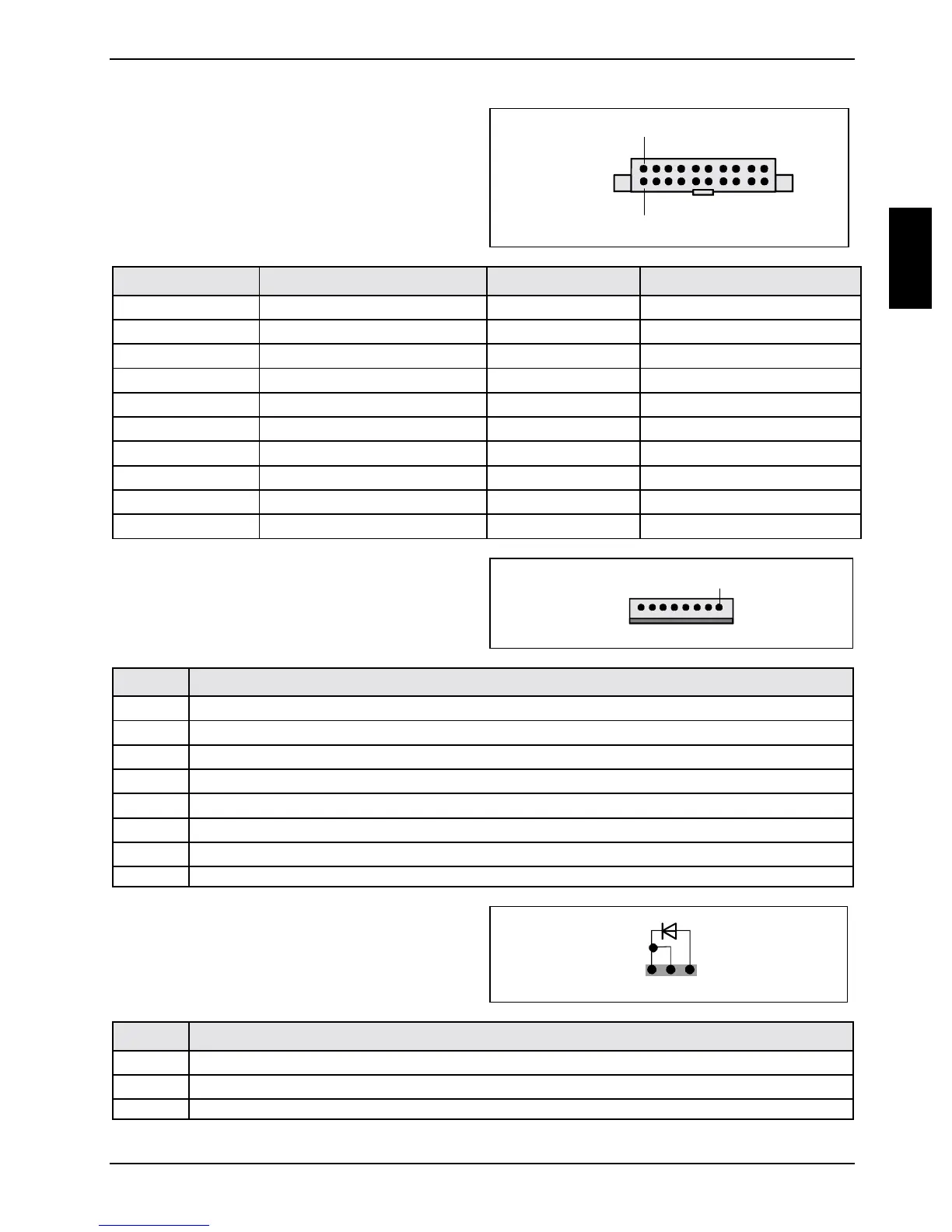

Pin assignment of internal ports
A26361-D1527-Z120-1-6319 English - 11
Stromversorgung ATX /
Power supply ATX
1
11
Pin Signal Pin Signal
1 +3.3 V(P3V3P) 11 +3.3 V(P3V3P)
2 +3.3 V(P3V3P) 12 -12 V (P12VN)
3GND13GND
4 +5 V (VCC) 14 PS on (low asserted)
5GND15GND
6 +5 V (VCC) 16 GND
7GND17GND
8 Powergood (high asserted) 18 -5 V (P5VN)
9 +5 V Auxiliary (VCC Aux) 19 +5 V (VCC)
10 +12 V (P12VP) 20 +5 V (VCC)
Stromversorgungsüberwachung /
Power control (system monitoring)
1
Pin Signal
1 AC Outlet (high asserted)
2 PS FAN Control (PS FAN C max. 3 mA)
3 Reserved
4 PS FAN Sense
5SMB CLK
6SMB DATA
7 VCC EEPROM (+3.3 V)
8GND
Power On LED II
1
3
Pin Signal
1 Power On LED (Anode)
2 Power On LED (Anode)
3 Power On LED (Cathode)
