Fujitsu Siemens Computers D1527 User Manual

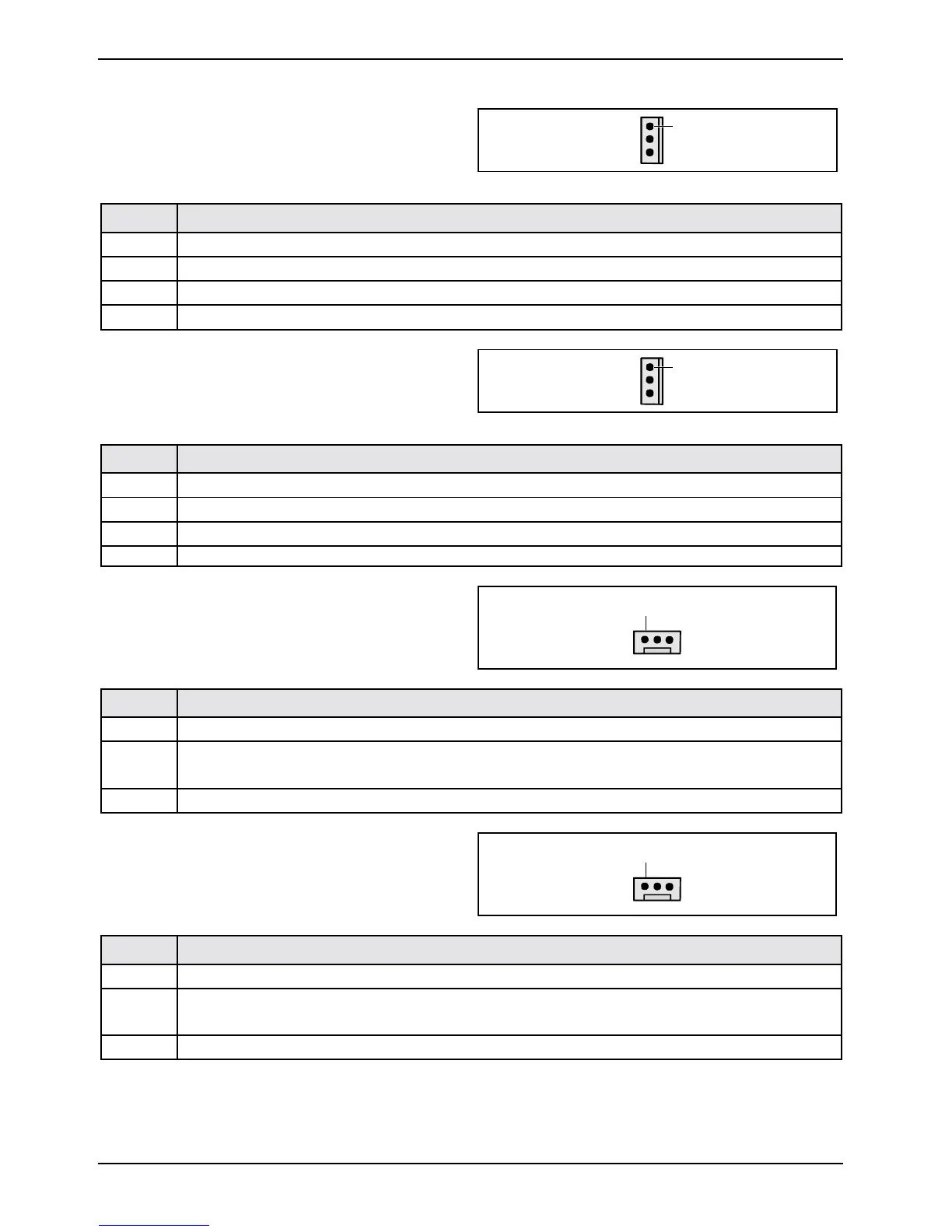

Pin assignment of internal ports
12 - English A26361-D1527-Z120-1-6319
SMB
1
Pin Signal
1 P3V3P_DUAL
2 SMB_CLK_DUAL_H
3 SMB_DATA_DUAL_H
4GND
BMC SMB
1
Pin Signal
1 P3V3P_DUAL
2 SMB_PIC_CLK_H
3 SMB_PIC_DATA_H
4GND
Lüfter 1 / Fan 1
(system fan - supervised)
1
Pin Signal
1GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
Lüfter 2 / Fan 2
(system fan - supervised)
1
Pin Signal
1GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
