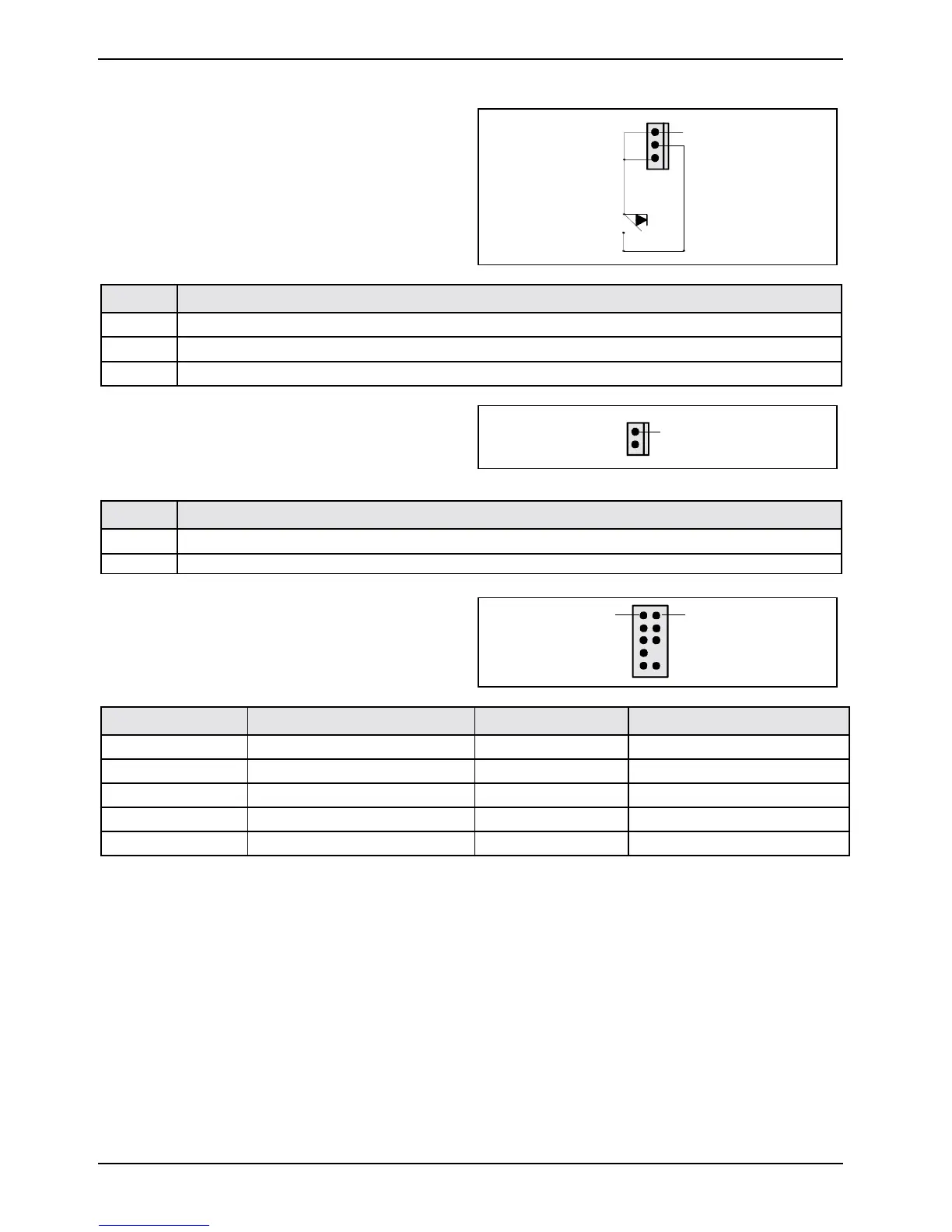

Pin assignment of internal ports
14 - English A26361-D1527-Z120-1-6319
Gehäuseüberwachung / Intrusion
for case open detect for optional push-button
(opener)
1
Pin Signal
1GND
2 Case open (low asserted)
3 Intrusion switch present (low asserted)
Audio S/PDIF
1
Pin Signal
1GND
2 SPDIF out
Audio Bedienfeld / Audio front panel
1 2
Pin Signal Pin Signal
1 Micro input 2 Analog GND
3 Micro bias 4 Analog VCC
5 Right line output 6 Right line return
7NC 8Key
9 Left line output 10 Left line return
