Fujitsu Siemens Computers D1931 - Übersicht;Overview Mainboard D1931

A26361-D1931-Z120-1-7419 Umschlag/Cover

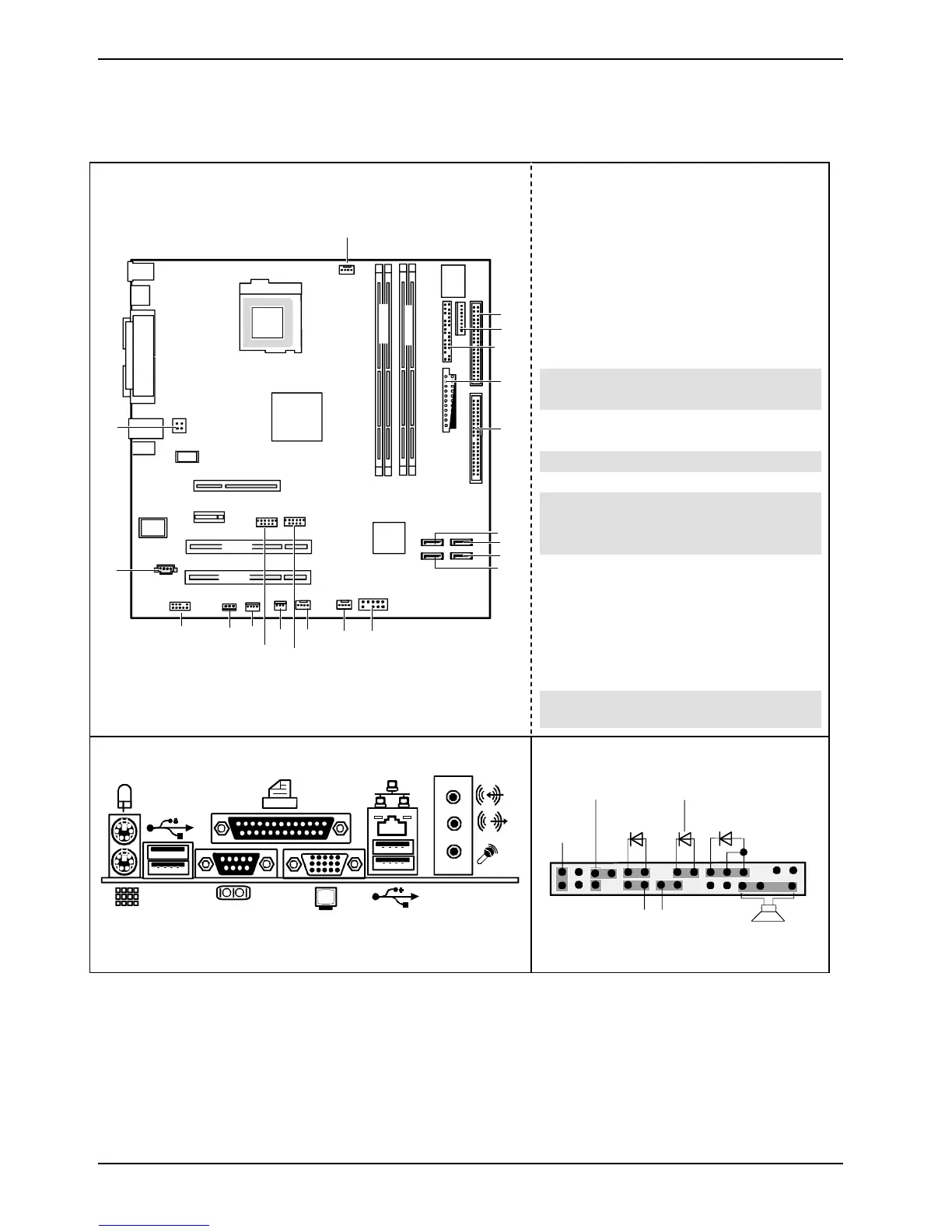

Übersicht/Overview Mainboard D1931
Interne Anschlüsse und Steckplätze /
Internal connectors and slots
PCI 2
PCI 1
slot 1 slot 3 slot 4 slot 2
Channel B
Channel A
5
8
12
6
9
10
11
15
16
13
17
19
18
20
21
7
14
PCI Express x16
PCI Express x1
1
2
3
4
1 =
Diskettenlaufwerk / Floppy disk drive
2 = Stromversorgungsüberwachung /
Power supply control
3 = Bedienfeld / Front panel
4 = Stromversorgung / Power supply
5 = IDE-Laufwerke 1/2 / IDE-drives 1/2
6 = Serial ATA3
7 = Serial ATA4
8 = Serial ATA2
9 = Serial ATA1
10 = LCD-Anzeige / LCD Display
11 = Lüfter 3 / Fan 3
12 = Lüfter 2 / Fan 2
13 = USB
14 = Gehäuseüberwachung / Intrusion
15 = USB
16 = SMB
17 = S/PDIF-Anschluss / S/PDIF
connector
18 = Audio-Anschlüsse Vorderseite /
Audio port front
19 = Audio in
20 = Zusätzliche-Stromversorgung /
additional power supply
21 = Lüfter 1 / Fan 1
Optionale Komponenten /
Optional components
Externe Anschlüsse / External connectors
Bedienfeld / Front panel
1) Both connector positions possible
2) 2pin or 3pin connector possible
1
2
HD-LED
Power On/Off
Recovery Password
1)
Reset
Power On
LED
2)
Message LED
Speaker
